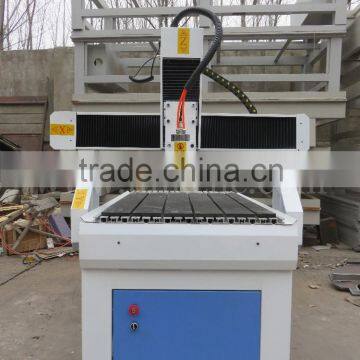

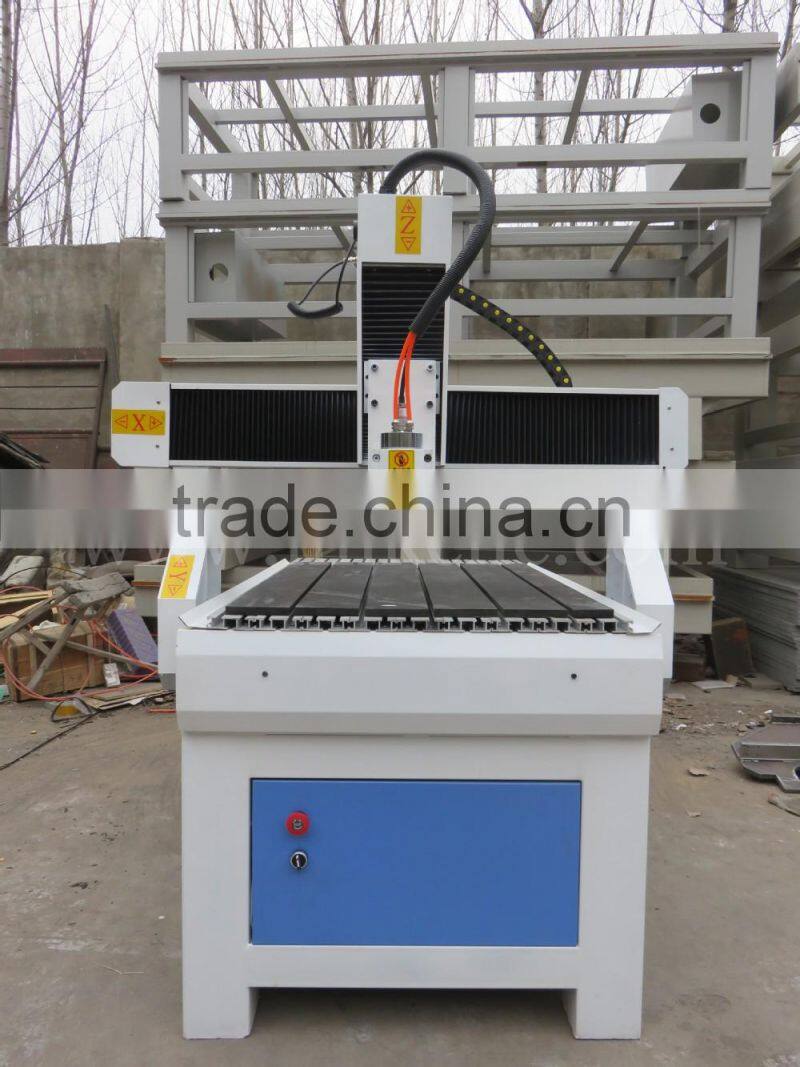

Jinan LINK Cnc Router Kit 0609&mini 3d Cnc Router LXM0609

Machine features

1). 1.5kw water cooling spindle,0-24000rpm, powerful in use. 2.2kw/3kw is optional.

2). Nc-studio control, USB interface, very fast in transferring data. (DSP control/mach 3 is optional)

3).Taiwan TBI ball screw transmission for X,Y,Z axis, can ensure highest precision of machine.

4).The frame is made of cast iron, making it very stable without deformation for a long time.

Technical parameters

Machine parts

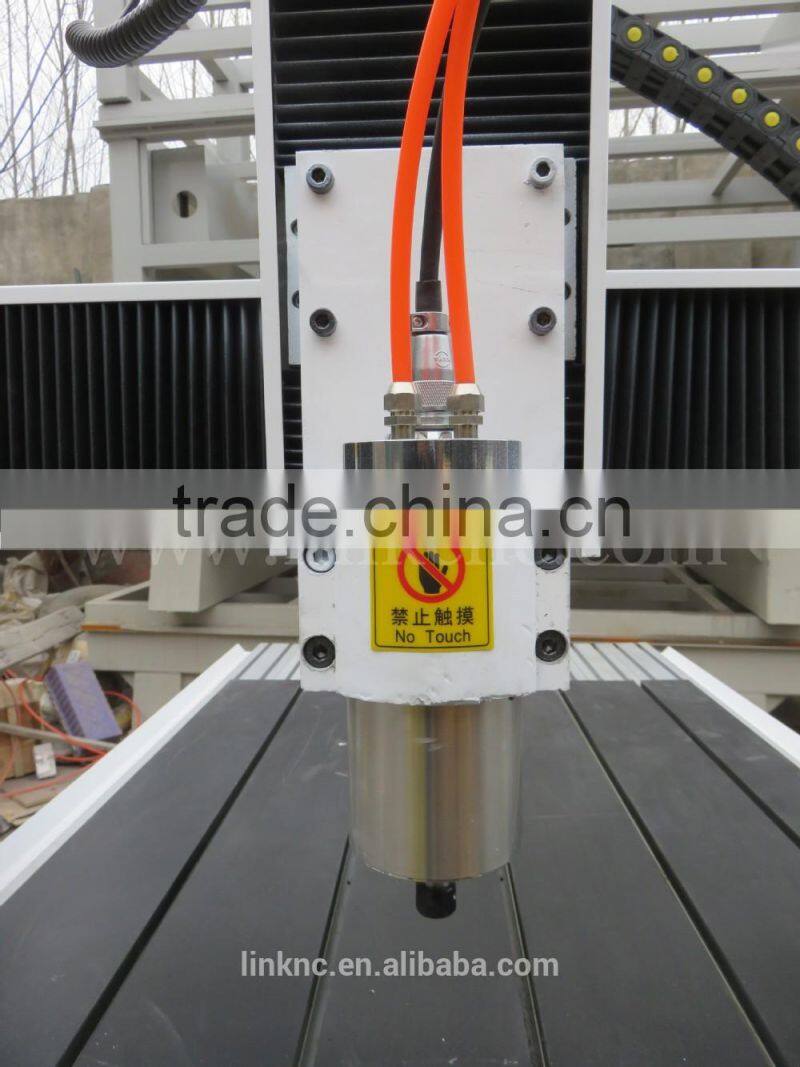

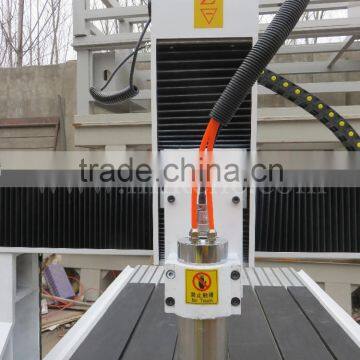

Spindle      1.5KW Chinese top water cooling spindle. It ensure high working speed and accuracy  with low noise.And it engraves without any  ripple but with smooth bottom level and  clear outline.

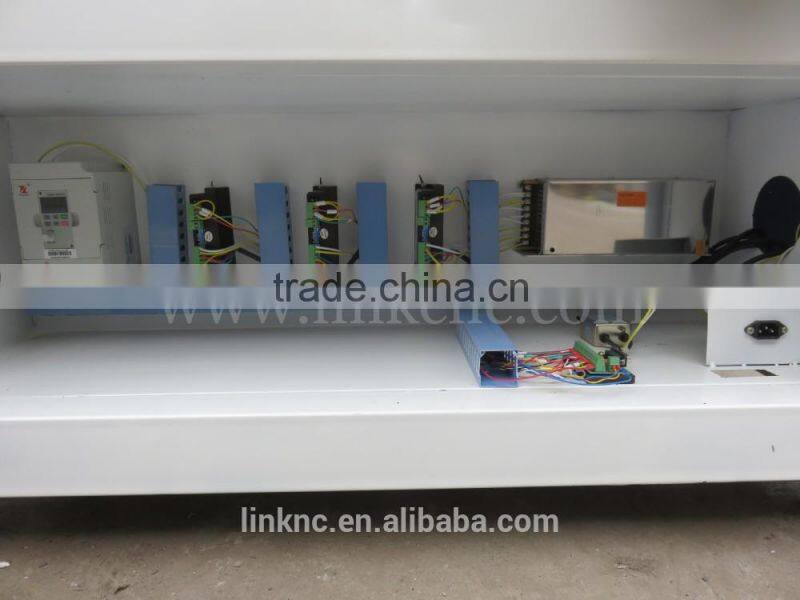

Control box       includingFuling inverter, driver,  transformer, fliter, circuit and so on.

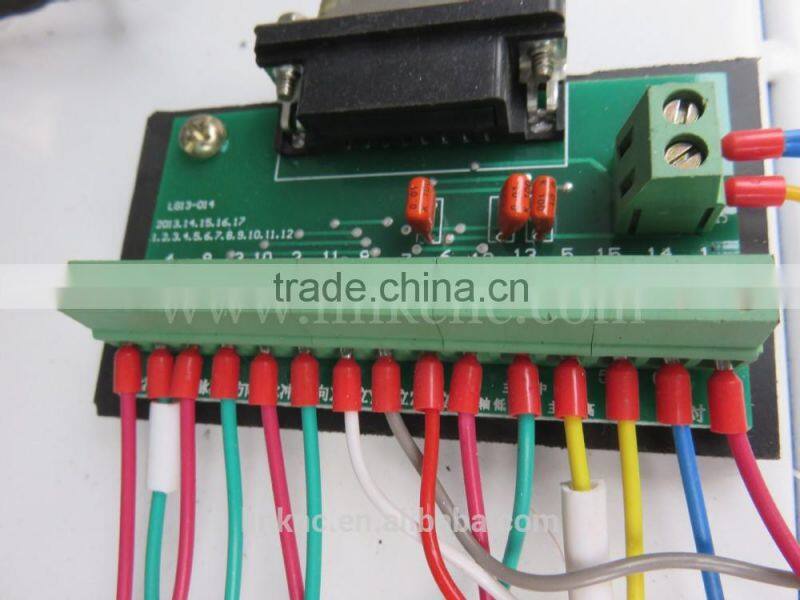

Circuit      The circuit is in good order.

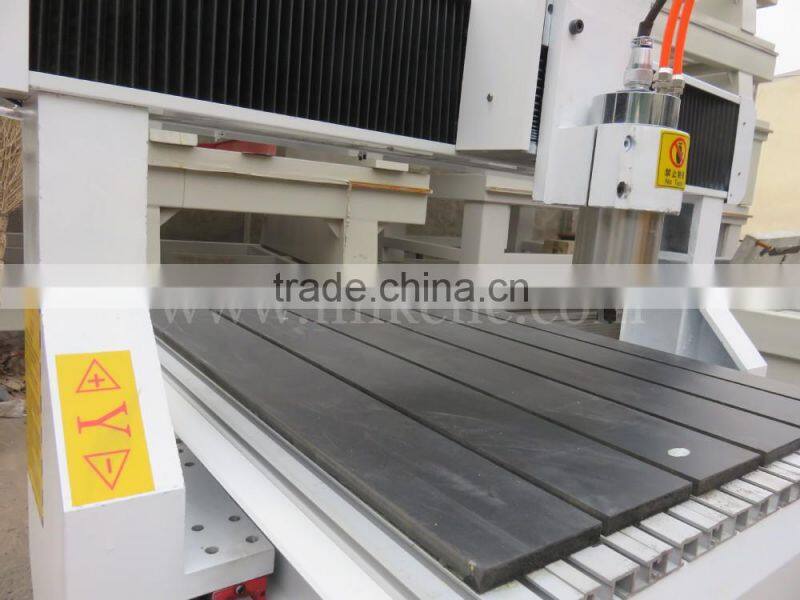

T-slot structure      According to customers' need, it can be  changed to vacuum table.

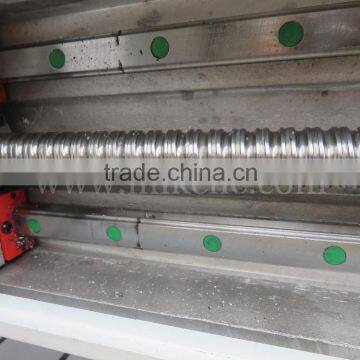

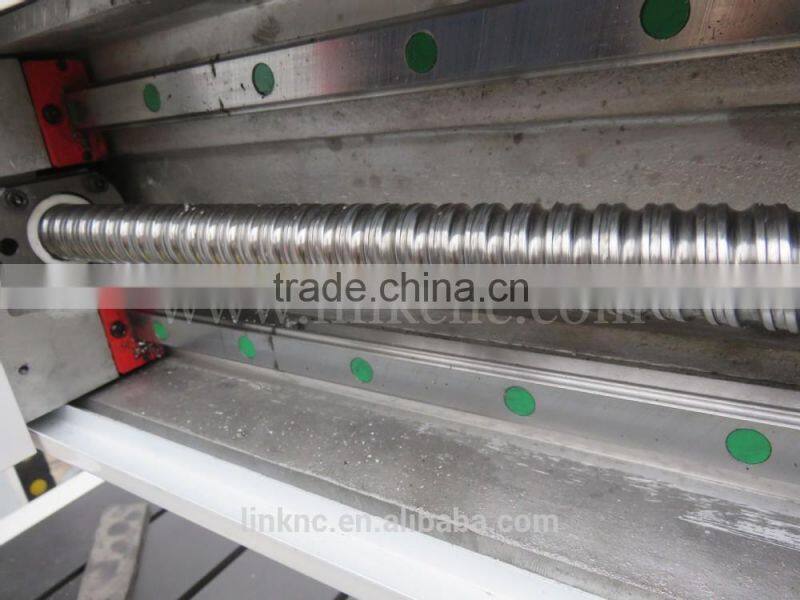

Rails and ball screw Taiwan HIWIN rails:imported from Taiwan  with biggest capacity. the advantages: 1) high precision   2) high speed   3)bear the load from left and right/up and  down at the same time   TBI ball screw the advantages: 1).High sensitivity.  2).High positioning accuracy.   3).Long service life.
Note:All the pars of machine can do some changes to meet your requirements ,such as the motor (step motor or servo motor ), spindle (air cooled or water-cooled ), inverter(DELTA or FULING) and the table of the machine also can be customized and so on.

Applications

Advertising signs, acrylic high speed cutting, plastic molding, industrial processing, industrial wire cutting, die industry, wooden toy industry, can engrave carvings, reliefs, marble carving, craft gift industry, furniture manufacturing, building sand table model, decoration industry, PCB production, seal, etc.

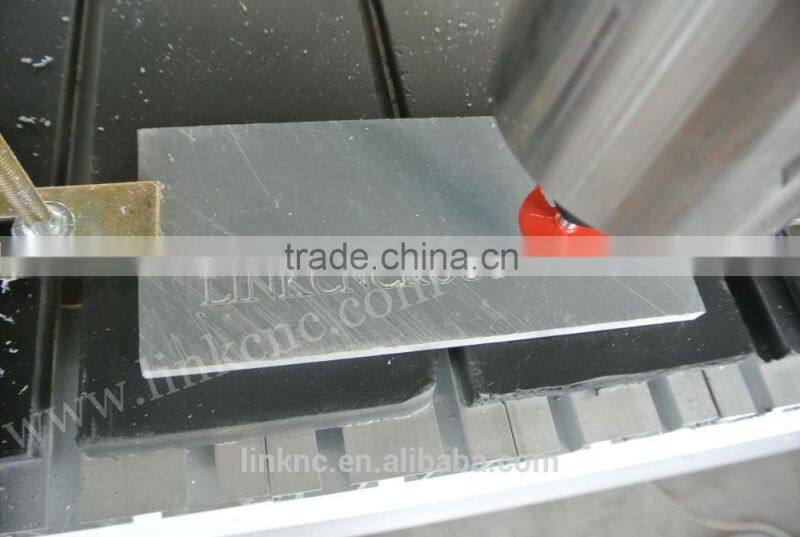

Samples

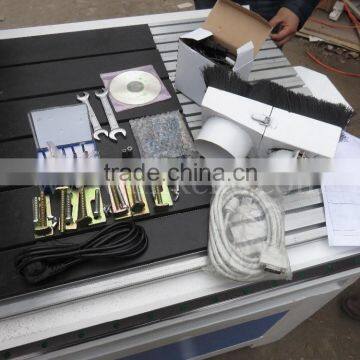

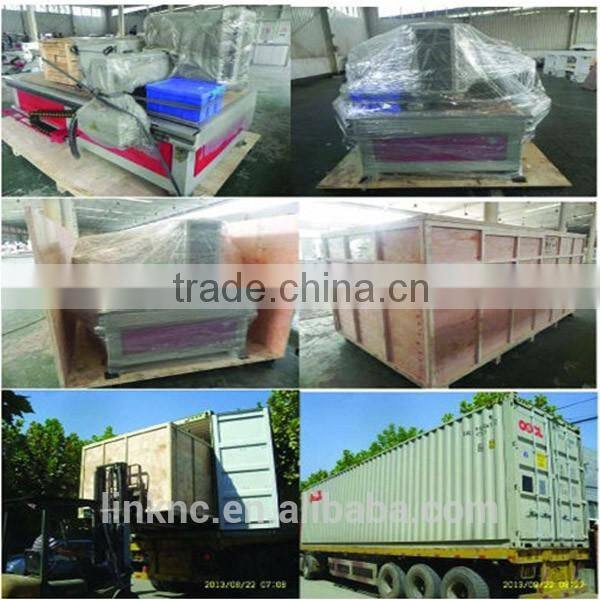

The package and shippment

 Within 7-12 working days after receiving payment.

 •For standard machines, it would be 7-12 working days;

 •For non-standard machines and customized machines according to our clients' specific requirements, it would be 12 to 21 working days.

After sale service

1.Two years quality guaranty,the machine with main parts shall be changed free of charge when if any problem during the warrnty period.

2. Lifetime maintenance free of charge.

3. Free training course at our plant.

4. 24 hours on line service each day, free technical support.

5. Machine has been adjusted before delivery.

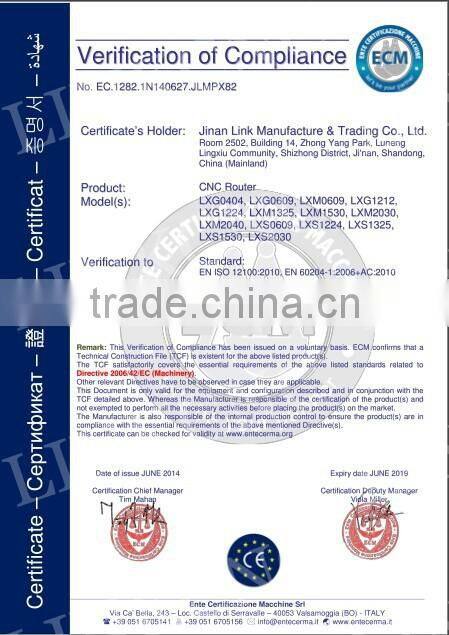

Our cetificate

Our factory

Our customers

1) This is the first time I use this kind of machine, is it easy to operate?
    There is English manual or guide video that show you how to use our cnc router. If you still have any question, please contact us by phone/ e-mail / Skype/ online service.

2) How can I buy this machine from you? ( Very easy and flexible)
    A. Consult us about this product on line or by e-mail.
    B. Negotiate and confirm the final price , shipping , payment methods and other terms.
    C. Send you the proforma invoice and confirm your order.
    D. Make the payment according to the method put on proforma invoice.
    E. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.
    F.Send your order by air or by sea.

If you have any questions,please contace me, I will give you answers at once.
