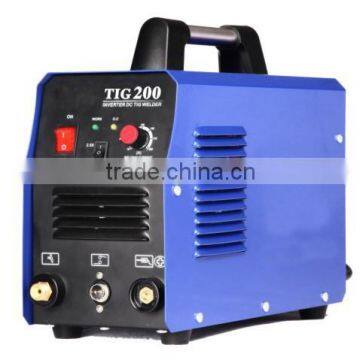

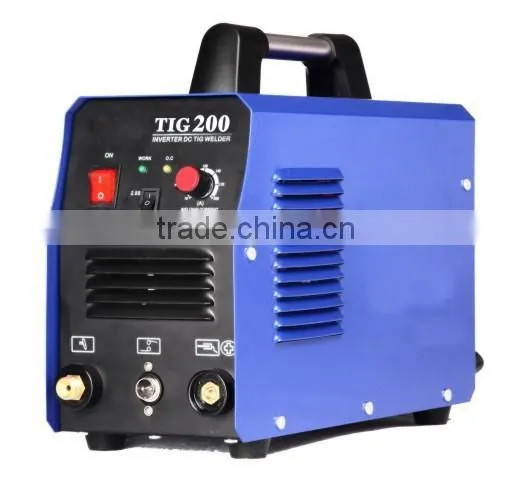

Help CenterTIG 200 Portable Inverter Welding Machine Inverter Welder Manual Type
Related Products
-
MIG 630I Electric Portable Welding MachineUS$ 950 - 1,100MOQ: 10 Pieces -
MIG 500I Electric Portable Welding Machine Inverter Welder Manual TypeUS$ 850 - 950MOQ: 10 Pieces
-
MIG 400I Electric Portable Welding Machine Inverter Welder Manual TypeUS$ 660 - 720MOQ: 10 Pieces
-
MIG 400G Electric Portable Inverter Welding MachineUS$ 650 - 700MOQ: 10 Pieces
-
MIG 315G Interver Welding Machine Electric WelderUS$ 560 - 600MOQ: 10 Pieces
TIG welding is short for Tungsten Inert Gas arc Weiding , it is usually used on stainless steel of 0.5mm to 4mm, the heat source of TIG welding is DC arc, working voltage around 10 to 15 V, but the current can be as high as 300 A.
When working, TIG welding machine takes the workpiece as the positive pole and takes the tungsten electrode on welding torch as its negetive pole, the inert gas usually be Ar, it has good performance on thin workpieces.
| Input Volatge (V) | AC220V±15% |
| Frequency (Hz) | 50/60Hz |
| Rated Input Current (A) | 32.2/19.3 |
| No-load Voltage (V) | 56 |
| Output Current Range (A) | 10-200A |
| Rated Output Voltage (V) | 28/18 |
| Duty Cycle (%) | 60 |
| No-load Loss (W) | 40 |
| Efficiency (%) | 85 |
| Power Factor | 0.93 |
| Insulation Grade | F |
| Housing Protection Grade | IP21S |
| Net weight ( Kg) | 9 |
- 12 months warranty
- Any after sale questions will be replied in 24 hours
- Free installing and operating train
Zhangzhou Honghui Electronic Equipment Development co.,ltd Is a professional specializing in inverter dc welding and cutting equipment D&R, production, and sales of large welding equipment enterprises. The company's core team has nearly 30 years of experience in welding, focusing on various metal welding machinery development, design, and the introduction of german's the most advanced welding technology and production processes, continuously introduce advanced technologym, high cost perfermance of welding equipment.
By gaining the certificate requirements of the ISO 9001:2000, our company has well developed a full range of products which have been certified with the CE,CCC certifcates by the authority organization. The Products consist of ten series, which over 100 models in total:
Inverter MMA Welder Series
Inverter TIG DC Welder Series
Inverter MMA/TIG Welder Series
Inverter TIG AC/DC Welder Series
Inverter MIG Full Function Welder Series
Plasma Cutting Series
Inverter MIG/MAG Welder Series
Inverter IGBT TUBE MIG/MAG Welder Series
