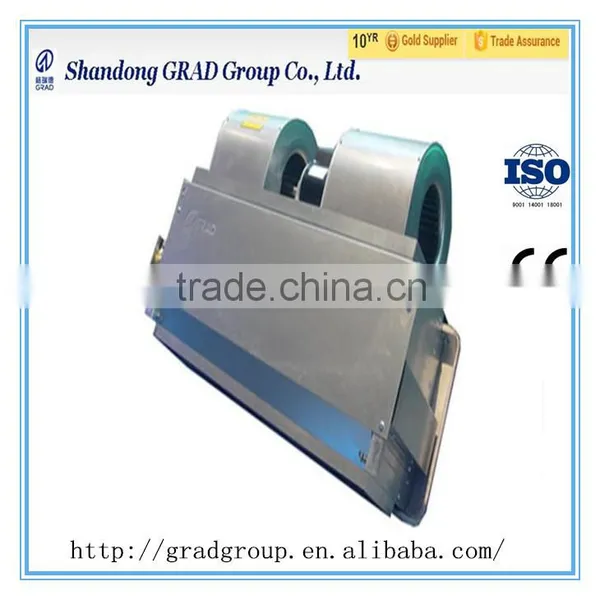

GRAD hidden fan coil

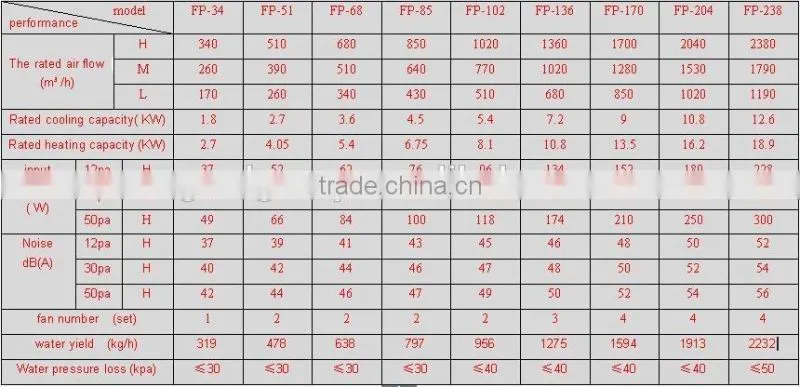

speficications
ducted type fan coil
air volume=170-2380m3/h
The rated cooling capacity =1.8-12.6KW
The rated heating capacity=2.7-18.9KW
The input power=37-300Pa
characteristic
1. fan
Our fans are made by international professional fan manufacture with stable quality and reliable character with routine dynamic balance precise debug. Fan runs stably and quietly.
2. Water collection tray
Adopt high class panel,with plastic sprayed on the surface,therefore it is smooth and shiny.Use one-off pressed forming technique,there is no welding line and point deal with heat preservation to assure the tray flat and compact avoiding quadratic leakage. Sloping design of bidirectional air guide outlet, expedite the condensate is flow speed, no exist water, therefore, reducing the breeding ratio of bacteria. Outsize condensate tray design prevents coil and water pipe inlet and outlet joints from leak.
3. Heat exchanger
High quality purple copper, with high diathermanous efficiency, tenacity and rigidity characteristic to bear high hydraulic pressure especially, suits super high building use. Distance of fins is improved by computer emulation optimum design with experimental feedback, supply sufficient heat exchange area, smooth airflow and high efficient heat exchange.
4.Air return box is optional, which can ease installation, reducing construction cost.
5. Integrated models
Integrated model range airflow varies from 340~2380 m3/h including nine models.
6.High efficiency
Adopt high efficient heat exchanger and huge airflow centrifugal fan enhances unit diathermanous effect.The performance of the three rows of tube type high efficiency fan coil can reach the international advanced level.
7.Flexible installation
Symmetrical design allows you to change the water flow direction according to you actual needs during installation
Structures and specification

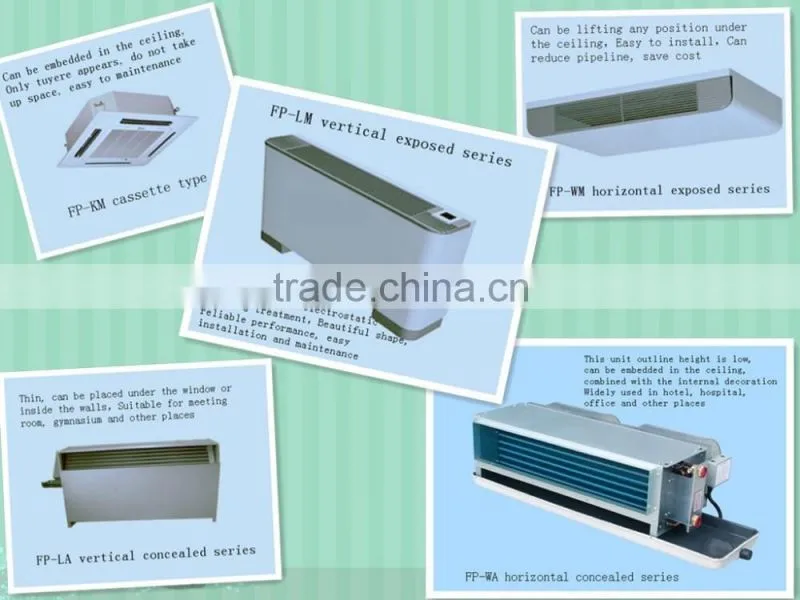

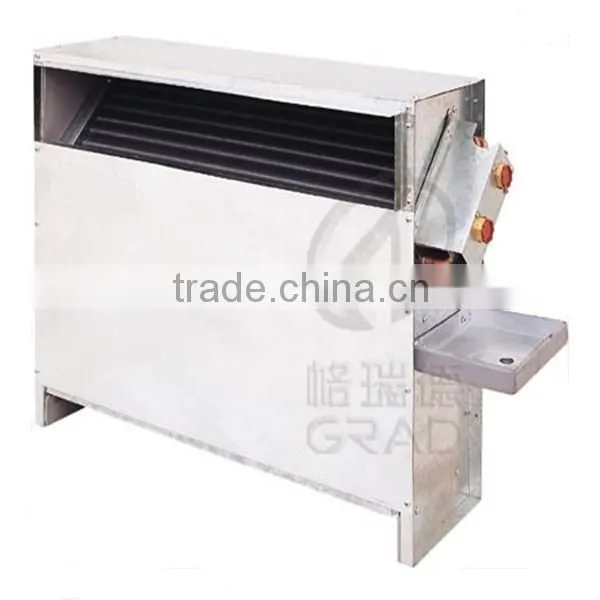

1.There are five kinds of fan coil according to different structures,horizontal concealed,horizontal exposed,vertical concealed,vertical exposed and cassette.
2.There are different models to meet clients’ requirements according to different air volume and cooling capacity.
Application
GRAD fan coil units are widely used in hotels,restaurants,factories,hospitals,exhibitions,shopping malls and office buildings.
Workshop
Usually we use plywood package or naked package. Some of the products like fan coil unit or table tennis board have standard carton package. The shipping terms are LCL, 20’ container, 40’ container
Before-sale services:
(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
In-Sale services:
(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
After-sale services:
(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers installation video to teach them how to fix and operate with
our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation. within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with
the customer's two-way communication.
GRAD sincerely welcome all friends visit
