Product Details
Place of Origin: | Shandong, China | Brand Name: | GRAD, GRAD | Model Number: | FP-WA-102, FP-WA-102 |
Type: | Other, Air Conditioning, Fan Coil Unit |
Product Description

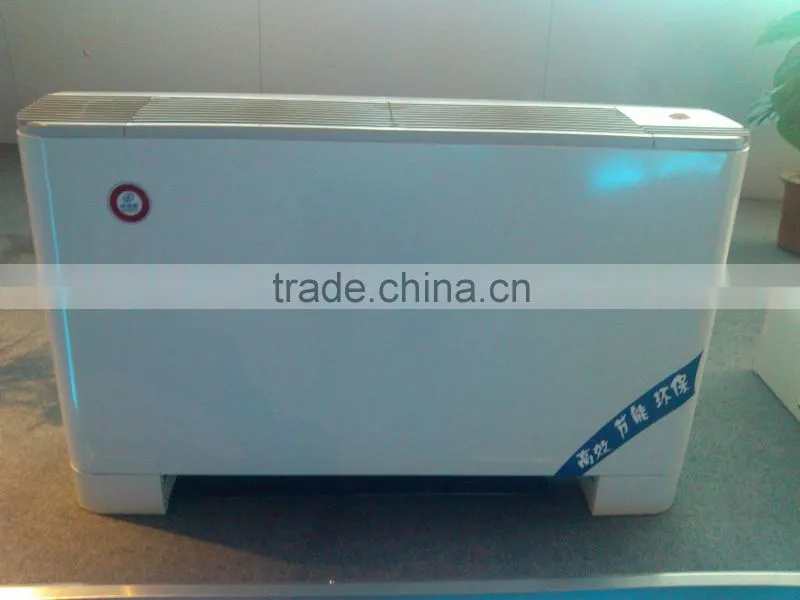

GRAD low noise ceiling floor fan coil unit
This unit adumbration is very lower,it can add to the ceiling ideally,with interior decoration,equipped with outlets,it is good for the hotels,restaurants,offices,ideal air -conditioning equipments.

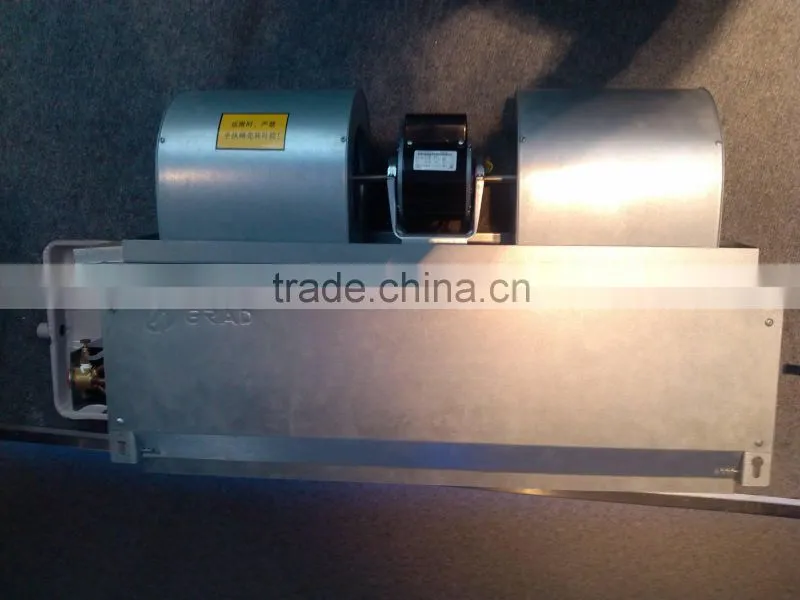

Fan coil unit mainly consists of centrifugal fan and coil heat exchanger. As the
end equipment of central air conditioning system, it is widely used in hotels, restaurants,
plants, hospitals, exhibition halls, shopping malls, office buildings
and other large industrial and residential buildings for the purpose of cooling,
dehumidification and heating and hence creating fresh, quiet and comfortable
working and living space for people.
Features: secure, reliable, durable, high efficient, abundant energy, strong wind,
low noise, general purpose, and light weighted.
parameters of fan coil units(GB/T19232-2003) | |||||||||||
capability model | FP-34 | FP-51 | FP-68 | FP-85 | FP-102 | FP-136 | FP-170 | FP-204 | FP-238 | ||
rated air volume m3/h | High speed | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
Middle speed | 260 | 390 | 510 | 640 | 770 | 1020 | 1280 | 1530 | 1790 | ||
Low speed | 170 | 260 | 340 | 430 | 510 | 680 | 850 | 1020 | 1190 | ||
cooling capacity | KW | High speed | 1.98 | 2.8 | 3.87 | 4.58 | 5.42 | 7.38 | 9.08 | 11.1 | 12.9 |
Kcal | High speed | 1702 | 2408 | 3328 | 3938 | 4661 | 6346 | 7808 | 9546 | 11094 | |
heat | KW | High speed | 3.39 | 4.5 | 6.35 | 7.45 | 9.22 | 12.4 | 16.3 | 19.5 | 20.2 |
Kcal | High speed | 2915 | 3870 | 5460 | 6407 | 7930 | 10665 | 14020 | 16770 | 17370 | |
input power W | 12Pa | High speed | 34 | 46 | 55 | 70 | 87 | 117 | 140 | 181 | 223 |
30Pa | High spped | 42 | 56 | 70 | 81 | 101 | 149 | 165 | 202 | 241 | |
50Pa | High speed | 46 | 65 | 82 | 89 | 109 | 163 | 201 | 228 | 286 | |
noise dB(A) | 12Pa | High speed | 36 | 38 | 38 | 40 | 43 | 45 | 46 | 47 | 48 |
30Pa | High speed | 38 | 39 | 42 | 44 | 45 | 46 | 47 | 49 | 51 | |
50Pa | High speed | 40 | 41 | 43 | 45 | 47 | 48 | 50 | 53 | 54 | |
water flow Kg/h | 350 | 510 | 660 | 800 | 980 | 1280 | 1600 | 1920 | 2230 | ||
Water pressure Kpa | 6 | 10 | 17 | 21 | 31 | 15 | 18 | 21 | 26 | ||
Qty | 1 | 2 | 3 | 4 | |||||||
weight Kg | Horizontal concealed type | 17 | 18 | 19 | 22 | 26 | 39 | 43 | 49 | 52 | |
with air box | 20 | 22 | 23 | 27 | 30 | 44 | 48 | 54 | 58 | ||
inlet and outlet water pipe | 3/4" Internal thread | ||||||||||
condensate pipe | 3/4" external thread | ||||||||||
power | 220V/50Hz | ||||||||||
note | 1,Cooling condition: the dry bulb temperature27°C,Wet bulb temperature19.5°C, inlet Water temperature7°C,water temperature difference 5°C | ||||||||||
2. heating condition: the dry bulb temperature 21°C, inlet water temperature 60 °C, water flow is the same with cooling condition. | |||||||||||
3,tested by2.0MPa,maximum working condition 1.6MPa. | |||||||||||
Before-sale services:
(1) Tell customers how to use our products and matters needing attention.
(2) Guide customers to choose the best and economic product, recover the investment within short time.
(3) Site inspection if you need.
In-Sale services:
(1)Quality control must be inspected strictly.
(2)In accordance with the agreements stipulated in the contract.
After-sale services:
(1) If the project needs our installation guidance, we can send our engineer and translator. We can also send customers installation video to teach them how to fix and operate with
our product.
(2) Usually, our product warranty is 18 months after leaving factory or 12 months after installation. within this months, all parts broken will be responsible for our factory.
(3) Regular contact with customer, consult with the customer feedback, come true with
the customer's two-way communication.
GRAD Group products include: central air conditioning series products(chillers, air conditioners, fan coils, cooling towers, ventilators and accessory products), FRP series products (FRP winding pipes and storage tanks), SMC moulding products (water tanks, table tennis boards, basketball boards, manhole covers, etc) . All products have been inspected by the national quality inspection department.
If you have any question,please fell free to contact with following information.
