EoC Slave Unit – CD5102

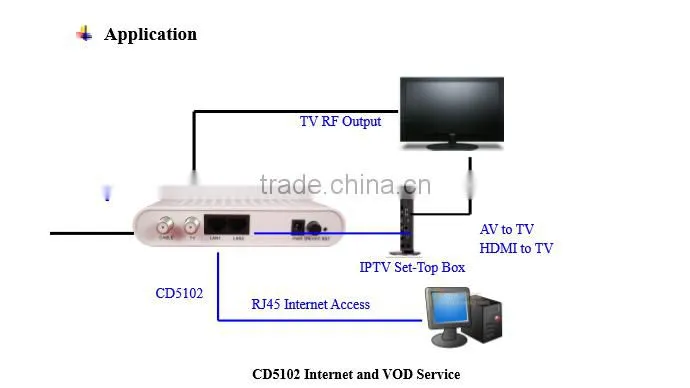

CD5102 is an EoC slave unit working with CD6101 or CD6201 master unit. The EoC units can distribute Ethernet access over last 100 meter coaxial CATV cable network efficiently. The slave unit receives the input RF from the master unit and output TV RF and two Ethernet RJ-45 ports. The maximum slave unit number to one master unit is 253 (the recommended number is less than 30).
Features:
l Remote Management by CD6101 Master unit
l QOS support
l VLAN support
l Up & Downstream manageable bandwidth
l Dynamic Bandwidth Allocation
l Broadcast Storm Suppression
l Auto configuration through Master device
l Auto upgrade through Master device
l Easy deployment
Specifications:
Parameters |
Specifications |
Model |
CD5102 |
Protocol of Network |
IEEE802.3, IEEE802.3u, IEEE Home Plug AV, VLAN(IEEE802.1Q), QoS (802.1p) |
PHY Speed |
200Mbps |
MAC Speed |
100Mbps |
Frequency Range |
7.5MHz~30MHz |
Modulation Technology |
OFDM |
Multiplex Technology |
TDMA+CSMA |
RF Level to TV |
-3.5dB to the input RF level |
RF Link Attenuation |
<60dB |
Media and impedance |
Coaxial TV Cable 75@ |
Modulation Mode |
OFDM 1024/256/64/16/8-QAM, QPSK, BPSK |
Management |
Remote Management by Master Unit, SNMP, WEB, CLI |
User Interface |
RF Output Port: American F-Type 75@ Data Port: RJ45 RF and Data Mix Input: American F-Type 75@ |
Security |
AES-128 |
Operating Temperature |
-10~50°C |
Operating Humidity |
10%~90% Non-condensing |
Dimension and Weight |
150×116×28(mm) 0.5Kg |
Power Consumption |
<5W, 12V DC |
