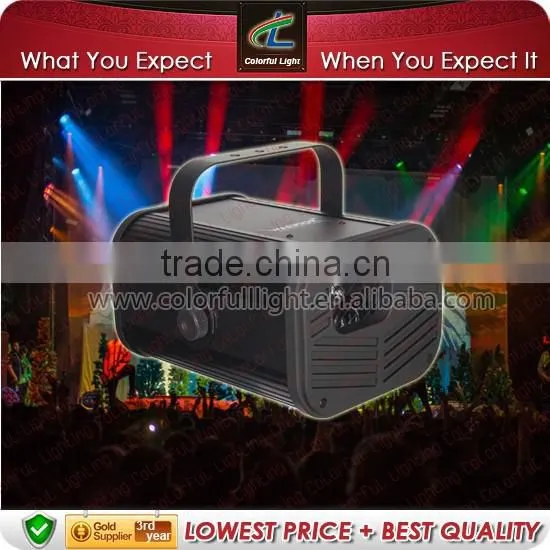

2015 Promotion Scanner System High Beam Light With Dichroic Plastic

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Light Source:

HID

Input Voltage(V):

90v-220v

Lamp Power(W):

220

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Light Source HID

Input Voltage(V) 90v-220v

Lamp Power(W) 220

Lamp Luminous Flux(lm) 6000

Lamp Luminous Efficiency(lm/w) 60

Color Temperature(CCT) Cool White

Working Temperature(℃) -20, 40

Working Lifetime(Hour) 6000

Certification CE

Emitting Color Cold White

Lamp Body Material Aluminum

Place of Origin Guangdong, China

Brand Name CL

Model Number CL-W2R

2015 Promotion Scanner System high beam light with dichroic plastic

Product Description

Features:

Advantages

Beam

Gobos

3-Facet Prism

Laser - Like

Dimension

Technical Parameters

Features	Multi Effect Luminaire, Beam, Scanner, Laser Simulator 3°Precision Beam 3 Facet Rotating Prism X/Y and Z High-Speed Mirror System
Source	132W 2R Lamp 6,000 Hour Average Life
Effects	Strobe Electronic Dimmer 3 Facet Rotating Prism Multiple Pattern Macros Mechanical focus
Color	14 Dichroic Colors + White
Gobos	17 Gobos + Open
Control / Connections	2 DMX Channel Modes (17/21) 4 Button Control Panel 3pin DMX In/Out PowerCON In/Out
Size / Weight	Length: 358mm Width: 268mm Vertical Height: 242mm Weight: 7.5KG
Electrical / Thermal	AC 100-240v – 50/60Hz 220W Max Power Consumption Multiple Unit Power Linking (max 7 @120v / 14 @230v) 104°F (40°C) Max Ambient Temperature
Installation	Rrigging: Clamps (Not Included) Working Position: Any (360°)
Included Items	Adjustaable Mounting Yoke PowerCON Cable 3pin DMX Cable
