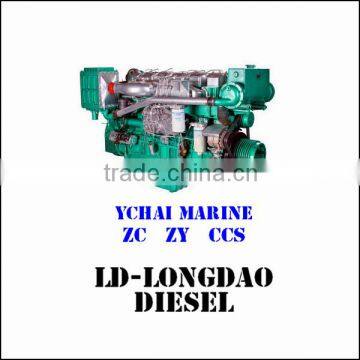

CCS IMO Approved 540HP Marine Engine YC6T540C

CCS IMO Approved 540HP Marine Engine YC6T540C thumbnail-1
CCS IMO Approved 540HP Marine Engine YC6T540C photo-1
US$ 24,000 - 24,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Boat
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Liuzhou Long Dao Industrial And Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Boat
Fuel Diesel
Stroke 4 Stroke
Cylinder Other, 6 Cylinder
Cold Style Other, Water-cooled
Start Electric Start
Place of Origin Guangxi, China
Brand Name Yuchai
Model Number YC6T540C
Dimension(L*W*H) 1880x1000x1860 mm
Weight 1980 kg
Certification CCS IMO
Warranty 12 Month
After-sales Service Provided Overseas third-party support available

CCS IMO Approved 540HP Marine Engine YC6T540C

a) Well perform in 20000 hours reliability test and the most demanding requirements on

    temperature compact.
b) Our world-class foundry and machining factory guarantee the excellent quality and reliability.
c) Alloy cast iron engine block, forged steel crankshaft and high-strength alloy connecting rod

   increase strength.
d) The improvement of piston cooling system reduces the piston temperature and oil consumption
e) Water cooling exhaust pipe reduces engine room temperature

Model

YC6T330C

YC6T375C

YC6T300C

YC6T410C

YC6T450C

YC6T350C

Type

Vertical, in-line, water-cooled, four stroke

Intake way

Turbo charging& inter-cooled

Cylinders - Bore × Stroke(mm)

6-145×165

Displacement(L)

16.35

Compression ratio

15.5:1

Prime Power (kW(Ps)/r/min)

242(330)/1500

275(375)/1500

220(300)/1200

300(410)/1500

330(450)/1500

257(350)/1200

Standby Power (kW(Ps)/r/min)

266.2(360)/1548

302.5(415)/1548

242(330)/1239

330(450)/1548

363(495)/1548

282(380)/1239

Min fuel consumption(g/kW•h)

195

Specific oil consumption(g/kW•h)

≤1.0

Engine oil capacity(L)

52

Crankshaft rotation direction

(see from power output end) Anticlockwise

Starting way

Electrical

Net weight(kg)

1980

Overall dimensions (LxWxH) (mm)

1880×1000×1860

Model

YC6T390C

YC6T420C

YC6T480C

YC6T510C

YC6T540C

Type

Vertical, in-line, water-cooled, four stroke

Intake way

Turbo charging& inter-cooled

Cylinders - Bore × Stroke(mm)

6-145×165

Displacement(L)

16.35

Compression ratio

15.5:1

Prime Power (kW(Ps)/r/min)

287(390)/1800

308(420)/1800

352(480)/1800

375(510)/1800

396(540)/1800

Standby Power (kW(Ps)/r/min)

315(429)/1858

338(462)/1858

387(528)/858

412(561)/1858

435(594)/1858

Min fuel consumption(g/kW•h)

195

Specific oil consumption(g/kW•h)

≤1.0

Engine oil capacity(L)

52

Crankshaft rotation direction

(see from power output end) Anticlockwise

Starting way

Electrical

Net weight(kg)

1980

Overall dimensions (LxWxH) (mm)

1880×1000×1860
