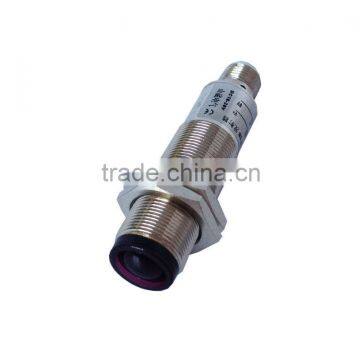

M18 Connector Photo Sensor Switch, Photoelectric Switch Sensor, NPN PNP AC 2 Wire Photoelectric Sensor Switch With M12 Connector

Name: M18 Connector Photo Sensor Switch, Photoelectric Switch Sensor, NPN PNP AC 2 Wire Photoelectric Sensor Switch With M12 Connector
Brand: IBEST
Availability: InStock

FOB Price

USD $8 - $10 / Piece

5 Pieces(Min.Order)

Supply Ability 30 Piece / Pieces per Month
Port ZhongShan Port
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	IBEST
Model Number	PESI-D18POC30D; PESI-D18POC30D	Usage	Other, photo sensor
Theory	Other, Infared photo sensor	Output	Other, PNP, NPN, NO, NC, NO+NC, AC 2 Wire

Product Description

Specifications

M18 Photo Switch
1.DC 3 wire or 4 wire;
2.PNP or NPN(NO/NC/NO+NC) or Ac 2 Wire
3.CE
4.With Red LED Indicator

1.Features of IBEST M18 Photo Switch :

-- Style: cylinder, diameter: 18mm.

-- Through-beam type, retro-reflective type and diffused-reflective type.

-- DC 3 wire or 4 wire; with or without M12 plug-in connector connection.

-- PNP or NPN; NO or NC or NO+NC

-- Light resource: Infrared LED -- Strong anti-shock and anti-vibration.

-- Long detect distance: through-beam: 10m / retro-reflective type: 3M / diffused-reflective: 5~50cm

-- Fast response: through-beam: <5ms / diffusec-reflective: <3ms -- Non-contact object detect: avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor. -- Detect any objects with different materials: detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc. -- Identify object colors: according to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors. -- High precision: precise electron circuit, can detect tiny objects with accurate position.

-- IP ratings: IP67 -

- Various other shapes: M12/M30 and square types.

2. Ordering Code:

PESI-D18PO30D	Diffused	PNP NO	30CM	≤200mA	DC 10-30V
PESI-D18POC30D	Diffused	PNP NO + NC	30CM	≤200mA	DC 10-30V
PESI-D18NO30D	Diffused	NPN NO	30CM	≤200mA	DC 10-30V
PESI-D18NOC30D	Diffused	NPN NO + NC	30CM	≤200mA	DC 10-30V
PESI-D18AO30A	Diffused	AC 2 WIRE NO	30CM	≤200mA	AC 90-250V
PESI-D18AC30A	Diffused	AC 2 WIRE NC	30CM	≤200mA	AC 90-250V

3. Technical Specifications:

Property project	Specific parameter
Detecting distance range	Through-beam:10m / Retro-reflective: 3m/ Diffusec-reflective:10cm or30cm
Rated power supply	DC:10-30V / AC:90-250V
Current	DC 3 Wrie: ≤200mA / DC 2 Wire:≤100mA / AC 2 Wire:≤400mA
Resonse time	Through-beam:<5ms / Retro-reflective & Diffused-reflective:<3ms
Working angle	Through-beam:3°-20°/Retro-reflective:1°-5°
Voltage for transistor	<1.5V
Current consumption	<20mA
Different distance	<15%
Polarity reverse protection	Yes
Ambient light(LUX)	Incandescent lamp:≤3000 / Sunlight:≤10000
IP ratings	IP 67
Material	Brass nickle plated or ABS

Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor, hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)

3, Solid state relay: single phase and 3 phase

4, Rotary encoder and couplings

5, Various type of cable and connectors..etc.

6, Pressure transmitters.

7, Safety light curtain.

Welcome to contact us!
