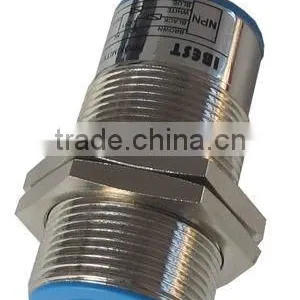

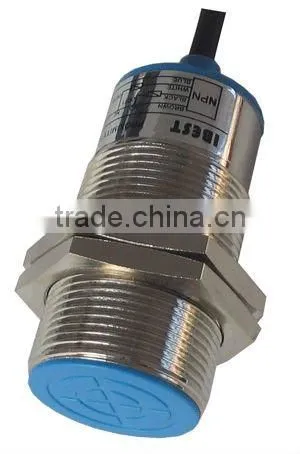

IBEST M30 DC 3-wire PNP NPN Inductive Sensor Switch, 10mm Shielded Flush Proximity Switch Sensor, AC DC 2 Wire Proximity Sensor

IBEST M30 DC 3-wire PNP NPN Inductive Sensor Switch, 10mm Shielded Flush Proximity Switch Sensor, AC DC 2 Wire Proximity Sensor thumbnail-1
IBEST M30 DC 3-wire PNP NPN Inductive Sensor Switch, 10mm Shielded Flush Proximity Switch Sensor, AC DC 2 Wire Proximity Sensor photo-1
US$ 6 - 8 MOQ: 5 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST, SANLLEVI
Model Number:
IPSI/L-30PO10B / IPSI/L-30NO10B; IPS-30DO10B; IPS-30AO10C
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST, SANLLEVI
Model Number IPSI/L-30PO10B / IPSI/L-30NO10B; IPS-30DO10B; IPS-30AO10C
Usage Magnetic Sensor
Theory Inductance Sensor
Output Other, NPN, PNP, NO or NC or NO+NC, AC or DC 2 wire

Specifications

M30 DC 3-wire Inductive sensor
1.Cylinder :shielded 10mm
2. DC 3/4 wire ;AC or DC 2 wire
3.CE,IP67
4.With cable or connector

1.Features of M30 DC 3-wire Inductive sensor :

--       Inductive sensor , style: cylinder, diameter: 30
--       DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC), AC 2-wire (90-250 AC) type
--       Connection mode: cables=2M directly; or with M12 cable connector.
--       Mounting distance: shielded (10mm) / unshielded (15mm)
--       With LED operation indicate lamp, easily identifiable
--       Brass chrome plated, proof of oil, water acid, alkaline
--       Standard sensing object: iferrous metals;
--       Over load, short circuit protection, against polarity reversal

--      IP ratings: IP67
--      Inductive sensor with Various other shapes: M5/M8/M12/M18 , square types and pancake types.

--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc.

--      Reliable quality to replace famous brands .





2.Ordering Code :



IPSI/L-30NO10B  NPN NO  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30NC10B  NPN NC  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30NO15B  NPN NO  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30NC15B  NPN NC  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30NOC10B  NPN NO+NC  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30NOC15B  NPN NO+NC  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30PO10B  PNP NO  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30PC10B  PNP NC  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30PO15B  PNP NO  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30PC15B  PNP NC  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30POC10B  PNP NO+NC  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30POC15B  PNP NO+NC  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30DO10B  DC 2 Wire NO  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30DC10B  DC 2 Wire NC  10mm,shielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30DO15B  DC 2 Wire NO  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30DC15B  DC 2 Wire NC  15mm,unshielded  ≤200mA  DC 10-30V  Plug-in connector
IPSI/L-30AO10C  AC 2 Wire NO  10mm,shielded  ≤300mA  AC 90-250V  Plug-in connector
IPSI/L-30AC10C  AC 2 Wire NC  10mm,shielded  ≤300mA  AC 90-250V  Plug-in connector
IPSI/L-30AO15C  AC 2 Wire NO  15mm,unshielded  ≤300mA  AC 90-250V  Plug-in connector
IPSI/L-30AC15C  AC 2 Wire NC  15mm,unshielded  ≤300mA  AC 90-250V  Plug-in connector











3. Technical Specifications:
Property project Specific parameter
Mounting distance shielded: 10mm / unshielded : 15mm
Sensing distance shielded: 0-8mm / unshielded : 0-12mm
Power supply DC 10-30V / AC 90-250V
Frequency DC: ≤200Hz / AC:≤20Hz
Current output DC:≤200mA / AC: ≤300mA
Ambient temperture -20-70 C
Protection DC:Over-current&polarity or no(please indicate when order) / AC:no
IP rating IP67





Our company is a professiona manufacutures of:



1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.



2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)



3,  Solid state relay: single phase and 3 phase



4, Rotary encoder and couplings



5, Various type of  cable and connectors..etc.



6, Pressure transmitters.



7, Safety light curtain.







IBEST M30 DC 3-wire PNP NPN Inductive sensor Switch, 10mm Shielded Flush Proximity Switch Sensor, AC DC 2 Wire Proximity Sensor
