Place of Origin Guangdong, China
Brand Name IBEST, SANLLEVI
Model Number HPS-18PO10A / HPS-18NO10A
Usage Other, HALL EFFECT
Theory Other, HALL EFFECT
Output Other, NPN, PNP, NO or NC

 IBEST Hall Effect Sensor Switch



1.Features of  IBEST M8 Hall  Switch:
-     M8  cylinder.
-     Compact size, 20mm length inbody.
-     Standard sensing object: magnetic objects.
-      Fast response, long operation life.




-      Mini volume, easy to be installed, in particular installed closely inside metal objects in line, can
detect magnetic objects through metal objects.



-       IP ratings: IP67, water and oil resistant.
-       Widely used in pneumatic, liquid, plunger pump, bicycle pump^etc for detecting and positioning purpose.








2.Technical specification



Property projectSpecific parameter
Ratsd Voltage12/24V DC
Working Voltage10-30V DC
Voltage Drop≤2V
Rated Current100mA
Frequency≥5KHz
Detect StatusRed LED Indicator
IP RatingIP67
Housing MaterialNickle Plated Brass
Connection ModeCable
Standard Cable2m

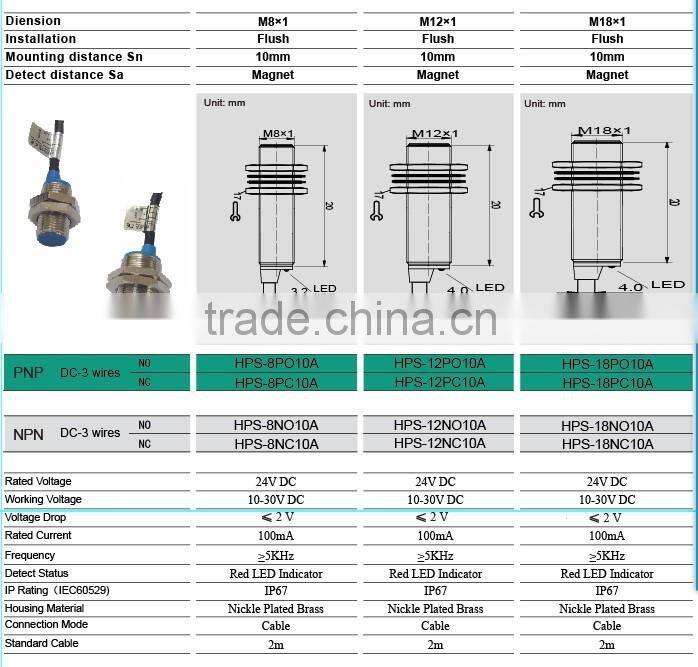

3.Ordering Code



Model and TypeOutput ModeDetect DistanceShapePower SupplyDetect ObjectBuy
HPS-8NO10A NPN NO 10mm M8 Cylinder 10-30V Magnet
HPS-8NC10A NPN NC 10mm M8 Cylinder 10-30V Magnet
HPS-8PO10A PNP NO 10mm M8 Cylinder 10-30V Magnet
HPS-8PC10A PNP NC 10mm M8 Cylinder 10-30V Magnet
