DPF 4 Digit Display Frequency Tacho Meter, Frequency Tacho Counter,RPM Counter Meter, HZ Meter (IBEST) Quality Choice

DPF 4 Digit Display Frequency Tacho Meter, Frequency Tacho Counter,RPM Counter Meter, HZ Meter (IBEST) Quality Choice thumbnail-1
DPF 4 Digit Display Frequency Tacho Meter, Frequency Tacho Counter,RPM Counter Meter, HZ Meter (IBEST) Quality Choice photo-1
US$ 30 - 35 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
IBEST
Model Number:
DPF-R414A
Contact Supplier Request Quote Chat Now
Zhongshan IBEST Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name IBEST
Model Number DPF-R414A
Display Type Analog and Digital
Measuring Range 0~9999 HZ
Accuracy Class 0.5% FS.+/- 2 digit
Voltage AC 90~250V
Operating Temperature -10~55 degrees
Dimensions 48W*48H*80Lmm

Specifications

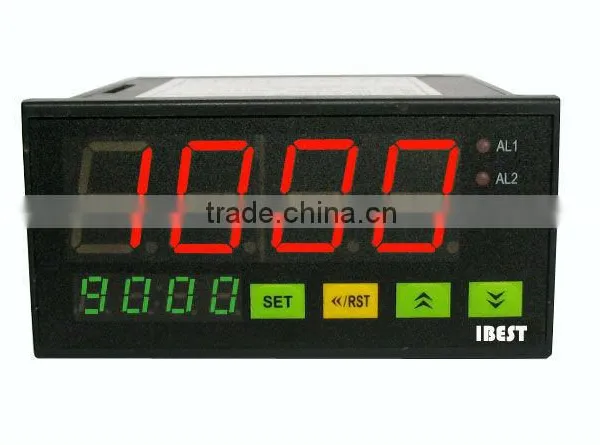

DPF Digital Frequency Meter/ Tacho Meter
* Red LED display
* Soft buttons, easily operate
* Measuring range: up to 9999



1. Features of Digital Frequency Meter / Tacho Meter :





*   Frequency meter / Tacho meter
*   Red LED display, 14.2 mm high
*   Soft buttons, easily operate
*   Measuring range:  up to 9999
*   Measuring frequency is selectable: 0.11~1KHz / 0.11~10KHz (up to 50K Hz can be ordered)
*   Frequency and tacho can be converted by software
*   Decimal point,modulus and display unit can be set freely;
*   Division modulus range: 0~9999
*   Multiplication modulus range:  0.001~9999
*   Refresh time and zero-return time can be set within 0~9s.
*   Power fail holing function, up to 10 years.
*   With or without analog output:0~20mA or 4~20mA
*   Relay and transistor output at the same time ( can drive solid state relay)



2. Ordering Code:
Model and Type Analog output Alarm output Display Size   Buy
DPF-R44A  Relay  Display only  4 digit  48*48mm
 DPF-A44A  Analog output 4~20mA  Display only  4 digit  48*48mm
 DPF-RR44A  Relay  1 alarm  4 digit  48*48mm
 DPF-AR44A  Analog output 4~20mA  1 alarm  4 digit  48*48mm
 DPF-RRR44A  Relay  2 alarm  4 digit  48*48mm
 DPF-ARR44A  Analog output 4~20mA  2 alarm  4 digit  48*48mm






3. Technical Specifications:
Property project Specific parameter
Power supply AC 90-250 V (50/60Hz)
Power consumption < or = 4VA
Transmitter supply 12V DC +/-10% Max.50mA
Measuring range

* Measuring range=1KHz: 011~1KHz

*Measuring range=10KHz:011~10KHz
Input signals contact input / voltage input / transducer input
Voltage input low voltage:0~2V / high voltage:4~30V
Input resistance 5 K ohm
Sampling speed 0.5~9s, sampling speed auto adjust when input pulse width
Refresh time Refresh after sampling speed finishes or manual reset refresh time from 1~9s
Disply range 9999(4 digit)
Decimal point 0.001~9.999 (4 digit)
Division modulus 9999(4 digit)
Multiplication modulus 0.001~9999 (4 digit)
Ambient temperature 0~50 C
Humidity(RH) 35~85%



Our company is a professiona manufacutures of:

1, Sensors: inductive proximity sensor, capacitive proximity sensor, photo sensor,  hall sensor, color mark sensor and analog sensor.

2, Digital meter: temperature controller, digital counter, digital timer, digital frequency/tacho/linespeed meter, digital panel meter, analog panel meter ...etc.)
3,  Solid state relay: single phase and 3 phase
4, Rotary encoder and couplings
5, Various type of  cable and connectors..etc.
6, Pressure transmitters.
7, Safety light curtain.
