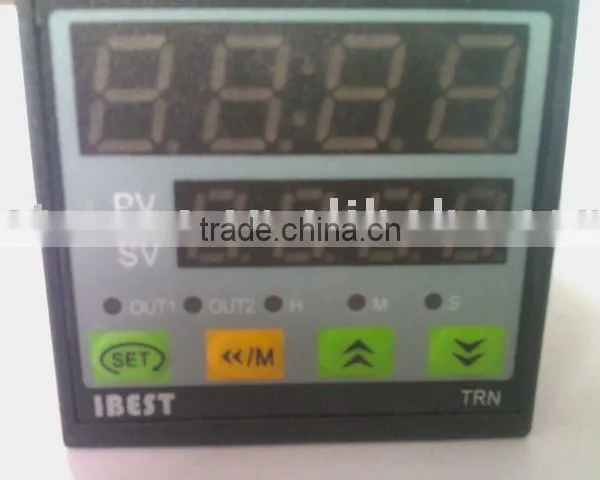

IBEST Relay Output , Counting Up or Down , 1 Preset Digital Timer

Specifications

Digital Timer
1.Preset timer ,soft buttons easy to operate
2.Dual line 6 digit display ,counting up or down
3.48*48mm

1.Feature of  IBEST  Digital  Timer





*      Preset timer

*      Soft buttons operation , easy to operate

*      Dual line 6 digit display ; Power fail holding function ,up to 10 years

*      Counting mode: counting up or counting down ,selectable by software

*      Timer range: 4 digit (99.99s~9999h) ,6 digit (9999.99s~99999.9h)

*      Terminals ends with time activate ,time pause ,time preset.

*      Relay output ; optional control output :N ,F ,C ,R ;  Modulus can be set by user.

*      Reset modes: manual reset , auto reset ( 0.1~999.9s can be set) ,external signals reset.

*      With 1 preset or 2 preset for time control

*      Dimensions : 48W*48H mm ,72W*72H mm ,96W*48H mm







2.Ordering code



Model and Type	Display	Control output	Dimension	Preset
TRN-R617	6 digit	Relay	72*72mm	1 preset
TRN-R618	6 digit	Relay	96*48mm	1 preset







3.Technical Specification



Power supply	AC 90~260V / 50~60Hz
Power consumption	≤5VA
Transmitter supply	12V / 24V DC ± 10%  max.50mA
Control output	Relay : NO.,contact capacitive: AC 250V / 3A or DC 30V / 3A Cosφ=1
Reset	Auto reset / manual reset / external switch reset
Input signals	Input signals low voltage:0~2V ,high voltage :4~30V ,input resistance: 5KΩ ;Restrain signals and external reset signals are effective at high voltage voltage ,can be short circuit with +12V as signal input.
Time mode	Timing up or timing down
Output mode	N, F , C, R
Timer range	4 digit (99.99s~9999h) , 6 digit (9999.99s~99999.9h)
Insulation strength	100MΩ/min ( use 500V DC MΩ meter to measure) / AC 2000V ,50/60 Hz (1m)
Ambient temperature	0~50°C
Humidity	35~85% (RH)
