Dedcription of Surface Coiling Slitting Machine
The machine is applicable for slitting of BOPP,PET,PE,PVC,aluminum foil,paper and isolating material.
Main technical specification
Model | LFQ--700 | LFQ--1100 | LFQ--1300 |
Diameter of width | 700mm | 1100mm | 1300mm |
Unwinding diameter | Φ600mm | Φ600mm | Φ600mm |
Rewinding diameter | Φ450mm | Φ450mm | Φ450mm |
Speed of parting cut | 0-180m/min | 0-180m/min | 0-180m/min |
Total power | 5kw | 7kw | 8kw |
Weight | 1800kg | 2200kg | 2500kg |
Overall dimension(L*W*H) | 2*1.6*1.3m | 2*1.8*1.3m | 2*2.2*1.4m |
The Features
1.The machine adopts center-winding and surface contaction winding type.
2.It is equipped with automatic photocell correction device,
invariable tension magnetic powder brake and clutch.
3.It is equipped with automatic meter-circulating measures and automatic stopping device.
4.The host adopts frequency conversation speed adjustment.
5.Unwinding and rewinding rollers adopt air shaft.
6.Guide roller 80#with surface oxidation treatment.
7.Swing arm adopts cylinder device.

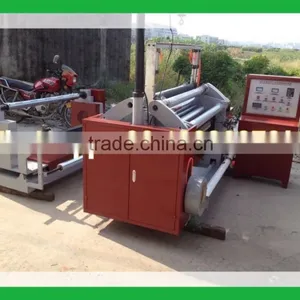

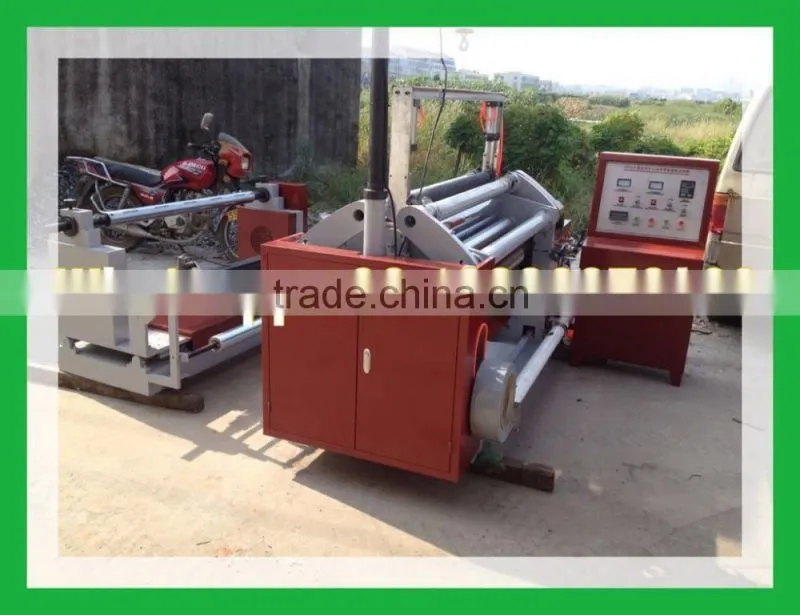

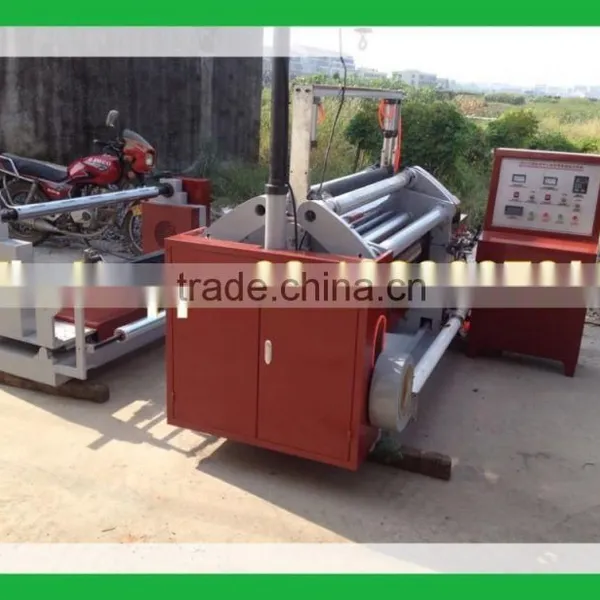

More pictures of Surface Coiling Slitting Machine
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new on the Plastic Machinery area, Some samples of your products could be show to us will be appreciated ,we will give you specialized suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for shipping the buyer's goods .The workers are knowing T/T, L/C Items very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also. They could provide the best and economic shipping ways to the buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will dispatch technician to The Buyer's factory to installation and preoperation of machines .But the buyer need to supply the round trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts will reach within 3-7 Express working days .
