Overvoltage Protection Devices

Overvoltage Protection Devices
Corrugated cardboard boxes outer and foam paper inner packing size: 4x5x14cm

Diaphragm Overvoltage
Used in conjunction with the diaphragm can be used to measure the viscosity, easy to crystallize the media.
Range: 0.016-1.0Mpa
Overvoltage capacity: 0-5Mpa
Working temperature: -25- + 120 ℃
Set Point Accuracy: ± 4%
Diaphragm material: 316L
Wetted materials: 316+ NBR

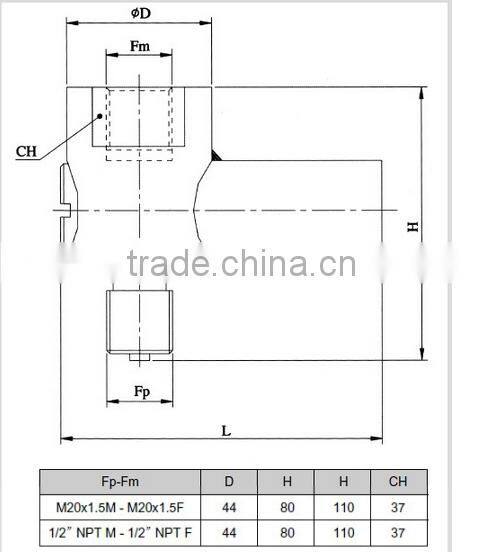

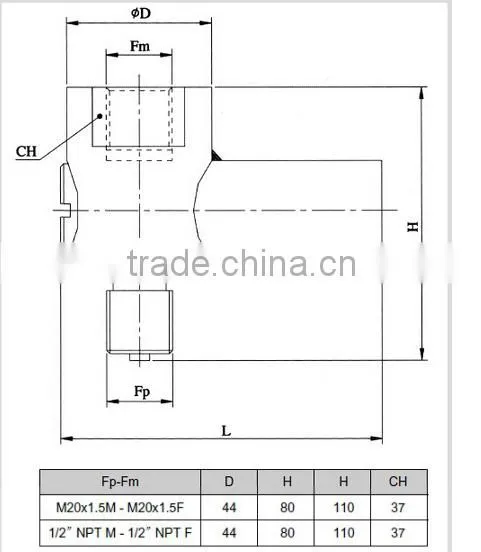

Interface: threaded M20 * 1.5M-M20 * 1.5F
1/2 "NPT M-1/2" NPT F
Pin Overvoltage
Used in conjunction with the diaphragm can be used to measure the viscosity, easy to crystallize the media.
Range: 1.6-40Mpa
Overvoltage capacity: 0-40Mpa
