High Speed Plastic Laminating Machine
This series of Laminating Machines are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic and aluminum-plastic compositions.
1. Machine Introduction
1. Machine Controlled By Three Vector Motor.
2.Both Unwind Of Machine Adopt Photoelectric Edge
correcting Device While The Material Feeding Is Controlled By Automatic Tension.
3.The Anilox Rollers Control The Amount Of Ink Scrapping By Scrapers. While The Rubber Roller Adopts Dual Air Cylinder .
4. 4-sect Heating In Drying Tunnel Controlled By Intelligent Temperature Controller, Quipped With Inner Cycling Device. Save Power.
5.Laminating Hot Drum And Pressing Roller Device Are Heated Through The Hot Oil
6.The Rewinding Of Machine Adopts Torque Motor.
7.Gluing Pressing Roller And Laminating Pressing Roller Adopt Pneumatic Pressure And The Pressure Is Adjustable.
2. Machine Advantages
1, We use stronger steel plate for machine body, which makes machine more stable.
2, Motor with CE standard, more than 10 years life
3, Long Oven for drying the glue.
4, EPC for unwinder, and automatic tension controlling system for unwinder.
5, Anilox roller is 180 DPI.
3. Machine Parameters
Model | YHL600A | YHL800A | YHL1000A | YHL1200A |
Material max width | 600mm | 800mm | 1000m | 1200mm |
Max unwinding diameter |
650mm
|
650mm
| 650mm | 650mm |
Max rewinding diameter | 650mm | 650mm | 650mm | 650mm |
Mechanical speed
| 90-180m/min | 90-180m/min | 90-180m/min | 90-160m/min |
Max laminating speed | 160m/min |
160m/min
|
150m/min
|
140m/min
|
Voltage
| 32kw | 34kw |
36kw
|
40kw
|
Machine weight
| 3000kg
| 3500kg
| 4000kg
| 5000kg
|
Outline dimension (mm) | 8500/1330/2600
| 8500/1530/2600
| 8500/1730/2600
|
8500/1930/2600
|

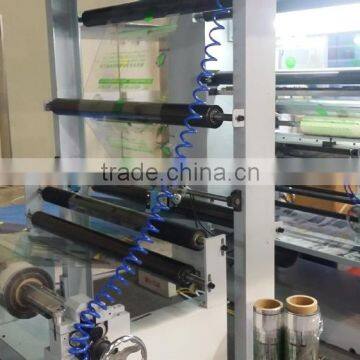

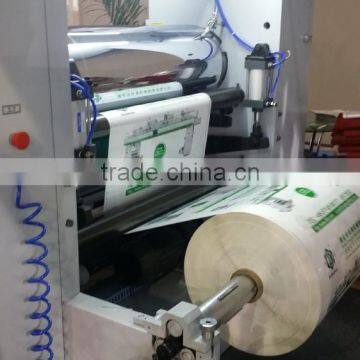

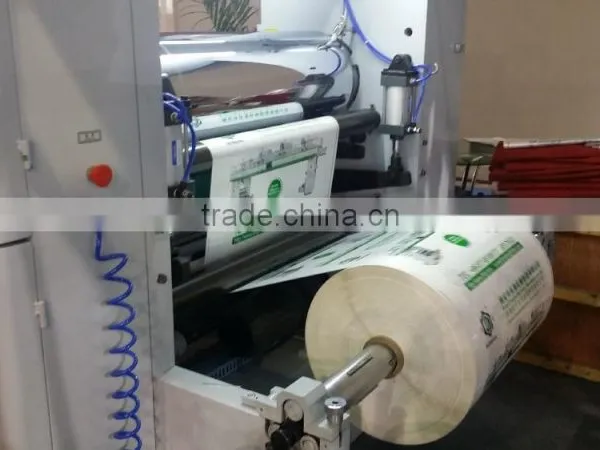

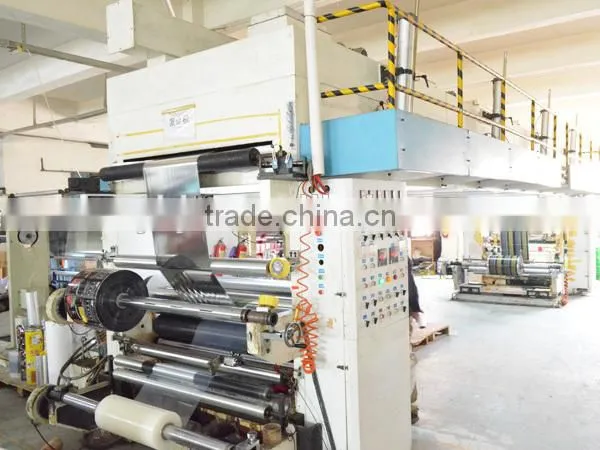

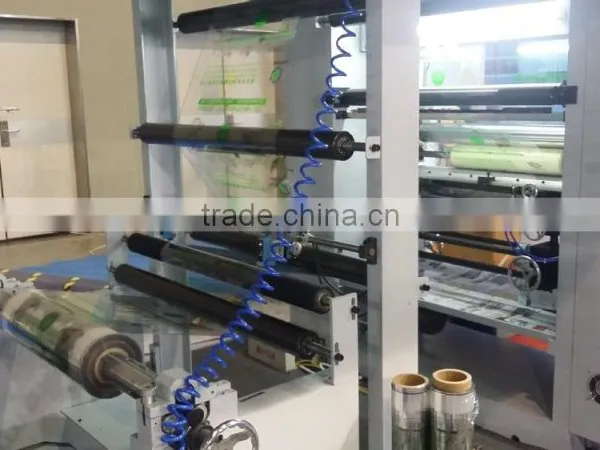

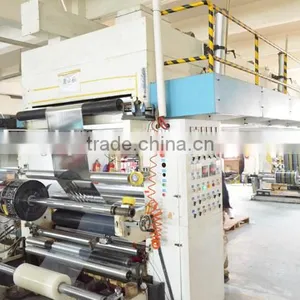

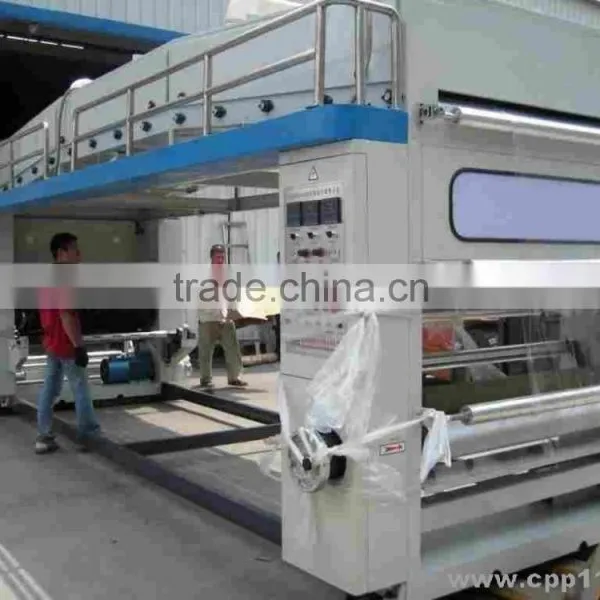

4. Machine Photos:
If need know more about our machines/price/service:
Skype: ruianplastic
Phone/WhatsApp: +86-13396972488
Wechat: 65295224
