Specifications

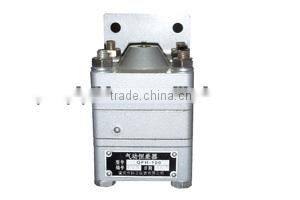

3C certificate pneumatic relay valveprofessional manufacturer
quick shipment
CEcertification
3C certificate pneumaticrelay valve
3C certificate pneumaticrelay valve
Description
The pneumatic actuator is an auxiliary device, it is actually a pneumatic actuator power amplifiers installed in leading the gas path. The power-amplified signal or the gas output pressure for enlargement or reduction (ratio of the output signal, and zoom in or out), to ensure that the signal is transmitted to a remote gas (0-300 m) to reduce the effects of delays in transmission. To adapt the scope of work of the actuator. Growth function. .
Technical parameters
| Signal output pressure ratio | bleed pressure (Kpa) | input signal (Kpa) | output pressure (KPa) | Output starting point adjustment device (at the top) | accuracy class |
QFJ-110 | 1:1 | 140 | 20~100 | 20~100 | with an adjustable device | 1 |
QFJ-210 | 1:2 | 250 | 20~100 | 40~200 | with an adjustable device | 1 |
QFJ-310 | 1:3 | 370 | 20~100 | 60~300 | with an adjustable device | 1 |
QFJ-610 | 2:1 | 140 | 40~200 | 20~100 | with an adjustable device | 1 |
QFJ-710 | 3:1 | 140 | 60~300 | 20~100 | with an adjustable device | 1 |
Type | Signal output pressure ratio | bleed pressure (Kpa) | input signal (Kpa) | output pressure (KPa) | Output starting point adjustment device (at the top) | accuracy class |
QFJ-100 | 1:1 | 140 | 20~100 | 20~100 | with an adjustable device | 1 |
QFJ-200 | 1:2 | 250 | 20~100 | 40~200 | with an adjustable device | 1 |
QFJ-300 | 1:3 | 370 | 20~100 | 60~300 | with an adjustable device | 1 |
QFJ-500 | 1:5 | 550 | 20~100 | 100~500 | with an adjustable device | 1 |
QFJ-600 | 2:1 | 140 | 40~200 | 20~100 | with an adjustable device | 1 |
QFJ-700 | 3:1 | 140 | 60~300 | 20~100 | with an adjustable device | 1 |
QFJ-900 | 1:1 | 1000 | 100~700 | 1~700 | with an adjustable device | 1 |
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this , please visit the website
