Specifications
gps tracking anti theft system fuel consumption sensor1 Integrated isolation amplifier circuit
2 Imported chips

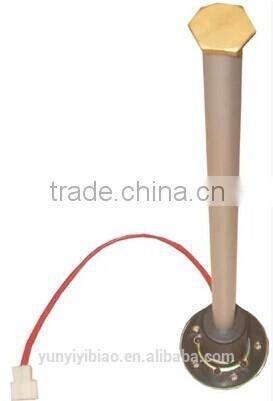

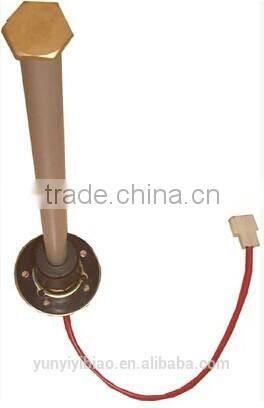

gps tracking anti theft system fuel consumption sensor
Description:
The use of ferrite magnets controlling the magnetic field generated reed-off of principle, the changes in the measured resistance of the oil level is converted into a voltage signal output, connected with the secondary instrument GPS system, which detects the tank oil level sensor . Detection of such products for its high accuracy, safety and reliability, long life, maintenance-free, easy to install and other prominent features, become an excellent alternative to the current use of various vehicle fuel tank level sensor.
Parameters of gps tracking anti theft system fuel consumption sensor
Resistance range: 0Ω ~ 1.96KΩ
Output: Single resistance signal (three-wire)
Detection voltage: <15V (but must ensure that the current requirements for detection)
Detection current: <25mA
Accuracy: 1%
Detection sensitivity: 2mm-30mm optional
Basic error: ± 2%
Working temperature: -40 ℃ ~ + 80 ℃
Lag time: 0.1 seconds
Life: 5 million times (continuous operation)
Overall structure: Column
Body Material: Stainless steel (1Cr18Ni9Ti),
Range: customized according to the required length of the oil level in the tank
Float Material: Polyurethane ø36 × 13 mm (limit diesel and petrol)
Flange size: Cylindrical ø56 mm hole center circle ø86 mm
Installation: roof-mounted (mounting from the top of the tank)
Wiring: Black - Ground; Green - signal output; Red - Power
Note: The signal line (green) as the negative short-circuit current is less than the detection current
Features of gps tracking anti theft system fuel consumption sensor
Fuel level sensor: The advantage of this program is to save fuel consumption can be achieved spending, cut costs purposes. When people wear when Touyou or oil spills, vehicle monitoring center in the corresponding alarm will occur. And can conduct refueling and fuel consumption data analysis, specific functions are as follows:
1 Come records: automatically records the history of refueling frequency, time, and the total amount of fuel refueling.
2 Search records: Come record any time, including refueling time, quantity.
3 Vehicle oil change: through the management software, you can automatically display the amount of oil changes any period of time, showing the amount of oil exception record
4 Average fuel consumption: You can select the time period, the accounting of the total fuel consumption of the time, and one hundred kilometers average fuel consumption.
5 Alarm: When there is abnormal phenomenon of fuel, alarm monitoring center will receive GPS terminal can promptly identify the cause.
If you need this gps tracking anti theft system fuel consumption sensor , please visit the website
