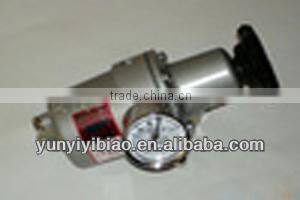

High Pressure Pneumatic Pressure Reducing Valve in Stainless Steel
professional manufacturer
quick shipment
CEcertification

High Pressure Pneumatic Pressure Reducing Valve in Stainless Steel

Description

Pressure relief valve QFY-300-type pressure relief valve is a pneumatic auxiliary unit. Would be reduced by the high-pressure compressed air pipe to the gas supply pressure pneumatic instrumentation required. Regulator and can play a role in high pressure valve output range of 0.005 ~ 0.4MPa is supporting the use of pneumatic actuators.



Technical parameters

Input pressure: 0.45MPa ~ 1.0MPa
Output pressure: 0.005MPa ~ 0.4MPa
Output flow: When the output pressure of 0.35MPa, the flow 3000L / h
Air consumption: less than 120 liters / hour (pipeline pressure is 0.5MPa)
Weight: Less than 0.9Kg.
Out threads are metric thread M10 × 1's.
