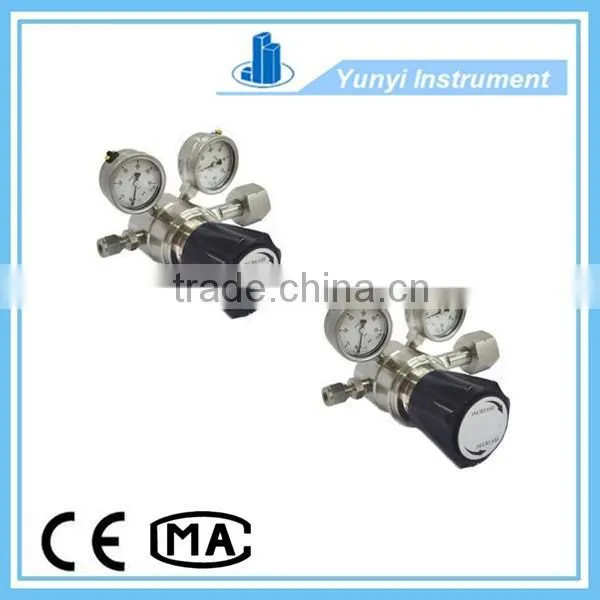

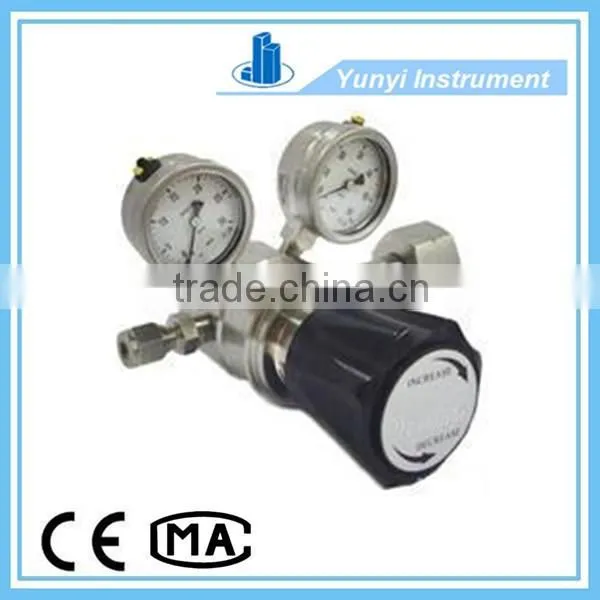

Precision Pressure Regulator
Specification: T1-FM-TY-A
Product name: Diaphragm precision pressure reducing valve
Model description: 316 material series regulator,6000psi(413.7bar),0 to 750psi(51.7 bar),Cv0.06.
Characteristics:
1.Inner surface is high degree of finish.
2.Choosing a variety of different material, different sizes and different pressure control range.
3.Can be used in gas and liquid field.
4.Can choose 316L stainless steel and brass material.
5.Can choose stainless steel and Viton diaphragm seal.
5.Can be equipped with 20um filter at the entrance.
6.Max inlet pressure: 6000psi(413.7bar).
7.Outlet pressure range: 0 to 750psi(51.7 bar).
8.Discharge coefficient:(Cv)0.025 0.06(standard) 0.2 0.5
9.Weight: 0.86kg.
10.Max using temperature:℃(℉):Teflon:66(150) PCTFE:80(175) PEEK:260 (500)
11. Pls make sure the using temperature, pressure,medium before choosing the product.
12. All of the 316L stainless steel meets the ASTM standard.
13.All of the Teflon,PCTFE,PEEK,Viton sealing material adopts imported bar
material for precision machining.
