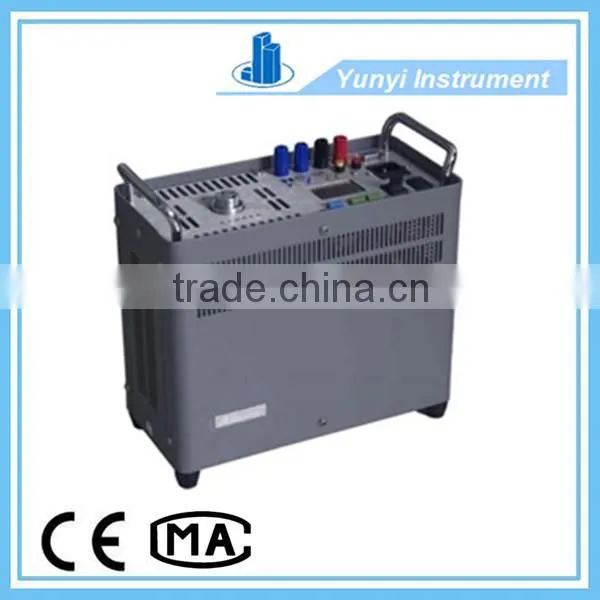

Aikom Portable Dry Block Temperature Calibrator

Standard packing(or according to the customer request)

Specifications

Aikom portable dry block temperature calibrator

Description of Aikom portable dry block temperature calibrator :

  Aikom portable dry block temperature calibrator has a built in PID Temperature Indicator Controller for Reference & also for controlling the temperature of the Dry Block as per selection from the front keys. Accurate temperature can be maintained in the Dry Block Temperature Calibrator uniformly using the PID Controller.

Standard supply includes FL 11 Dry Block, Temperature Calibrator, 6 hole insert, Clamp, Power Cord and Calibration Certificate traceable to National Standards. Standard Temperature Ranges available are 50 to 600 Deg. C with an accuracy of /-0.7 Deg. C. Other temperature ranges are also available on request.

Features of Aikom portable dry block temperature calibrator :
Model: PD-1020 PD-2400 PD-2680
Display range: -50 to 120 °C 0 to 410 °C 0 to 685 °C
Range: (22 °C) -20 to 120 °C 30 to 400 °C 30 to 680 °C
Accuracy: ± 0.10 °C ± 0.15 °C
Tank form: cylinder, cone
Tank Aperture: 20mm 24/18mm
Tank hole depth: 150mm 165mm 160mm
Heating / cooling time: 8min/9min 18min/20min 15min/22min
Power consumption: 80W max 200W max 600W max
DC battery power: 12VDC/6A 24VDC/8A only AC power supply
The certificate: 0%, 25%, 50%, 75%, 100% range, φ8 mm PSRT

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
