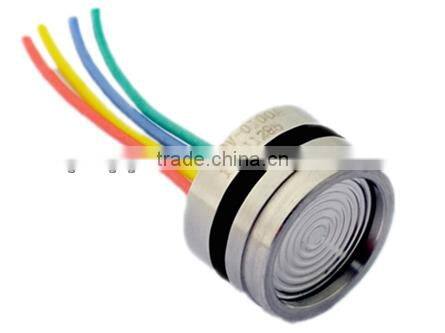

Oil Silicon Pressure Sensor
Description
YYS-19 Oil Silicon Pressure Sensor is standard and common OEM pressure sensor ,which has good sensitivity, linearity and hysteresis for industry and many other hostile environments. Silicon Oil-filled and isolated from measured media by a stainless steel diaphragm and body.It uses Laser trimming technics or outer resistors to do temperature compensation and zero correction. The whole products has high reliability,high endurance and long stability.
The sensors are widely used for chemi-industry, process control. Liquid pressure system,etc.
Features
piezoresistive pressure sensor
MEMS technology
1 mm diameter
pressure range:-100~0kPa,0~20kPa...100MPa
gas or dilute liquid compatible with 316LSS
Applications
Industrial process control
Wastewater and environmental engineering
Liquid pressure system and switch
Refrigeration equipment and air conditioner
Technical Specifications
test condition of data:25°C(77°F)
pressure range |
-100~0kPa,0~20kPa...100MPa |
pressure type |
gauge (G), absolute (A), sealed gauge (S) |
overpressure |
150%FS |
zero output |
±2mV |
output signal |
60mV @ 1.5mA |
excitation |
1.5mA 10Vdc(option) |
accuracy |
0.25%FS(typ.) 0.3%FS(max.) |
long-term stability |
≤0.2%FS/year |
efficient of zero |
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
efficient of span |
±0.02%FS/°C(typ.) ±0.03%FS/°C(max.) |
compensated temperature range |
-10~+70 °C |
operating temperature range |
-40~+125 °C |
storage temperature range |
-40~+125 °C |
Insulating resistance |
≥100MΩ@100Vdc |
input resistance |
3000~6000Ω |
output resistance |
2500~6000Ω |
electrical interface |
(4F)4-color silicon rubber wires,option (6P)gold-plated kovar pins |
material of pressure membrane |
316L stainless steel |
response time(10%~90%) |
≤1ms |
shock |
20gRMS,(20~5000)Hz |
impact |
100g,11ms |
net weight |
~18g |
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
