Description of silicon flush diaphram pressure sensor :

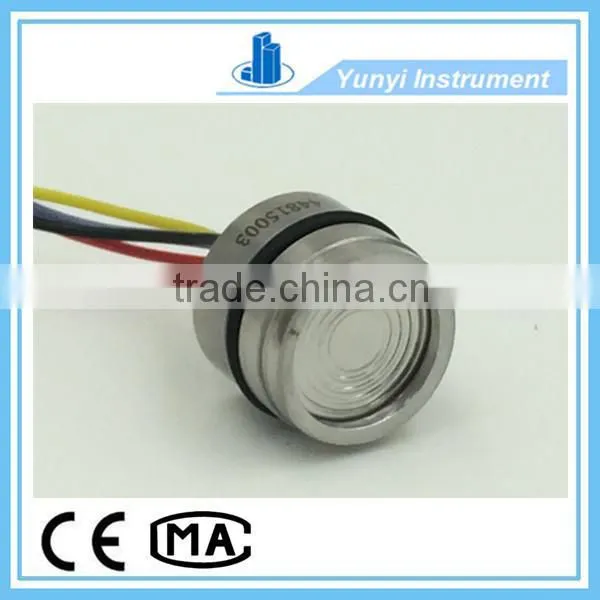

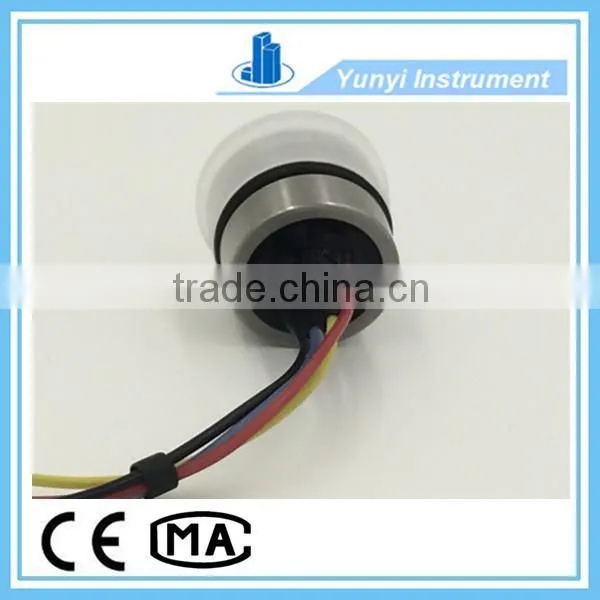

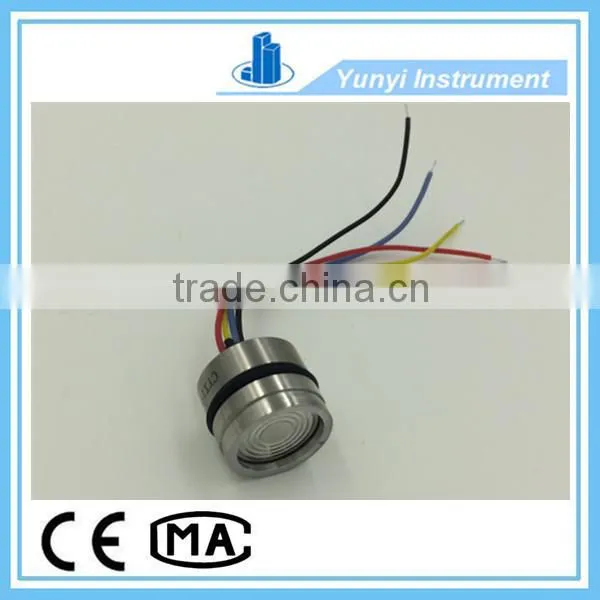

YPS-19 is 316L SS Piezoresistive Silicon Pressure Sensor , the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. The sensing element uses 316L stainless steel to packing and thick film circuit to do temperature compensation and zero correction. It has high reliability and stability.

Features of silicon flush diaphram pressure sensor :

♦ Measurement range: 0~10KPa~100Mpa                      ♦ O-ring mount

♦ High Accuracy and stability                                       ♦ Piezoresistive silicon sensing element
♦ Full 316L Stainless steel

Application of silicon flush diaphram pressure sensor :

♦ Measurement pressure of gas and liquid                      ♦ Petroleum exploitation
♦ Water supply,warm supply of town                            ♦ Process control system
♦ Aviation and navigation inspection                              ♦ Hydraulic pressure

Electrical Data of silicon flush diaphram pressure sensor :

♦ Supply :1.5mAD                                                      ♦ Input impedance:3KΩ~6KΩ

♦ Output impedance:2.5KΩ~6KΩ                                 ♦ Insulation resistance:≥100MΩ/50VDC

♦ Insulation voltage: 500VAC between the housing and electrical connection will not damage

♦ Medium compatible: liquid, gas compatible with 316L stainless steel

Performance Specification of silicon flush diaphram pressure sensor :

Above parameter under condition:  Supply:1.5mA     Temperature: 25°C
