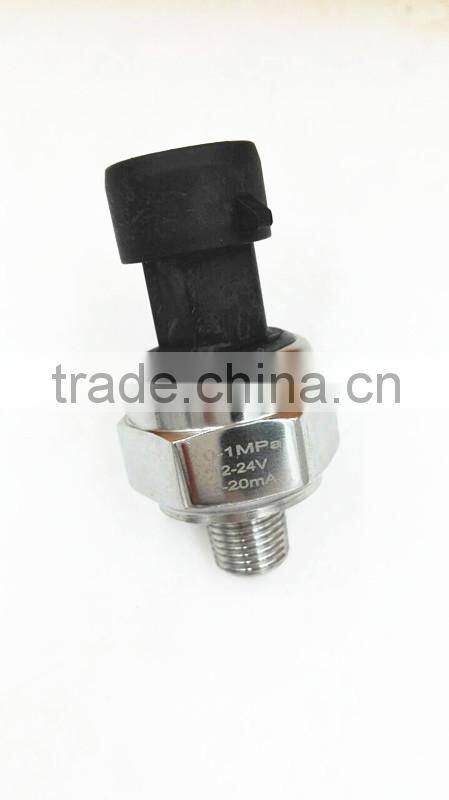

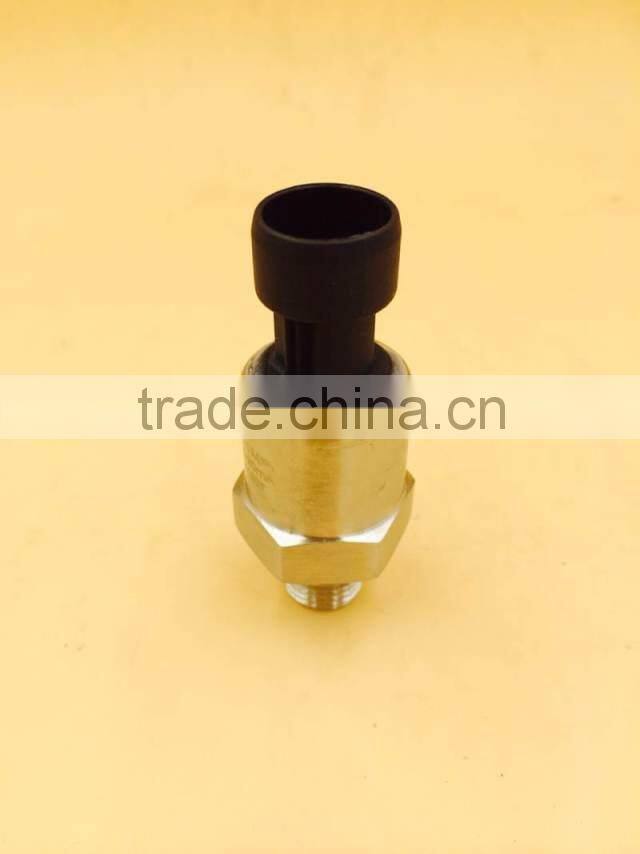

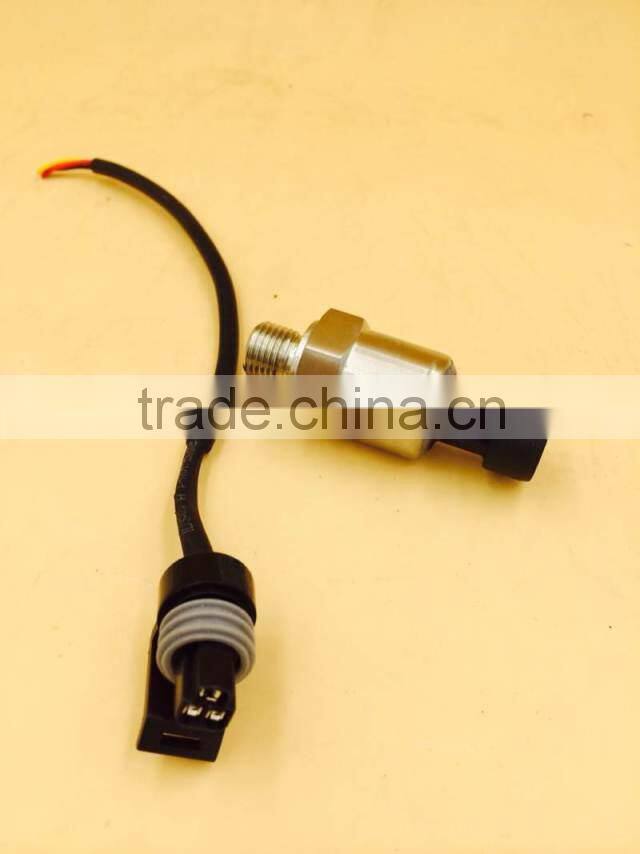

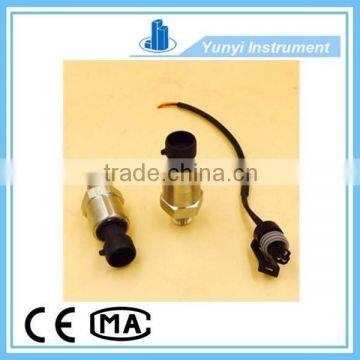

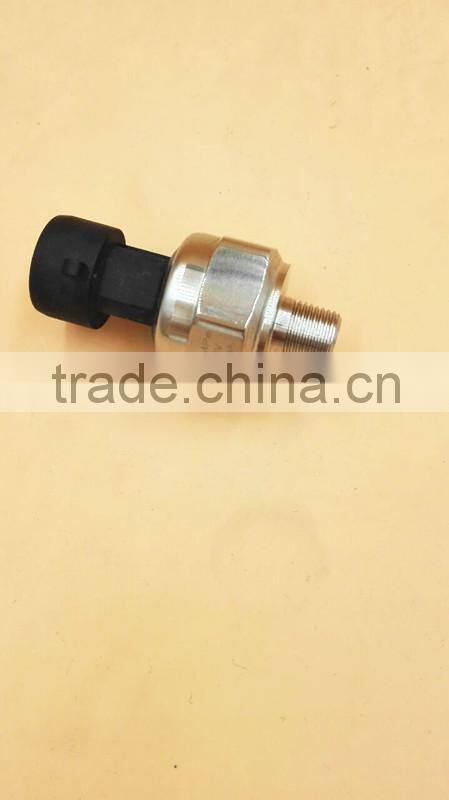

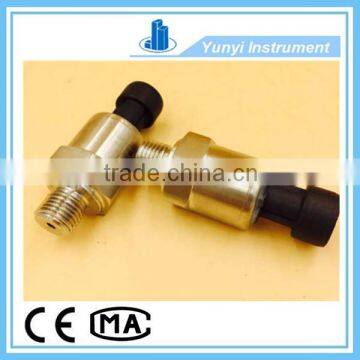

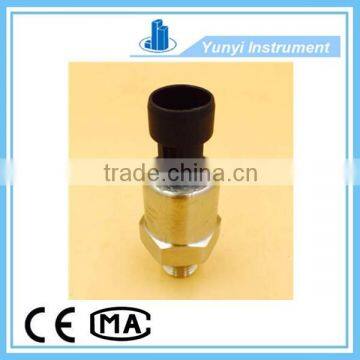

cheap pressure sensor
Technical parameters :
Range:-0.1-0Mpa,-0.1-0.1...1Mpa,0-2Kpa...300Mpa
Accuracy: 0.25%FS, 0.5%FS;1%FS
Medium:gas or liquid compatible with 316l stainless steel
Output: 4-20mA,
Input Voltage: +12VDC +24VDC
Electrical connector:water proof
Load capacity:current:<=500Ω
Operation Temperature: -20℃~120℃
Compensation Temperature: 0-85℃(Standard compensation)
Safety overload:150%
Limited overload:200%
Temperature drift:0.02%FS/℃
Stability:0.2%FS/year
Housing material: 316L SS
Protection:IP65
Process Connection:M20*1.5,G1/2,G1/4, 1/2NPT, 1/4NPT, M14*1.5 (Optional)
Features :
Use diffused silicon pressure components,high accuracy,good stability.
High sensitivity,strong overload.
Wide range,easy installation,meet different site requirements.
Applications :
Laboratory test apparatus
Agricultural chemical equipment
Refrigeration and HVAC systems
Hydraulic system
Gas tank pressure monitoring
Coolant pressure
Dimension:
Output graph:
If you need this industrial instruments oil pressure sensors , please visit the website
skype:wangxiaoyuncalar
