Electrical contact type pressure gauge with explosion-proof function
- 1000 Piece / Pieces per Month
- Any port of China
- T/T L/C D/P D/A Credit Card
- explosion-proof type pressure gauge/Electrical contact pressure gauge
- YUNYI stainless steel qualified electrical contact pressure gauge
- Safety and high quality electrical contact explosion proof pressure gauge with steel material
- Special type Precision Gauges/Differential Pressure gauge
- 2000 series differential pressure gauge with minimum range 0-30Pa
- Very good quality differential pressure gauge which is used widely
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Yunyi | Model Number: | Electrical contact pressure gauge |
Packaging Details
Standard export package
Product Description

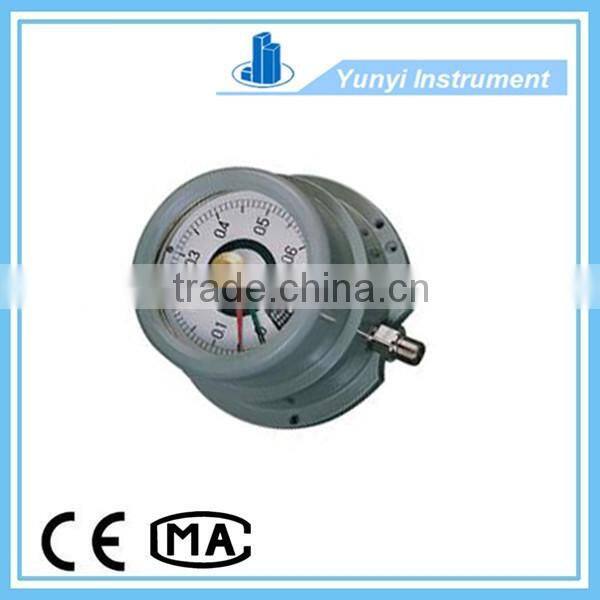

Electrical contact type pressure gauge with explosion-proof function
Specification :
1 scale range:0~0.16;0~0.25;0~0.4;0~0.6;0~1;0~1.6;0~2.5;0~4;0~6;0~10;0~16;0~25;0~40;
0~60;-0.1~0.06;-0.1~0.15;-0.1~0.3;-0.1~0.5;-0.1~0.9;-0.1~1.5;-0.1~2.4MPa -0.2-3.6MPA
2 Control: upper and lower contact switch Postponed
3 Maximum working voltage: DC 220V or AC 380V;
4 Contact power: 10VA
5 Working position: vertical installation
6 Environmental conditions: -10 ~ 50 °C, relative humidity less than 80%, and an explosive mixture should fall below the rank of Ⅱ B T4 group, working vibration and pulsation sharply measured media contacts and reliable instrument to deal with the action has no effect.
7 Temperature effect: showing the value of not more than 0.4% / 10 °C, the set point is not more than 0.6% / 10 °C (temperature deviation from 20 ± 5 °C).
8 Dielectric strength: 50Hz sinusoidal AC 2000V lasted one minute
9 Weight: 6kg
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology.
We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
