digital multimeter manual pressure pump
Description of digital multimeter manual:

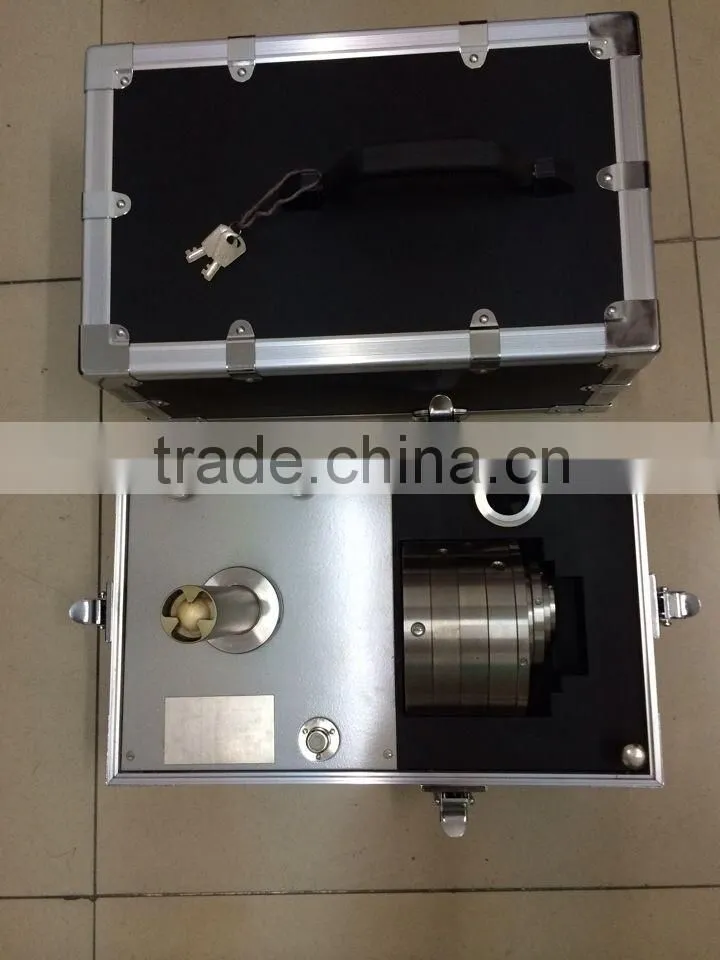

HDPI-2000C digital multimeter manual, with hand pump pressure source,
it is a field pressure calibrator that makes the modern digital measuring technology, the
high accuracy pressure sensor and the rapid charging battery become one system.
According to the pressure characteristic, this instrument can divide into three kinds:
vacuum pressure, positive pressure, hydraulic pressure. According to the pressure
range can be divided into: micro pressure, low pressure, high pressure.
Technical specification of digital multimeter manual:
1.Pressure Measure Range:
-100~0KPa -16~0 KPa -10~0 KPa -1.6~0 KPa -16~0~1.6 KPa -10~0~10 KPa
-16~0~16 KPa -100~0~100 KPa 0~1.6 KPa 0~10 KPa 0~16 KPa 0~160 KPa
0~1MPa 0~1.6 MPa 0~10 MPa 0~16 MPa
2.Measure Accuracy:
±0.1%F.S±2
±0.05%F.S±2
3. Current measurement range and accuracy:
Range: DC 0~200mA
Accuracy: ±0.05%F.S
4.Power supply:
DC 24V±5% (load current ≤ 25mA)
5.Battery Charging:
Rechargeable battery (about 6.2V ), one time charge and can work continuously
more than 8 hours.
6.Use environment
Accuracy ensure of the ambient temperature: 20±2℃
Use ambient temperature: 0~40℃
Humidity: ≤75%
Electric preheating time: 10minutes
7.Measured data display:
4 1/2(LCD) The character height: 18mm
8.Dimension(mm):
270 x 110 x 70
9.Weight:
About 0.75Kg
