Specifications
Spathic iron rotary kiln:1) Simple structure
2) Convenient operation
3) Less wearing parts
4) High running rate
Spathic iron rotary kiln manufacturer with incinerator
Product Description:
1) Simple introduction of spathic iron rotary kiln:
It can effectively improve preheating effect with its low resistance vertical preheater.
After the limestone is preheated, the feeding decomposition rate can reach 20%-25%, thus can directly make use of 10-15mm fine fraction limestone.
The reliable airtight two-ends combination squama make the air leakage factor under 10%. The usage of compound refractory reduces radiation loss.
Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials.
2) The structure of spathic iron rotary kiln:
The rotary kiln mainly consists of kiln body, loading device, burning device, unloading device, electronic appliance, dust collector, etc. Different lime kilns have different structures. Their process flow are almost same. But the equipment value has big distinction, of course the results are different.
3) Main technical parameters of spathic iron rotary kiln:
Specificttions (m) |
Kiln demensions |
Output (t/h) |
Rotation speed (r/min) |
Moto power (kw) |
Weight (t) |
Note |
||
Diameter (m) |
Length (m) |
Obliq-uity (%) |
||||||
Ø1.4*33 |
1.4 |
33 |
3 |
0.9-1.3 |
0.39-3.96 |
18.5 |
47.5 |
---- |
Ø1.6*36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
22 |
52 |
---- |
Ø1.8*45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
30 |
78.2 |
---- |
Ø1.9*39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
30 |
77.59 |
---- |
Ø2.0*40 |
2 |
40 |
3 |
2.5-4 |
0.23-2.26 |
37 |
119.1 |
---- |
Ø2.2*45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
45 |
128.3 |
---- |
Ø2.5*40 |
2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
55 |
149.61 |
---- |
Ø2.5*50 |
2.5 |
50 |
3 |
6.25-7.4 |
0.62-1.86 |
55 |
187.37 |
---- |
Ø2.5*54 |
2.5 |
54 |
3.5 |
6.9-8.5 |
0.48-1.45 |
55 |
196.29 |
---- |
Ø2.7*42 |
2.7 |
42 |
3.5 |
10.0-11.0 |
0.10-1.52 |
55 |
198.5 |
---- |
Ø2.8*44 |
2.8 |
44 |
3.5 |
12.5-13.5 |
0.437-2.18 |
55 |
201.58 |
Suspension preheating kiln |
Ø3.0*45 |
3 |
45 |
3.5 |
12.8-14.5 |
0.5-2.47 |
75 |
210.94 |
---- |
Ø3.0*48 |
3 |
48 |
3.5 |
25.6-29.3 |
0.6-3.48 |
100 |
237 |
Outside disassemble kiln |
Ø3.0*60 |
3 |
60 |
3.5 |
12.3-14.1 |
0.3-2 |
100 |
310 |
---- |
Ø3.2*50 |
3.2 |
50 |
4 |
40.5-42 |
0.6-3 |
125 |
278 |
Outside disassemble kiln |

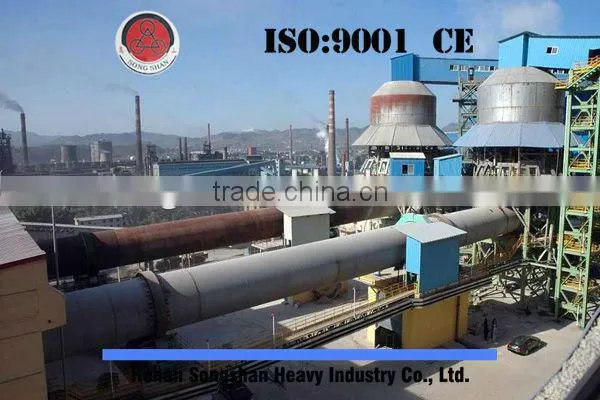

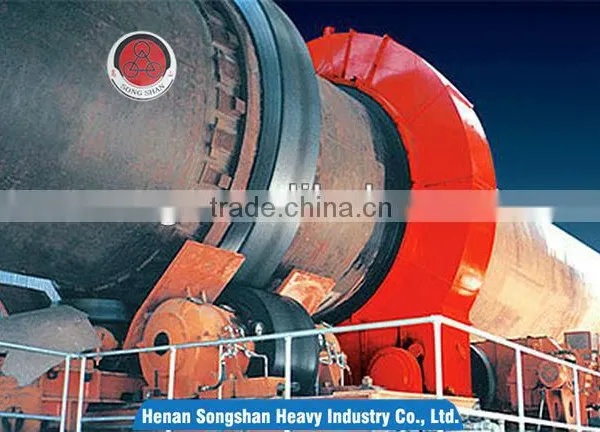

Product Image:
