Specifications
Rotary kiln:1) Simple structure
2) Convenient operation
3) Less wearing parts
4) High running rate
Portaland Cement Making Machinery of Rotary Kiln
1) Simple Introduction of Rotary kiln:
Rotary kiln can effectively improve preheating effect with its low resistance vertical preheater. After preheated, the feeding decomposition rate can reach 20%-25%, thus can directly make use of 10-15mm fine fraction limestone. The reliable airtight two-ends combination squama make the air leakage factor under 10%. The usage of compound refractory reduces radiation loss.

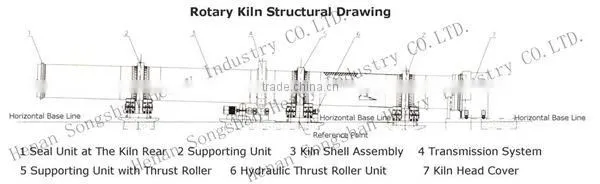

2) Structure of Rotary Kiln:
The rotary kiln mainly consists of kiln body, loading device, burning device, unloading device, electronic appliance, dust collector, etc. Different kilns have different structures. Their process flow are almost same. But the equipment value has big distinction, of course the results are different.
3) Main technical parameters of rotary kiln:
Specificttions (m) |
Kiln demensions |
Output (t/h) |
Rotation speed (r/min) |
Moto power (kw) |
Weight (t) |
Note |
||
Diameter (m) |
Length (m) |
Obliq-uity (%) |
||||||
Ø1.4*33 |
1.4 |
33 |
3 |
0.9-1.3 |
0.39-3.96 |
18.5 |
47.5 |
---- |
Ø1.6*36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
22 |
52 |
---- |
Ø1.8*45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
30 |
78.2 |
---- |
Ø1.9*39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
30 |
77.59 |
---- |
Ø2.0*40 |
2 |
40 |
3 |
2.5-4 |
0.23-2.26 |
37 |
119.1 |
---- |
Ø2.2*45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
45 |
128.3 |
---- |
Ø2.5*40 |
2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
55 |
149.61 |
---- |
Ø2.5*50 |
2.5 |
50 |
3 |
6.25-7.4 |
0.62-1.86 |
55 |
187.37 |
---- |
Ø2.5*54 |
2.5 |
54 |
3.5 |
6.9-8.5 |
0.48-1.45 |
55 |
196.29 |
---- |
Ø2.7*42 |
2.7 |
42 |
3.5 |
10.0-11.0 |
0.10-1.52 |
55 |
198.5 |
---- |
Ø2.8*44 |
2.8 |
44 |
3.5 |
12.5-13.5 |
0.437-2.18 |
55 |
201.58 |
Suspension preheating kiln |
Ø3.0*45 |
3 |
45 |
3.5 |
12.8-14.5 |
0.5-2.47 |
75 |
210.94 |
---- |
Ø3.0*48 |
3 |
48 |
3.5 |
25.6-29.3 |
0.6-3.48 |
100 |
237 |
Outside disassemble kiln |
Ø3.0*60 |
3 |
60 |
3.5 |
12.3-14.1 |
0.3-2 |
100 |
310 |
---- |
Ø3.2*50 |
3.2 |
50 |
4 |
40.5-42 |
0.6-3 |
125 |
278 |
Outside disassemble kiln |
Rotary Kiln Image
Certification:
Customer Visiting
Welcome to visit our factory!
