Help CenterHigh Pressure Angle Type Ball Valve
US$ 24 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Angle type
Pressure:
Other, Max working pressure: 414 bar (6000 psig)
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hex Bar Stock Stainless Steel Ball ValveUS$ 1 - 10MOQ: 1 Piece -
Newest Bar Stock Ball Valve ( Ball Valve Manufacturer,Stainless Steel Ball Valve)US$ 1 - 20MOQ: 1 Piece
-
Manual Ball Valve 3 Piece Ball ValvesUS$ 1 - 20MOQ: 1 Piece
-
Full Ported, 3-Piece Ball ValvesUS$ 1 - 20MOQ: 1 Piece
-
Three-piece Threaded Ball Valve ManufacturerUS$ 1 - 80MOQ: 1 Piece
Standard or Nonstandard
Standard
Structure
Other, Angle type
Pressure
Other, Max working pressure: 414 bar (6000 psig)
Power
Manual
Material
Other, 316 material series, Stainless steel
Temperature of Media
Other, -54°C to 232°C (-65°F to 450°F).
Media
Other, liquid, gas
Port Size
According to the machine design
Place of Origin
Shaanxi, China
Model Number
T1-FM-QF7B-001
Brand Name
Yunyi
Application
General

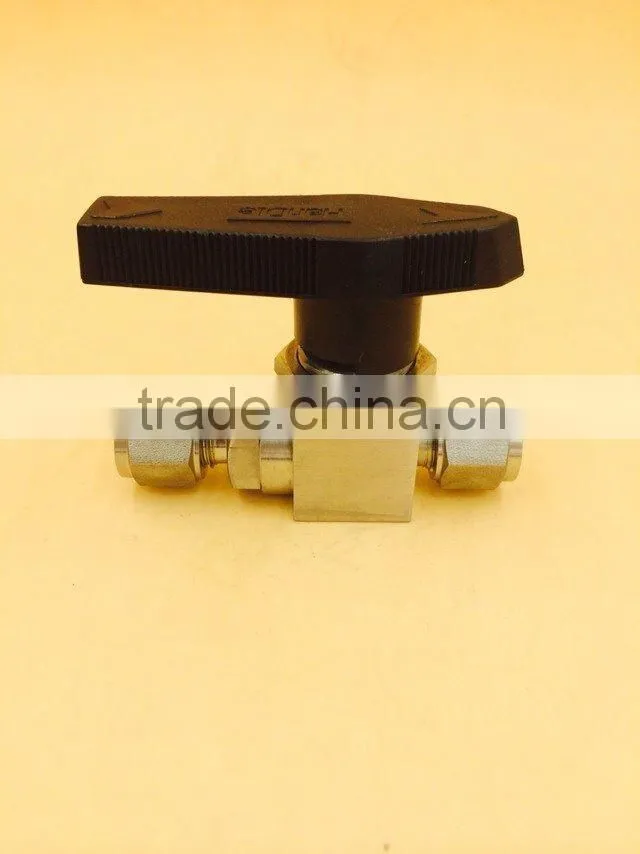

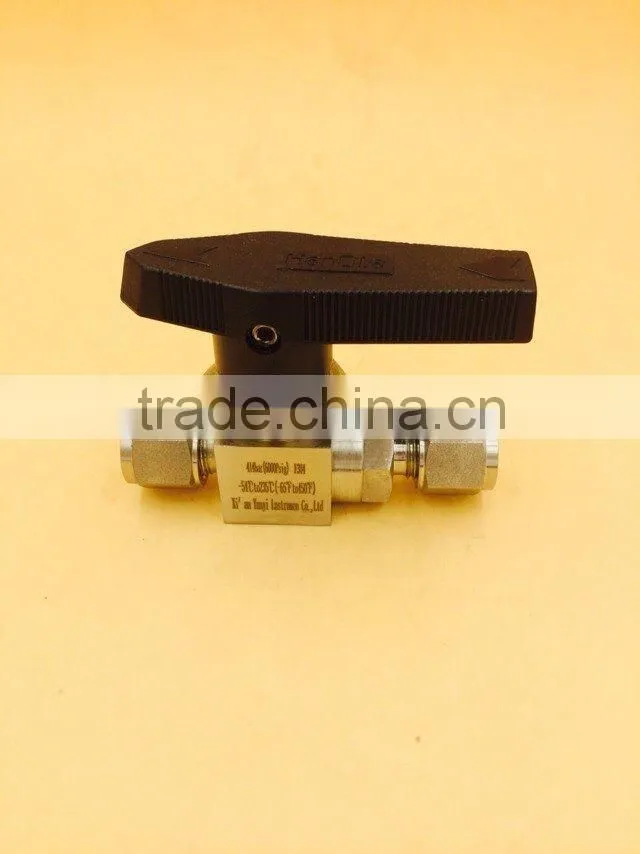

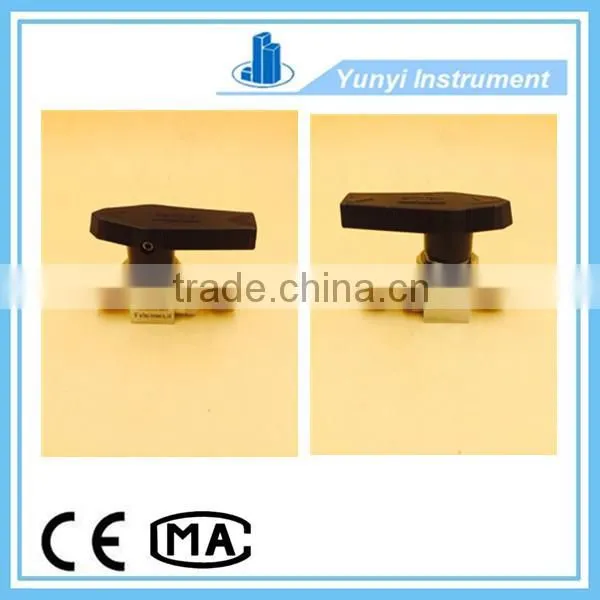

High pressure angle type ball valve
Specification: T1-FM-QF7B-001
Model description: 316 material series ball valve 8mm Tube fittings Cv1.35 6.4mm bore diameter.
Characteristic:
1. Max working pressure: 414 bar (6000 psig).
2. Working temperature range: -54°C to 232°C (-65°F to 450°F).
3. Through valve can be bidirectional flow.
4. Small operation torque.
5. Handle indication flow direction.
6. Handle limit.
7. Pneumatic or electric actuator are available for choose.
8. The colors of handle are available for choose.
9. Only the bottom can be the entrance for three way valve and angle type valve.
10.Each valve makes the sealing test according to nitrogen with the max working pressure.
