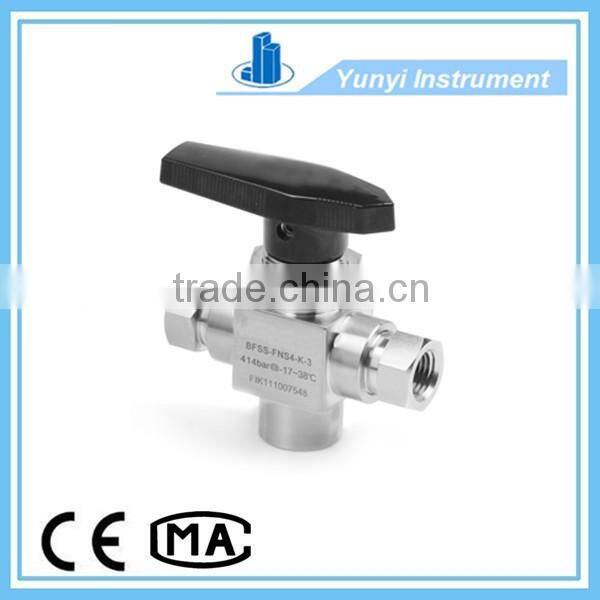

Ball vale
Specification : T1-FM-QF1A-002
Product name: ball valve
Model description: 316 material series ball valve 1/2 NPT ( inner) 0.19’’ bore
Diameter;
Characteristic:
1. Max working pressure: 414 bar (6000 psig)
2. Working temperature range: -17°C to 232°C (0°F to 450°F)
3. Fixed ball can be two-way seal.
4. Trunnion ball:l to prevent the ball rushing out.
5. The valve seat pre-tightens and seal automatically.
6. Low operating torque.
7. Anti fly out valve rod structure.
8. Handle indicates flow direction.
9. Accurate positioning of the handle.
10.The colors of handle are available.
11.Pneumatic or electric actuator can be chosen.
12.Installed plate can be chosen.
13.Each valve makes the sealing test according to nitrogen with the max working pressure, testing according to 6000psig when the max working pressure exceed 6000psig.
14.Structure is compact, max flow design.
15.2 way flow path.
16.Spring loaded valve seat: there is leakproof and complete valve seat abrasion caused by the changing of reducing the pressure in low and high pressure system.
