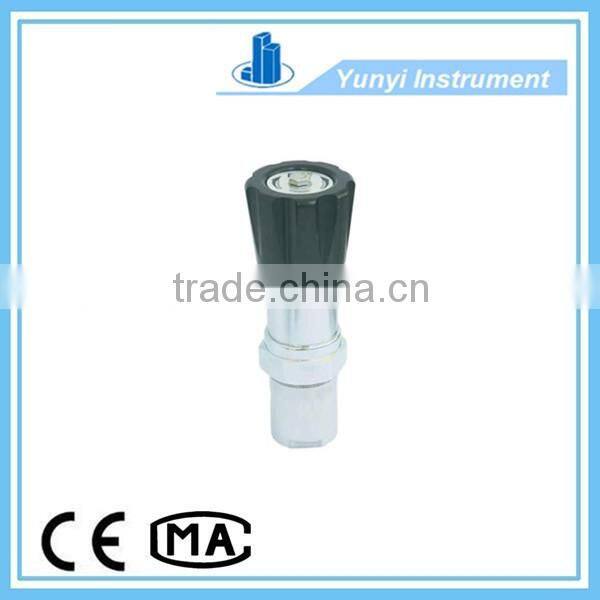

Pressure reducing valve pressure relief valve pressure control valve
Characteristic:
1.Used to satisfy the need of outlet pressure reaching to 2500psi(172.4bar)and anti corrosion requirement.
2.Equipped with 20 um filter to avoid the entrance impurity damaging the seat.
3.Can be used in gas and liquid field.
4.Adopting piston diaphragm type structure, high precision, safe and reliable.
5.Parts material connecting the medium are made of 316 L stainless steel.
6.Installed with panel can be chosen.
7.Maximum inlet pressure: 6000psi(413.7bar)
8.Outlet pressure range:0 to 2500psi(172.4bar)
9.Flow coefficient (Cv) : 0.06(standard) 0.025 0.2
10.Weight: 2.0kg
11.Maximum using temperature ℃(℉):Teflon:66(150) PCTFE:80(175) PEEK:176(350).
12. Maximum inlet pressure psi(bar ):Teflon:3600(248.2) PCTFE:6000(413.7) PEEK:6000(41 3.7)
13..Pls make sure the using temperature, pressure, medium before choosing the
Product.
14.All of the 316L stainless steel meets the ASTM standard.
15.All of the Teflon,PCTFE,PEEK, Viton sealing material adopts imported bar material for precision machining.
| Specification | T1-FM-TY-N |
| Product name | Pressure reducing valve pressure relief valve pressure control valve |
| Model description | 316 material for pressure regulation valve, 6000psi(413.7bar),Cv0.06,2.0kg |
