Vibrating Feeder Price Form China

Vibrating Feeder Price Form China photo-1
US$ 5,000 - 99,990 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
stone crushing plant, ore feeding process
Power Type:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application stone crushing plant, ore feeding process
Power Type Electric
Capacity(t/h) 20-500T/H
Place of Origin Henan, China
Brand Name Songshan
Model Number ZSW series
Power(W) 15-55kw
Certification BV CE, ISO9001:2000
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas







Product Description

vibrating feeder price



1.Introduction of  vibrating feeder price

The ZSW series vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry,

 chemical industry, electric power and other industries.This machine is often collocated before primary crushing

 and it is a necessary equipment to ensure the crushing and screening efficiency. This machine has the ability

of conveying largeblock materials evenly, and at the same time it can not only remove the loose soil, impurities,

 but also control the material feeding rate to the coming crusher.

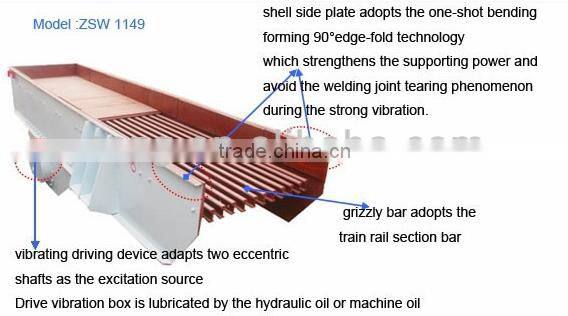

2.Features of ore vibrating feeder

vibrating feeder price form china



.

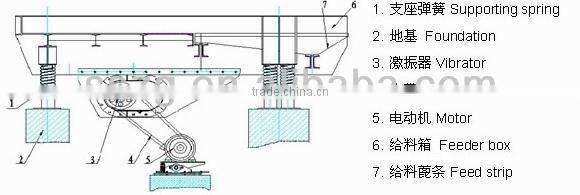

3.Structure of ore Vibrating feeder



vibrating feeder price form china


There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.

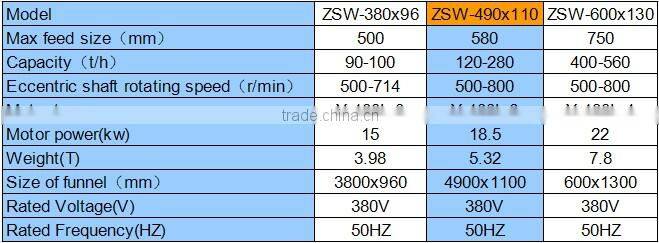

5. Technical parameter of ore vibrating feeder

 vibrating feeder price form china
