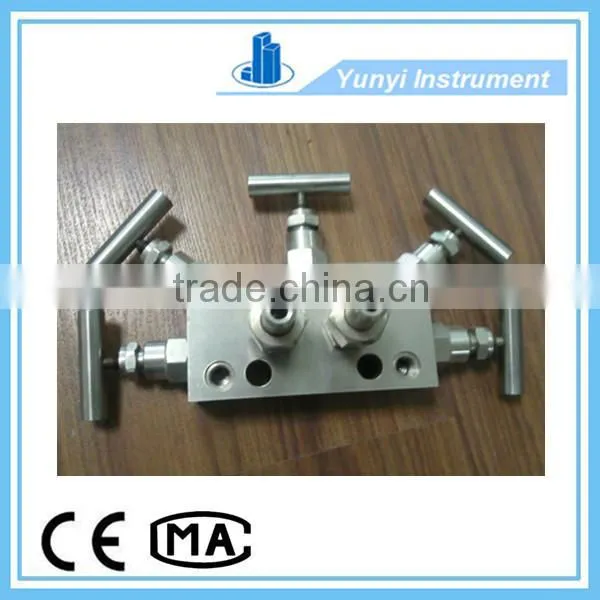

Stainless Stell 5 Valve Manifold Made in China

Name: Stainless Stell 5 Valve Manifold Made in China
Brand: Yunyi
SKU: 109069787
Availability: InStock

US$ 65 - 150 MOQ: 5 Units

Key Specifications

Material:

Stainless Steel

Media:

Water

Port Size:

1/2npt or 1/4npt

Xi'an Yunyi Instrument Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Material Stainless Steel

Media Water

Port Size 1/2npt or 1/4npt

Place of Origin China

Model Number 5 port

Brand Name Yunyi

Specifications

Stainless stell 5 valve manifold made in china
made in china
high quality
low price

Stainless stell 5 valve manifold made in china

1.Product Overview of Stainless stell 5 valve manifold made in china:

Rosemount 305 and 306 Features and Benefits

Unique Coplanar™ design enables “flangeless” valve integration
Coplanar, traditional, and inline styles
Compact, lightweight assembly
Factory assembled, leak-tested and calibrated
Easy in-process calibration
50% fewer possible leak points than conventional manifold/transmitter assemblies

2. Technical Parameter of Stainless stell 5 valve manifold made in china:

		305 Integral	306 Inline	304 Conventional
Pressure & Temperature Limits	PTFE Packing	6092 psi @ 200F (420 bar @ 93C) 4000 psi @ 400F (276 bar @ 204C)	10000 psi @ 85F (689 bar @ 29C) 4000 psi @ 400F (276 bar @ 204C)	6000 psi @ 200F (414 bar @ 93C) 4000 psi @ 400F (276 bar @ 204C)
	Graphite Packing	6092 psi @ 200F (420 bar @ 93C) 1500 psi @ 750F (103 bar @ 399C)	6000 psi @ 200F (414 bar @ 93C) 1500 psi @ 750F (103 bar @ 399C)	6000 psi @ 200F (414 bar @ 93C) 1500 psi @ 750F (103 bar @ 399C)
	Graphite (ASME B31.1) Packing	6092 psi @ 100F (420 bar @ 38C) 2915 psi @ 1000F (201 bar @ 538C)	6000 psi @ 100F (414 bar @ 38C) 2915 psi @ 1000F (201 bar @ 538C)	6000 psi @ 100F (414 bar @ 38C) 2915 psi @ 1000F (201 bar @ 538C)
Process Connection		Coplanar: ½-14 Female NPT Traditional: ¼-18 or ½-14 Female NPT 2 1/8-in. (54 mm) center to center	½-14 Female NPT or ½-14 Male NPT	FxP and FxF: 2 1/8 -in. (54 mm) center to center connection Wafer: 1 ½-in (38 mm) center to center connection FxP and Wafer: ½-14 Female NPT process connection
