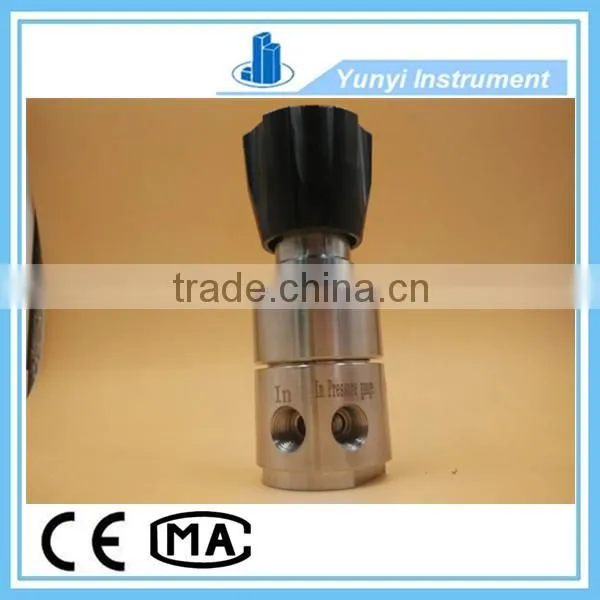

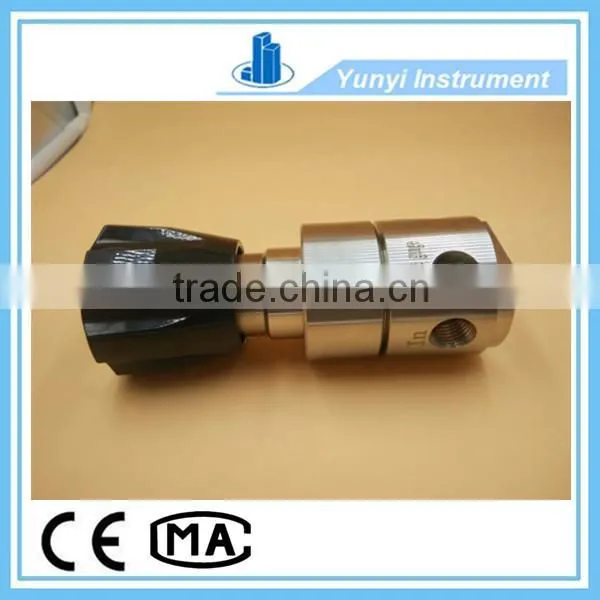

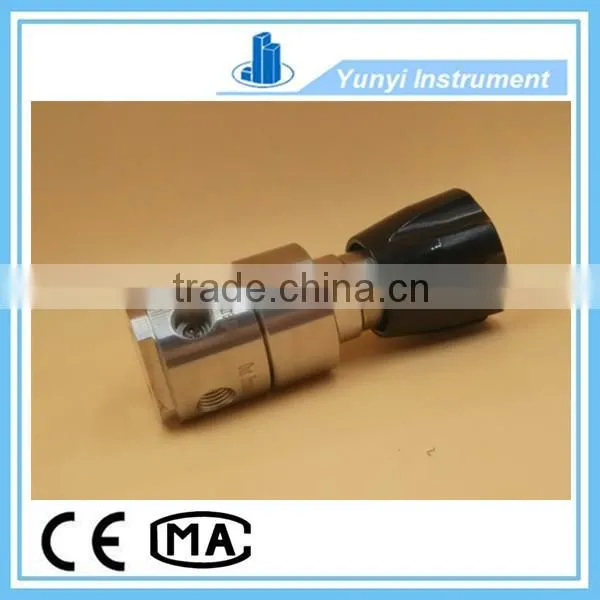

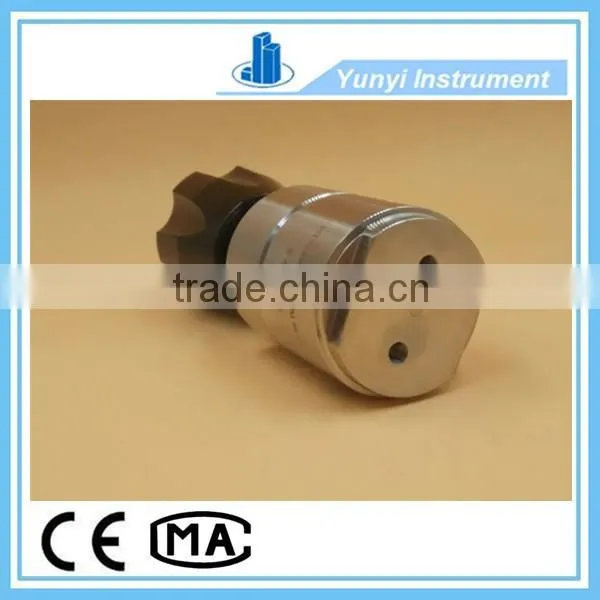

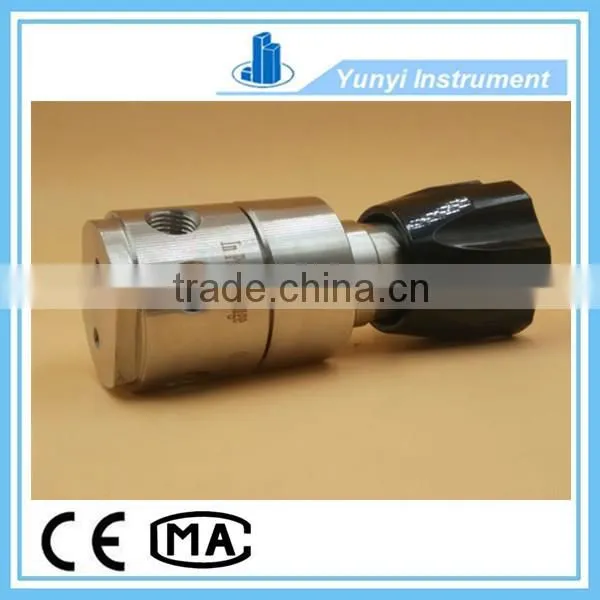

Professional factory for pressure reducing valve
Specification: T1-FM-TY-B
Model description: 316 material regulator,6000psi(413.7bar),Cv0.06,1.55kg.
Characteristics:
1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.
2. The design of piston structure is compact.
3. Proper material adopts 316L stainless steel.
4. Installed with plate can be chosen.
5. Can be equipped with 20um filter at the entrance.
6.Pls make sure the using temperature, pressure,medium before choosing the product.
7. All of the 316L stainless steel meets the ASTM standard.
8.All of the Teflon,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
Parameters:
| Material | 316 stainless steel |
| Max inlet pressure | 6000psi(413.7bar) |
| Outlet pressure range | 0 to 2500psi(172.4bar) |
| Discharge coefficient | (Cv)0.025 0.06(standard) 0.2 0.5 |
| Weight | 1.55kg |
| Max using temperature |
℃(℉):Teflon:66(150) PCTFE:80(175) PEEK: 260 (500). |
| Max inlet pressure | psi(bar ):Teflon:3600(248.2) PCTFE:6000(413.7) PEEK:3 600(248.2). |
