ultrasonic water tank level transducer,ultrasonic piezoelectric transducer ,M
Features of ultrasonic water tank level transducer :
1. Strong, stable sensor suitable for harsh industrial applications 2. Anti interference is strong, can set upper and lower alarm, and online output regulation
3. With built-in temperature sensor, can achieve real-time automatic temperature compensation.
4. Blind area can also be set manually, can shield the disturbance signal.
5. 4-20Ma current output.
Technical Parameter of ultrasonic water tank level transducer :
Range |
0-1, 3, 5, 7, 10, 20, max is 50m |
Accuracy |
0.25-0.5% |
Voltage |
24VDC |
Resolution |
1mm |
Frequency |
12kHz to 70kHz |
Temp |
-20 to 60 DegC |
Output |
4-20mA |
Blind area |
0.25m-0.8m |
Protection |
IP67 |
Emission angle |
6 DegC to12 DegC |

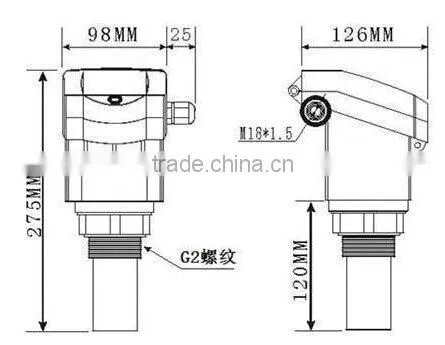

Installation size |
Φ58mm/G2 thread |
Case material |
ABS or of Tetrafluoroethylene |
Sensor material |
ABS Engineering plastics |
Keyboard |
Three soft touch keys |
