Specifications
2014 new products ultrasonic level meterHIgh quality
Low price

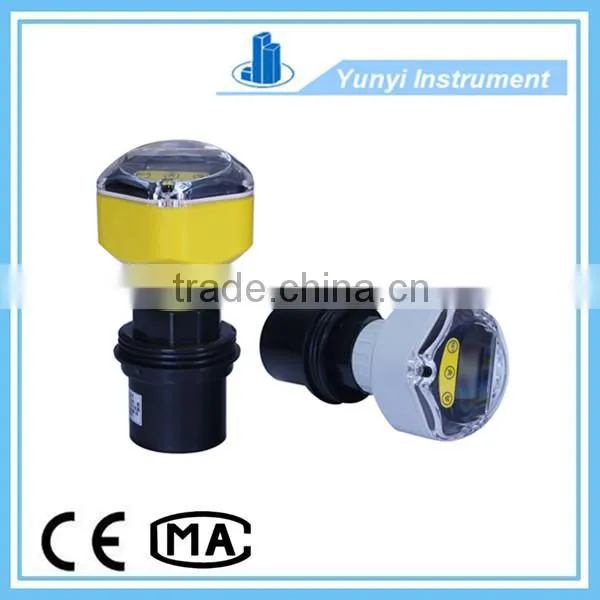

2014 new products ultrasonic level meter
Specifications of 2014 new products ultrasonic level meter:
Functions |
Integrative Type |
Segregated Type |
Level Range: |
Economic Type: 5M, 10M, 12M. Standard Type: 5M, 10M, 15M, 20M,30M, 50M. |
5M, 10M, 15M, 20M,30M, 50M, 70M. |
Accuracy: |
0.25%-0.5%F.S |
0.25%-0.5%F.S |
Blind Zone: |
0.2-0.6m |
0.2-0.6m |
Working Pressure: |
2 Bar (Explore Proof Type is 5 Bar) |
2 Bar (Explore Proof Type is 5 Bar) |
Resolution: |
3mm or 0.1%F.S (Max of them) |
3mm or 0.1%F.S (Max of them) |
Display: |
English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
English language display:Level measurement, distance measurement, transmission value, ambient temperature, echo state, alarm display, algorithm selection. |
Analog Output: |
4~20mA/750Ω load resistance (2 wire) 4~20mA/250Ω load resistance (4 wire) |
4~20mA/750Ω load resistance NA |
Relay /Alarm Output: |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional for 4 wire) |
AC 250V/ 8A; DC 30V/ 5A; State programmable (optional) |
Power Supply: |
24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
220VAC+15% 50Hz 24VDC 120mA 12VDC (available to offer power by motor, battery or solar power and so on.) |
Environment Temperature: |
Meter: -20~+60°C Sensor: -20~+80°C |
Meter: -20~+60°C Sensor: -20~+80°C |
Communication: |
RS485 Communications (optional) |
RS485 Communications (optional) |
Explore Proof: |
Ex(ia)ⅡCT6 |
Ex(ia)ⅡCT6 |
Water Proof: |
Economic Type: IP65 Standard Type: IP66 |
Meter: IP65 Sensor: IP68 |
Cable of Sensor: |
Null |
Standard: 10 Meters, Max to 200 Meters |
Sensor Installation: |
By level range and model code |
By level range and model code |
Store Request: |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Temperature: -20~+80°C Pressure: atmospheric pressure Humidity: ≤90%RH Others:Non-corrosive gases (optional corrosion probe) or steam, no vibration. |
Ordering guide of 2014 new products ultrasonic level meter:
In order to recommend you the most suitable sensor , please show us following necessary info according to your practical situation.
1.What is your medium ? Water, oil, or other.
2.Working temperature ? -20°C~80°C or other
3.Pressure range ? 5m 10m by order
4.Output signal? 4-20mA,or other
