Submersible pressure transducer water level
- 1000 Unit / Units per Month
- Xi'an
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | Yunyi | |
| Model Number | YD322 II |
pressure transducer water level
Standard export packaging
Product Description

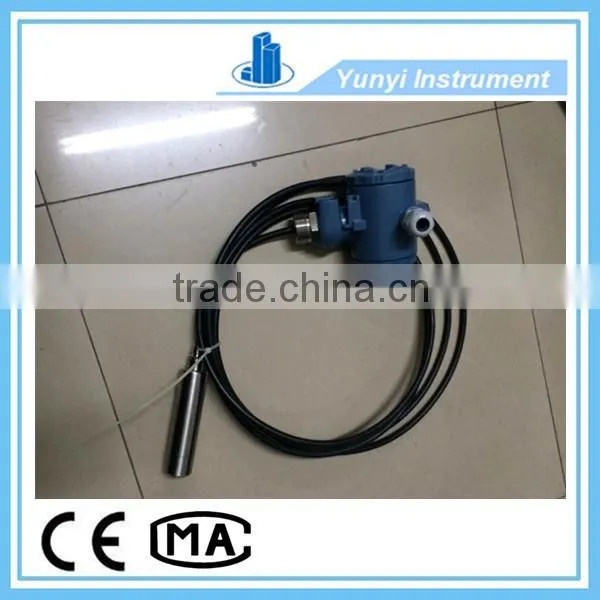

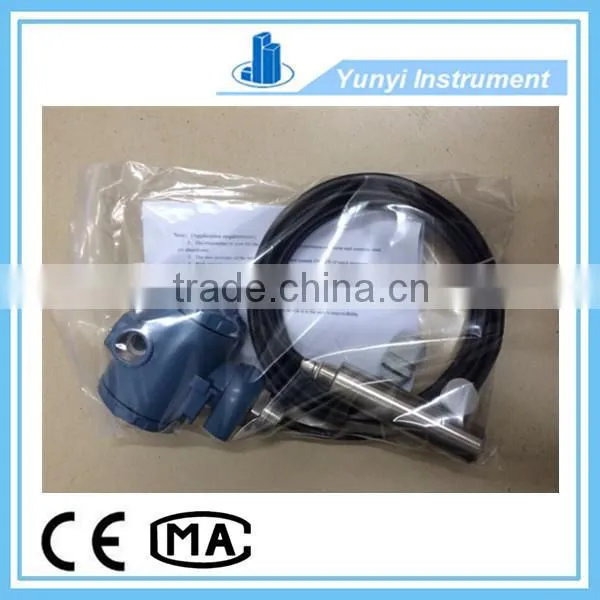

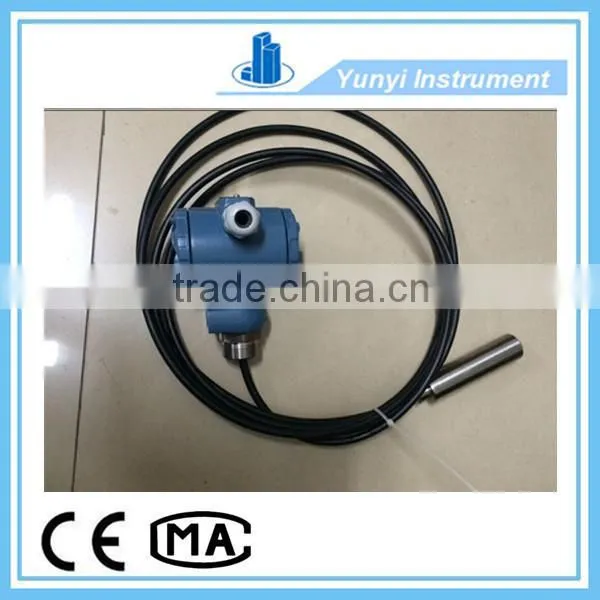

Submersible pressure transducer water level
Specifications of pressure transducer water level :
1). Measurement object: liquid level of water, oil, paste
2). Measuring range: 0 - 200m
3). Output signal: 4 ~ 20mA or 0 ~ 10mA
4). Power supply voltage: 24VDC
5). Temperature: -20 to 80°C
6). Index Table: user select
7). Material: die-casting aluminum alloy shell, epoxy coating surface
8). Diaphragm: 316 stainless steel
9). Probe: 1Cr18Ni9Ti
Parameter of pressure transducer water level :
Pressure Range |
0-1 0-2 0-5 0-10 0-20 0-30 0-50 0-100 0-150 0-200m |
Accuracy |
±0.1% ±0.2% ±0.3% ±0.5% |
Power Supply |
24VDC (12-30VDC) |
Signal Output |
Two Wire: 4-20mA 0-10mA Three Wire: 1-5VDC 0-5VDC |
Operating Temperature Range |
-20 to 80°C |
Connection Size |
Inputting Type: Φ22 or Φ27 Pipe connection: M20*1.5 Flange connection: DN50 or DN30 or customized |
Medium |
Liquid compatible with 316LSS |
If you need this Submersible Liquid Level Transmitter / Level Meter, Please contact me
Name: Sunny Zhang
Trademanager: cn1510580420
Skype: ontheway-sunny
Or you can view more products by
Company Profile
Xian Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer, Mr Tian has more than 30 years experience on this area, and he is one of the engineers who introduced the Rosemount technology. We are specialized in developing pressure transmitter, etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
