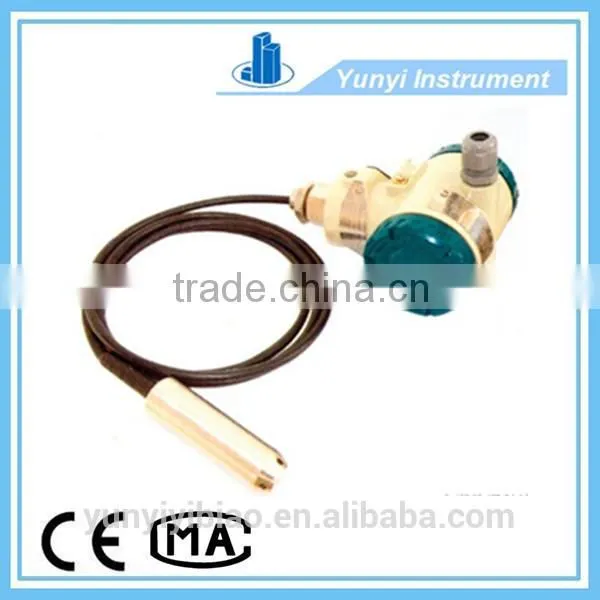

low price liquid water tank level meter sensor gauge transmitter

low price liquid water tank level meter sensor gauge transmitter
standard packaging

Specifications

low price liquid water tank level meter sensor gauge transmitter
1 high reliability
2 high accuracy
3 Long life



low price  liquid water tank level meter sensor gauge transmitter



Description:

The water tank level meter sensor gauge transmitter based on the principle of the hydrostatic pressure proportional to the height of the liquid measured, using the piezoresistive effect of the silicon or ceramic diffusion sensitive element, the electrical signal converted into static pressure. After temperature compensation and linearity correction. Converted into a standard current signal output 4-20mADC



Technical data:
Measuring range: 0.3 ~ 100m (optional by the user)
Accuracy: 0.2,0.5,1.0 level
Working temperature: -20 ~ 80 ℃
Output signal: two-wire 4 ~ 20mADC
Power supply voltage: Standard 24VDC (12 ~ 36VDC)
Insensitive zone: ≤ ± 1.0% FS
Load capacity: 0-600Ω
Relative humidity: ≤85%
Protection: IP68
Explosion-proof mark: ExiaⅡCT4-6



Features
1 High  stability, high accuracy
2 Can be put directly into the measured medium, the installation is quite easy to use.
3 Solid structure, no moving parts, high reliability, long life from water, oil viscosity of the paste to a larger high-precision measurements can be carried out, not measured media bubble, deposition, electrical characteristics of a wide range of the temperature compensation.
4 With the power inverting polarity protection and overload current limit protection.



Model Number										Description
LS-10										Submersible hydrostatic level transmitter
Type	1									Cable type
	2									Stick type( Sensors mounted on the bottom, direct contactthe liquid medium )
	3									antiseptic type
	4									Guide bar style ( Sensors mounted on the upper, no direct contact with the media )
Process connections		T								rack mounting
		N								flange mounting DN40 PN1.0
		Y								customed
Sensor connection material			1							304	Stick type
			2							316
			3							316L
			4							NBR and PVC compound	Cable type
			5							PTFE, (polypropylene flange)
Explosion-proof type				O						non explosion-proof
				E						Intrinsically safe Exia ⅡCT6
Display					O					Without on-site dispaly
					Z					With ammeter indicator (0-100%scale)
					X					With LCD digital display
Counterweight case						O				without counterweight
						W				with counterweight
							-			installation height (mm)
								-		mesuring height (mm)
									-	Measured medium density (g/cm3)
