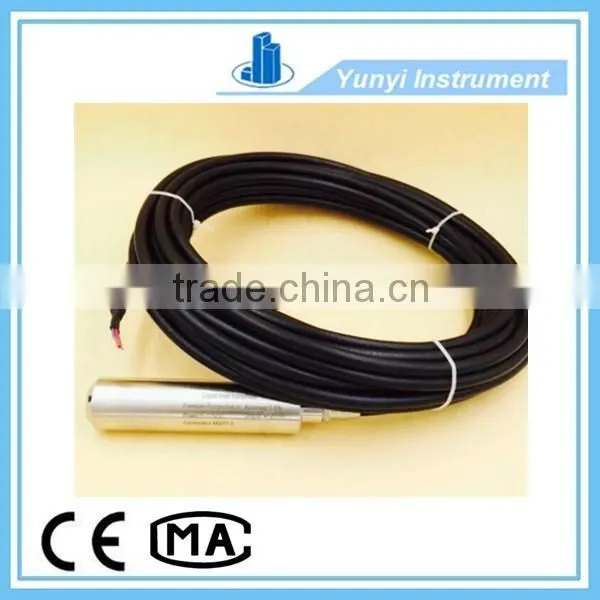

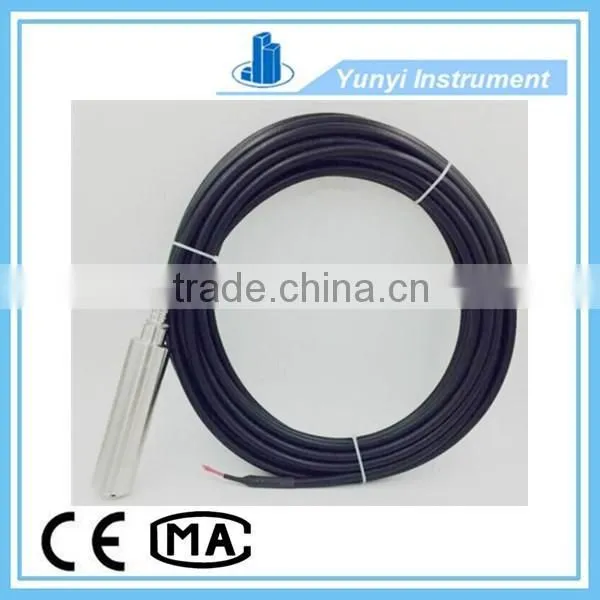

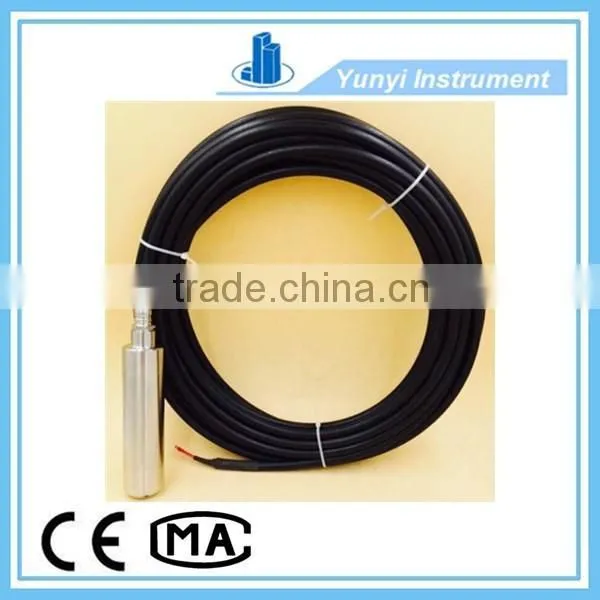

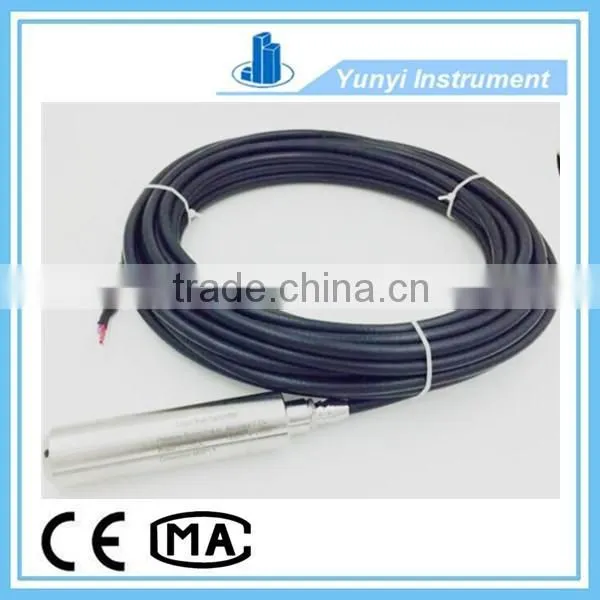

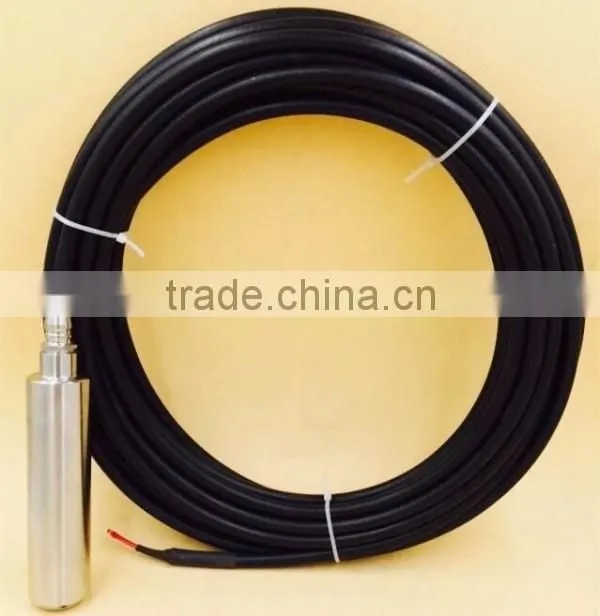

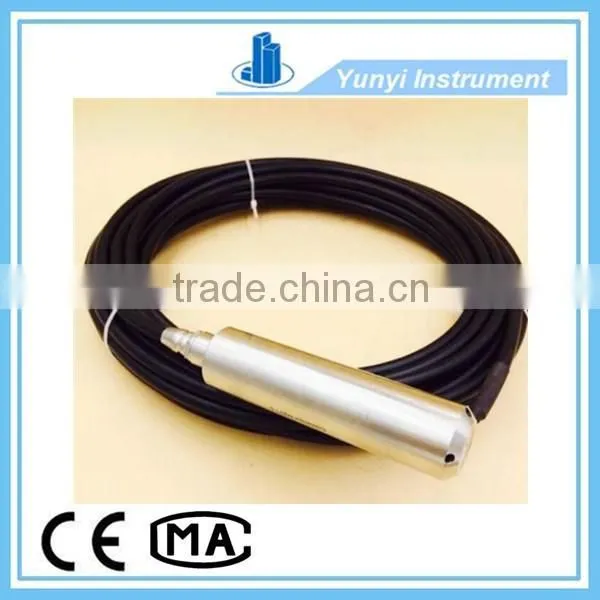

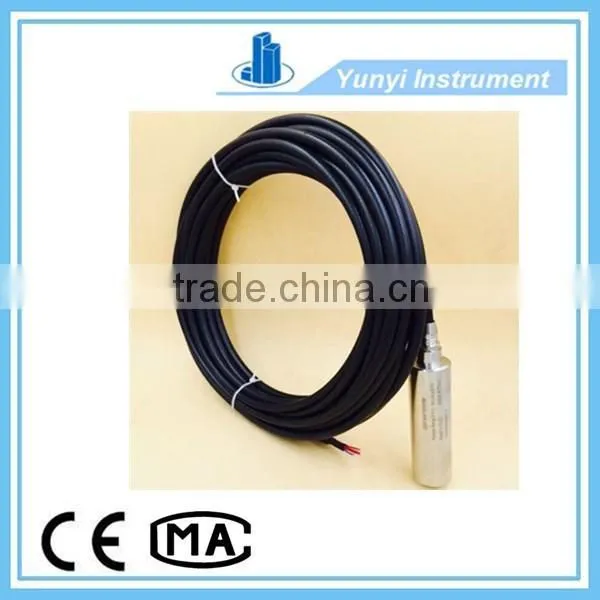

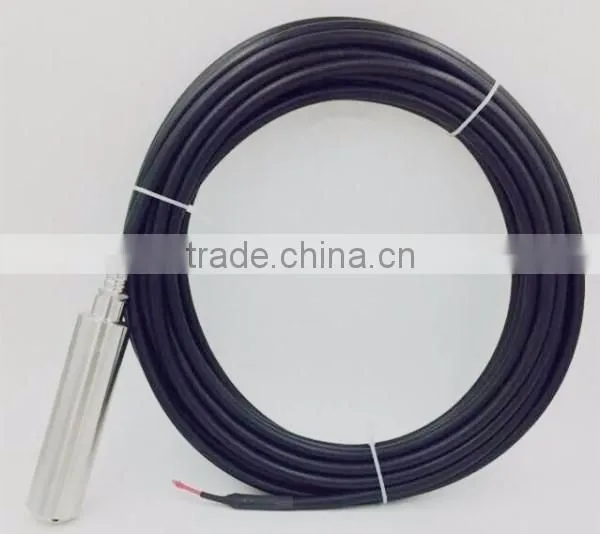

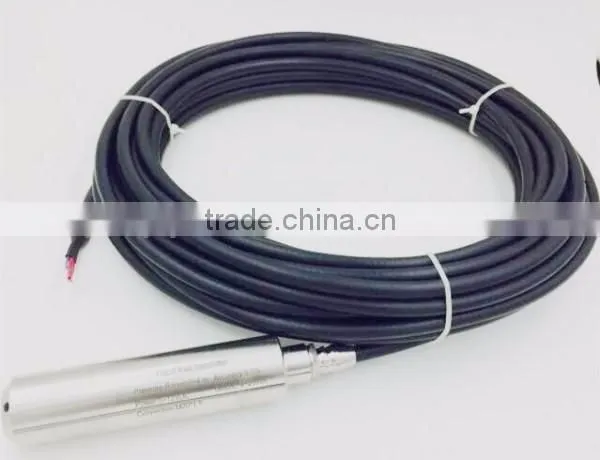

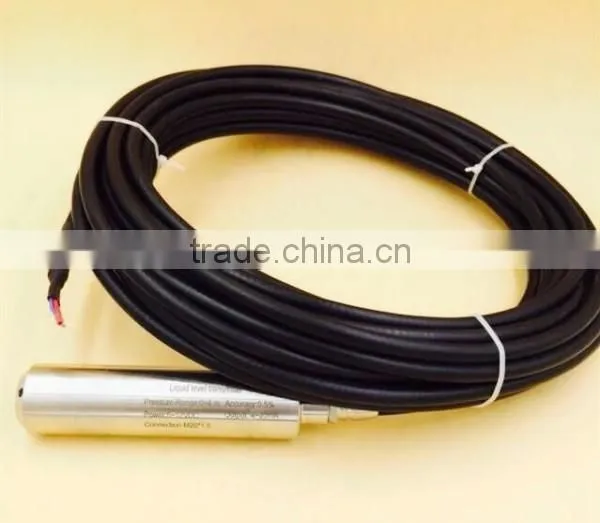

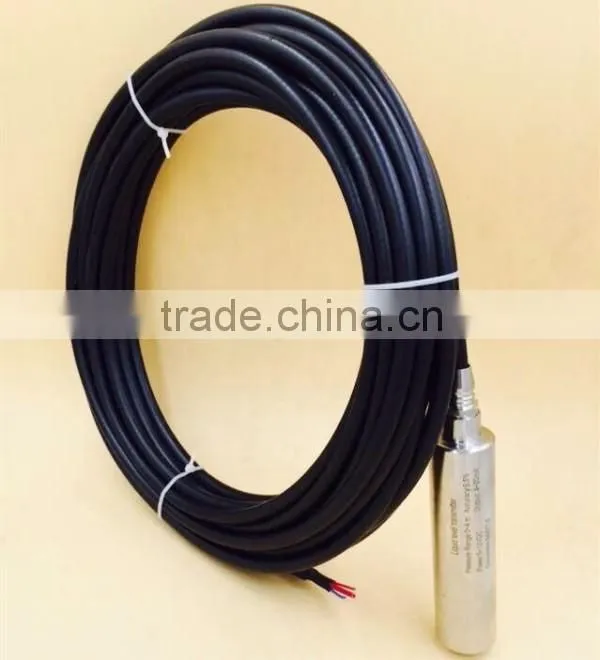

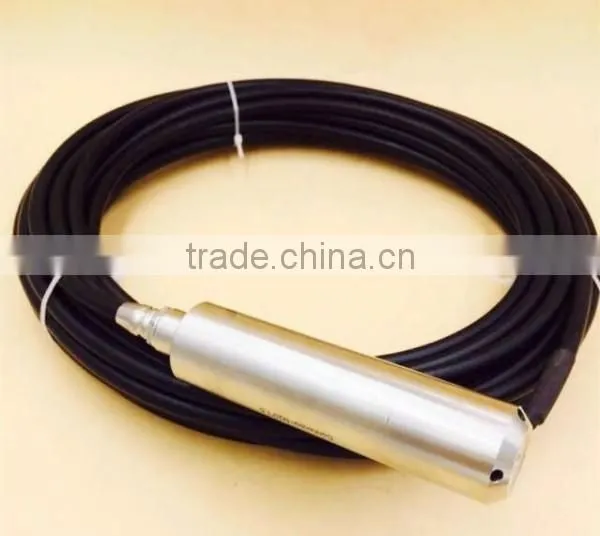

Underwater silicon pressure transducer
Features of Underwater silicon pressure transducer:
A. Adopt imported diffusion silicon pressure sensor chip
B. Advanced SMD technology, ith zero, full-scale compensation, temperature compensation
C. High precision and high stability of amplifier integrated circuit
D. The complete structure, impact resistance, fatigue resistance, high reliability
E. Different output signal(Current, voltage type)
F. Compact structure, convenient installation
G. Electrical connections adopt special encapsulation technology, supporting the 5 core gas
shielded cable, protection grade reaches the national standard IP68
Application of Underwater silicon pressure transducer:
A. The water level of the water tank, oil level in oil tank, liquid level measurement of water sink(oil sink);
B,The water level measurement of wells, water towers, river, reservoir
C,Sewage treatment equipment, sea water, groundwater monitoring
Specification of Underwater silicon pressure transducer :
Medium: Liquid(Weak corrosive)
Pressure type: Gauge pressure
Range: 0-5-10-20-50-100-200m
Output: 0~5VDC/4-20Ma
Accuracy: ±0.25%FS,±0. 5%FS
Supply: 24V Dc(15~30VDC)
Insulation resistance: ≥1000 MΩ/100VDC
Load resistance: Current output type: max 800Ω/ Voltage output type: more than 50KΩ
Temperature of medium: -20~85°C
Ambient Temperature: -20~85°C
Relative humidity: 0~95% RH
Seal Grade: IP68
Over Load: 150%FS
Response time: ≤5mS
Stability: ≤±0.15%FS/ year
Vibration Fluence: ≤±0.15%FS/year(Mechanical vibration frequency 20Hz~1000Hz)
Electrical connection:Full sealed 5 core gas shielded cable
Connection thread: Input type
Material of connection thread: SS304
|
|
|
|
|
|
