2014 New Cement Rotary Kiln for Cement Plant , Cement Making Machinery With Competitive Price by Luoyang Zhongde
US$ 1,000 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
varies
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Building Material Cement Rotary Kiln for Sale With CE&ISO in Bauxite and BentoniteUS$ 1,000 - 9,999MOQ: 1 Set -
2013 Hot Sale Energy Saving Lime/Limestone Rotary Kiln With Low Rotary Kiln Price(2.5*40m)US$ 1,000 - 9,999MOQ: 1 Set
-
China Manufacturer Cement Making Machine Zhongde Rotary Calcination Kiln(2.5*60m)US$ 1,000 - 9,999MOQ: 1 Set
-
40 Years Experience Professional Cement Rotary Kiln Manufacturer Zhonhde Rotary Kiln(3*48m)US$ 1,000 - 9,999MOQ: 1 Set
-
Cement Rotary Kilns/clinker Rotary Kiln/limestone Rotary Kiln(3*100.94m)US$ 1,000 - 9,999MOQ: 1 Set
Condition
New
Production Capacity
varies
Place of Origin
Henan, China
Brand Name
ZHONGDE
Model Number
5.0*74
Voltage
refer to specification
Power(W)
710000
Dimension(L*W*H)
refer to specification
Weight
944t, 944t
Certification
CE,ISO,BV
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.customized rotary kiln2.low heat consumption by 30%
3.stable operation,good performance
4.used in metallurgy,building
Product Description
Introduction of rotary kiln:
Rotary kiln is the key equipment in cement industry for calcinating clinker. It is also used in varies industries, such as metallurgy, Chemical, building, rehractory material, environmental production, etc. The kiln is composed of the cylindrical shell, roller supporting device with thrust roller, driving gear unit movable kiln hood, sealing device at kiln inlet, coal dust pipe device etc.
With a certain slope to the level, the whole kiln body is supporting rollers and fitted with thrust rollers to contral up and down movement of the kiln body. Besides main driving unit for driving system, if is also fitted with auxiliary driving unit so as to ensure the kiln could be kiln head sealing adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing be ebsures.
Types of rotary kiln:
- Cement kiln;
- Metallurgy chemical kiln;
- Active lime kiln;
- Porcelain kiln according;
- Building material kiln;
- Calcined petroleum coke rotary kiln.
Application of rotary Kiln:
- Rotary kiln is the Thermal Equipment, heating materials, in cement industry for calcining clinker.
- It is also used in various industries, such as cement, nonferrous metallurgy, ferrous metallurgy, chemistry, building, refractory material, environmental protection, etc.
Advantages of rotary kiln:
- High productivity;
- Low heat consumption;
- Stable clinker quality;
- High ecomomic efficiency.
Rotary kiln parameter:
| Specification | Capacity(t/d) | Incline of body(°) | Speed(r/min) | Main motor(kw) | Remarks |
| Φ2.5*60 | 168 | 3.5 | 0.516-1.549 | 75 | Alumyte-alumina forge kiln |
| Φ3*48 | 700 | 3.5 | 0.726-3.63 | 110 | Kiln with 5-stage cyclone precalciner |
| Φ3*60 | 3.5 | 0.492-1.476 | 75 | Alumyte-alumina forge kiln |
|
| Φ3*100.94 | 450 | 4 | 0.3-1.503 | 90 | Multiple-drum cooling |
| Φ3.2*46 | 1000 | 3.5 | 0.36-3.57 | 160 | kiln with preheater precalcine |
| Φ3.2*52 | 1200 | 3.5 | 0.343-0.34 | 125 | kiln with preheater |
| Φ3.3*50 | 1300 | 3.5 | 0.676-3.38 | 160 | kiln with plateau suspension preheater |
| Φ3.3*52 | 1300 | 3.5 | 0.266-2.66 | 125 | kiln with preheater precalcine |
| Φ3.5*54 | 1500 | 3.5 | 0.55-3.4 | 220 | kiln with preheater precalcine |
| Φ3.6*70 | 1800 | 3.5 | 0.25-1.25 | 125 | Generating kiln for using ofterheat |
| Φ4*60 | 2500 | 3.5 | 0.396-3.96 | 315 | kiln with preheater precalcine |
| Φ4.15*58 | 5 | 0.35-0.7 | 110 | Zinc leaching(calcine rotary kiln) | |
| Φ4.2*60 | 3000 | 4 | 0.4-3.98 | 375 | |
| Φ4.3*60 | 3500 | 3.5 | 0.396-3.96 | 375 | kiln with preheater precalcine |
| Φ4.5*66 | 4000 | 3.5 | 0.41-4.1 | 560 | kiln with preheater precalcine |
| Φ4.8*74 | 5000 | 4 | 0.396-3.96 | 630 | kiln with preheater precalcine |
| Φ5.0*74 | 6000 | 4 | 0.35-4 | 710 | kiln with preheater precalcine |
| Φ5.6*87 | 8000 | 4 | Max4.23 | 800 | kiln with preheater precalcine |
| Φ6.0*95 | 10000 | 4 | Max5 | 950*2 | kiln with preheater precalcine |
Rotary kiln picture:

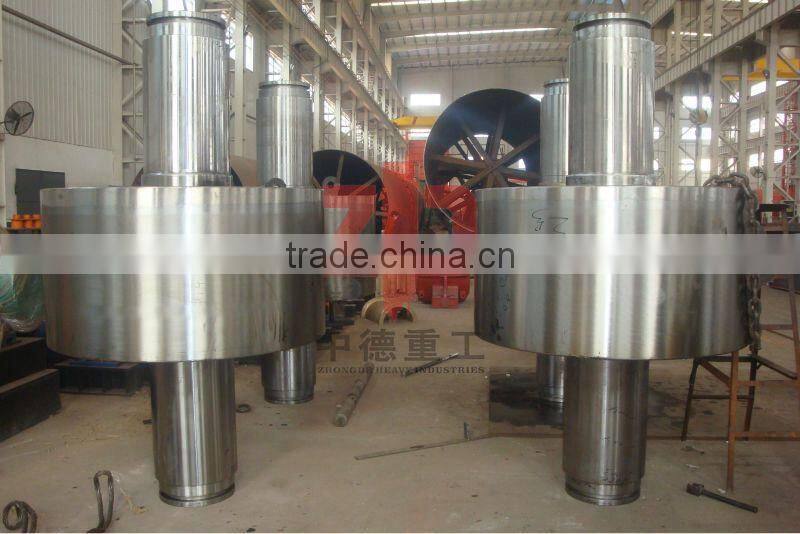

Rotary kiln manufacturing process:

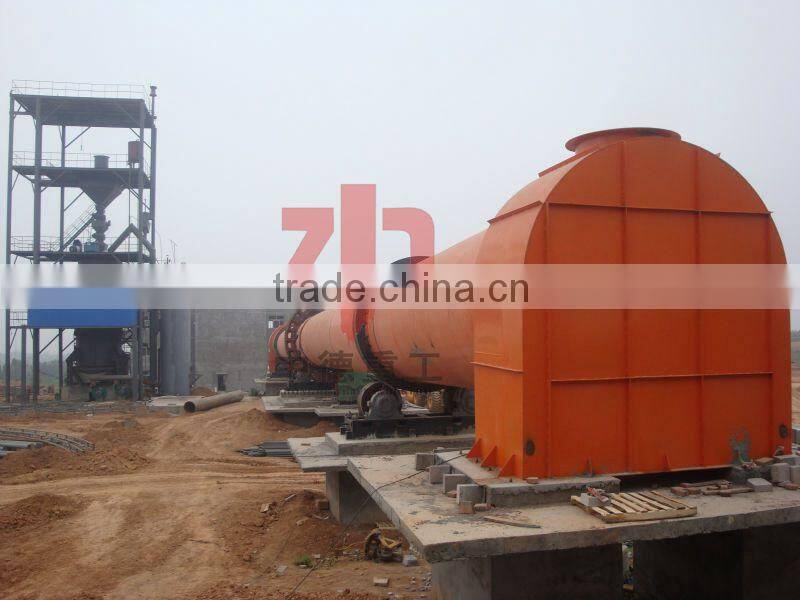

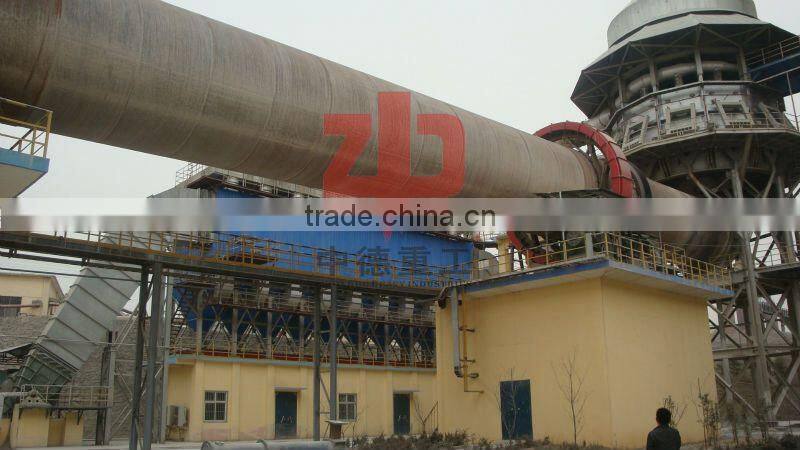

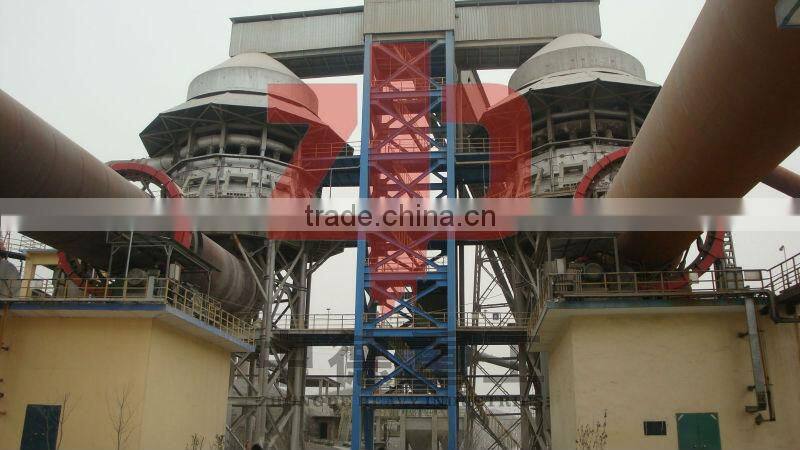

Rotary kiln on site:
Packaging & Shipping
Packaging of rotary kiln:
- Sand blasting, coat with high quality paint;
- Product wrap by PP-Bubble;
- Load container, Spear Parts in wooden case

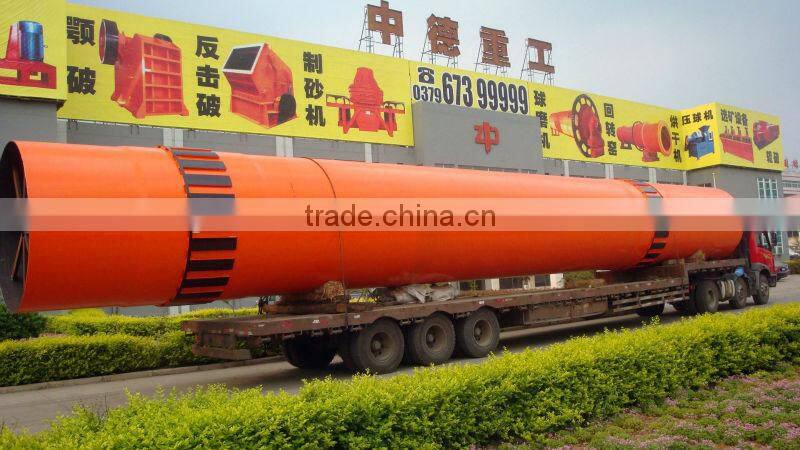

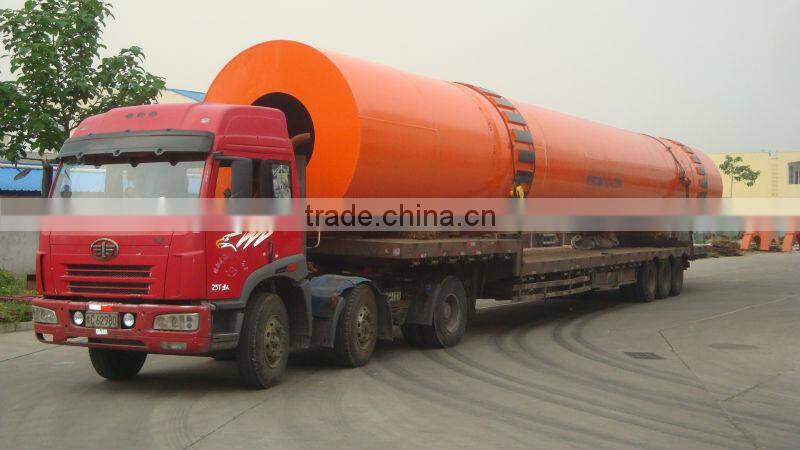

Rotary kiln shipment:
Our Services
Our service of rotary kiln:
- Installation and adjustment of rotary kiln: The Installation and adjustment of our rotary kiln is provided by our company. Technicist of rotary kiln will provided by supplier for buyer to assist the work such as weding connecion of shell body ,equipment installation, adjustment, training etc.
- Quality of guarantee of rtary kiln: Three-guarantees of rotary kiln and warrantly period id one year.
- Technical support of rotary kiln is provided from the beginning to the end.
- Spare parts of rotary kiln are serviced for sale in the whole year.
Company Information
- Luoyang Zhongde Heavy Industries Co., Ltd, whose predecessor was Luoyang Mining Machinery Cement Equipment Factory, was founded in 1959.
- Over the past fifty years, it has made significant contribution to the economic development in China.
- In 1995, it took the lead in changing into the joint stock company, which brought rapid development to the company .
- In 2006, the old factory relocated into the large modern industrial workshop in Luoxin Industrial Park.
FAQ
How about the quality of your rotary kiln?
- Our rotary kiln is manufactured strictly according to national and international standard.
- We take a test on every rotary kiln before delivery.
How about price of your rotary kiln?
- We can give the lowest price of rotary kiln than market one.
- We do quotation of rotary kiln as soon as possible for any custome.
- Discount of rotary kiln can be given according to quantity.
How about the after-sale service of your company?
- Our engineer is aviliable to installation rotary kiln overseas.
- The guarantee period of our rotary kiln is one year.
