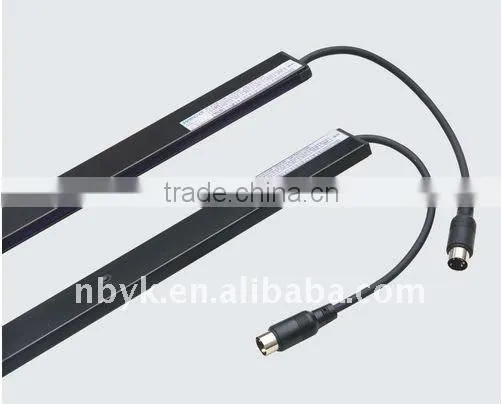

Name: YK-627B6 elevator parts

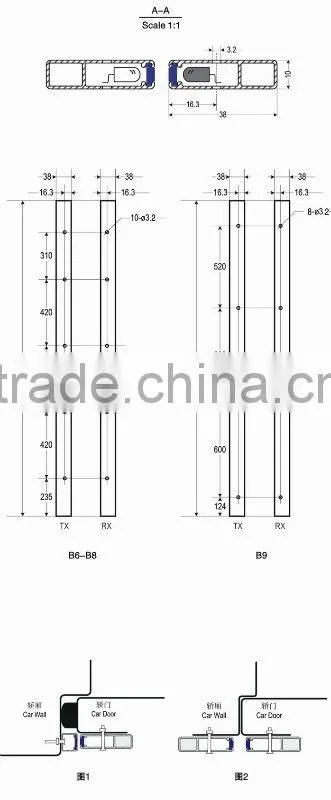

It is for instaling on elevator car door.
Specification:
Response time: 45ms@relay output, 21ms@transistor output
Number of Infra Red Diodes:17Diode sets
Scanning Beams:94~33Beams
Detecting Height:20~1840mm
Infra Red Diodes Range:117.5mm
Redundancy: None
Power Consumption:<=4W or 100mA@DC24V
Operating Temperature:-20°C~ +65°C
Tolerance: Up/down:+-10mm/7° Back/forth: +- 3 mm/5°
Light Immunity:<=100000Lux
EMC (EN 12015)
(EN 12016)
EFT: Passed Level 2tests D(+-1KV)
Surge: A(Air discharge+-15KV,Direct discharge+-6KV)
Radio-frequency:D(10V rms,150Khz~1.96GHz,80%)
Vibration:Vibration 20 to 500Hz 4hrs per X-Y-Z axis,sinusoidal vibration 30Hz rms 30mins per X-Y-Z axis
Detecting Range:0~3m
Protection Level:IP54(TX RX),IP31(Power box)
Voice Reminder:Buzzer in RX,after continuous detection for 15s,buzzer ON.
Voice Reminder:Buzzer in RX,aftercontinuous detection for 15s,buzzer ON.
LED Interpretation:Green LED power indicator in receiver, Red LED status indicator in receiver,Green LED power indicator in power box, Red LED status indiator in power box.
We hope to de the best service for you and hope to start business with you in the near future.
Welcome to contact us!
