Digital Manometer China Wise Pressure Gauge

digital manometer china wise pressure gauge Standard packing (or according to the customer request)

Specifications

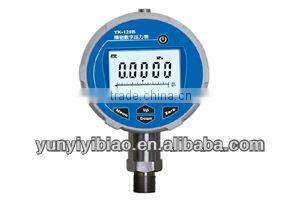

Digital manometer china wise pressure gauge

The  description of   digital manometer china wise pressure gauge :

YK-100 digital pressure gauge imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance, anti-vibration, high stability, etc.; signal processing circuitry using the latest ultra-low-power processors, signal processing and power management chip chips, using a large capacity, high performance lithium battery-powered, no external power supply. 5 percentage using the digital display and analog display, intuitive readings, the product precision can reach 0.05 for ordinary pressure gauge, precision pressure gauge and pressure transmitter calibration and test, instead of the more traditional mechanical pointer pressure table-site measuring pressure.

Technical data of   digital manometer china wise pressure gauge

1 Measuring range: 100KPa1KPa ~; 260MP

2 Output signals: RS485, RS232, ACI wireless communications, 4 ~ 20mA, etc.

3 Accuracy class: 0.05, 0.1, 0.2, 0.4

4 Display: 5 digit dynamic display + Analog bargraph

5 Overload pressure range 1.5-3-fold, depending on the measurement range may be

6 Close current: less than 10 microamps

7 Power supply: 3.6V high-energy lithium battery life 2-3 years or rechargeable batteries

8 Medium temperature: -40 °C ~ 90 °C

9 Process connection: M20 × 1.5 (external thread)

Features:

  1 Micro-power, high accuracy, high-definition digital LCD six;
  2 Small size, simple operation, easy field calibration pressure gauges and precision pressure measurement using;
  3 Intelligent calibration, linear repair, two seconds and zero magnetic induction pen
  4 LCD display with dynamic pressure, visual display percentages pressure
  5 Pressure unit: mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)
  6 Dynamic pressure measurement can be displayed online curve, the peak record function (optional);
  7 A variety of additional features. If RS486 interface output, 4-20mA output, data output USB interface instant messaging, storage function (optional)

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

If you need this digital manometer china wise pressure gauge , please visit the website
