Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System photo-1
Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System photo-2
Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System photo-3
Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System photo-4
Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System photo-5
Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System photo-6
US$ 75.3 - 129.9 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
H99
Model Number:
H99
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name H99
Model Number H99
Usage Other, Home security

Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

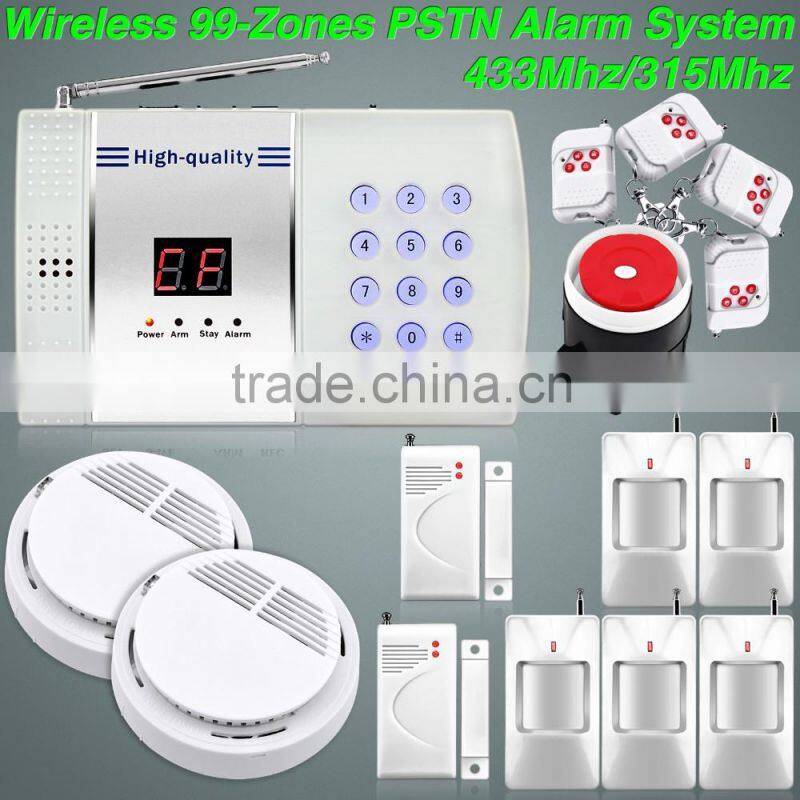

System Overview

This alarm consists of main engine of alarm and various wireless-connected accessories. When people enter the defense region illegally, the main engine will give sound of sirens and call the hosts, so hosts can return home or inform neighboring relatives to cope with the instantly. Also, they can monitor the sound on the spot.



Features

 1.Anti-interfere function. When someone interferes it with same frequency, the control unit will activate siren to alarm.

2.Support anti-decode with remote control

3.6 programmable Defense zone available, with status LED.

4.The control panel can register 99 sensors and detectors. Every defense zone can set independently arm, disarm, delay alarm and so on.

5.Have the function of one-key arm. User can start Home arm or Out arm freely by keeping pressing one key on remote control to satisfy your need.

6.Can set the reminder sound of defense zones. Will remind users of remembering arm the alarm system when going out.

7.It stores 2 groups of monitoring center and 6 groups of user phone numbers to dial out and play the recorded message if there is an alarm.

8.Can arm/disarm with remote control or keypad on the control panel

9.Can arm/disarm / listen-in by calling the host phone number.(The phone numbers of control panel).

10.Have the function of reminder for circuitry failure. For example, if telephone line is cut or short, the control panel will alarm.

11.Have inbuilt backup battery and can continue to work and last for 8---10 hours when electricity is cut or in failure.

12.With international Ademco Contact ID, can work with the monitoring center



Applicability Area
Applies widely to banks, stores, warehouses, offices and home, it has many kinds of protection abilities like anti-theft, anti-robbery, fire prevention, gas leakage protection and most important, emergency calls.



Descriptions

Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

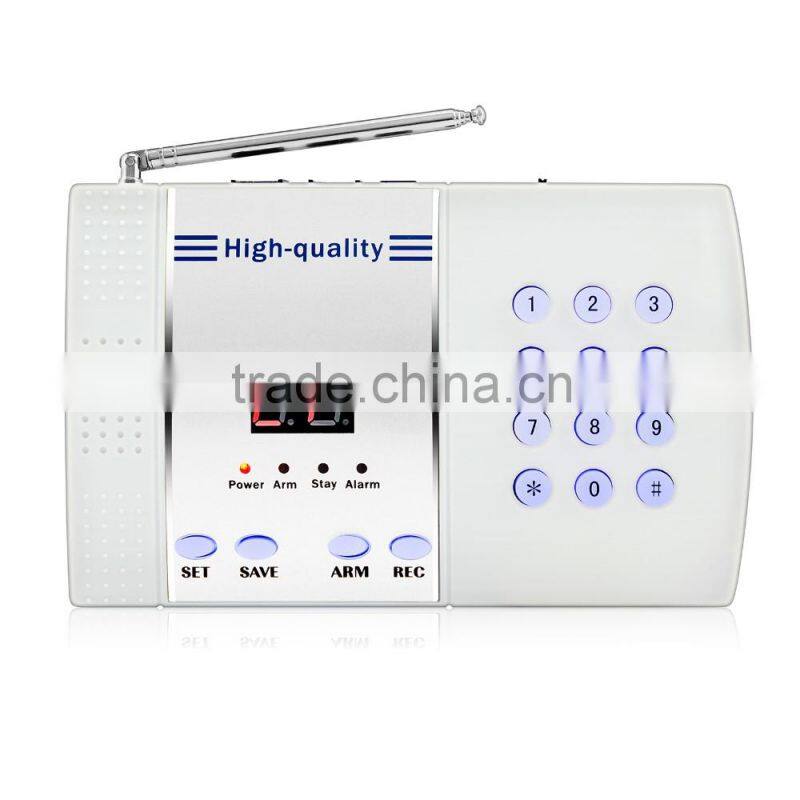

Alarm Panel
1.Power supply: DC12-15V
2.Static current: 25mA
3.Power: less than 1W
4.Output voltage: DC 12V
5.Wireless Frequency:433Mhz/315Mhz
6.Environment temperature: -10 to 55 centi-degree
7.Siren output: above 400mA, 12V
8.Enviroment humidity: 40~70%
Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

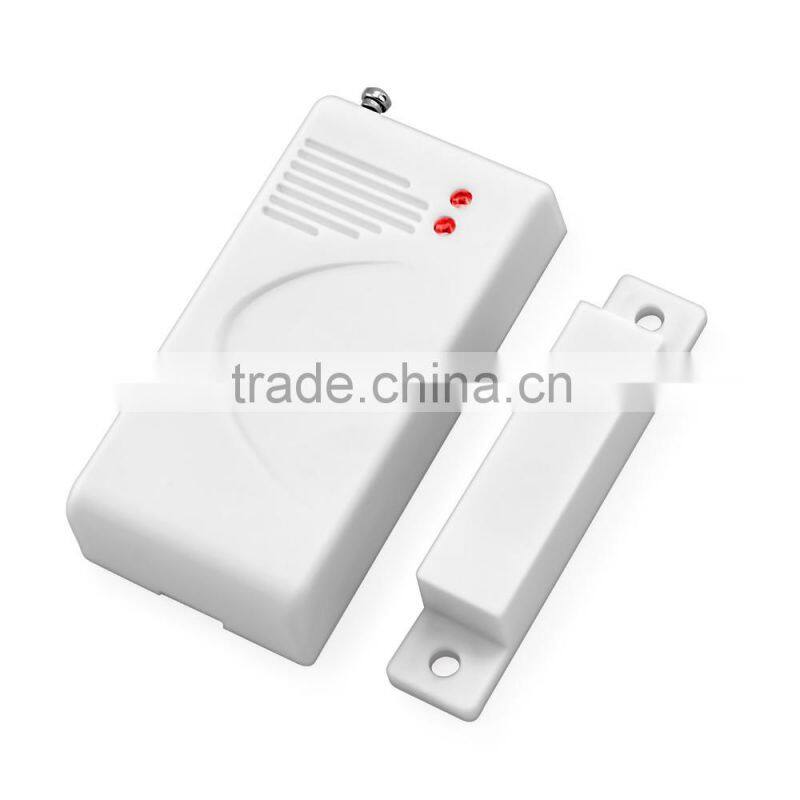

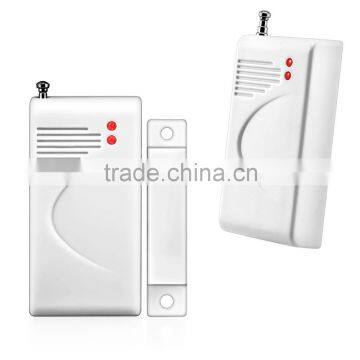

Door or Window Sensor

1.Suitable for Door, Window, drawer, cabinet...etc

2.Power Supply : 12V battery x 1 pcs (battery included)

3.Operation Current:8~15mA

4.Quiescent Current:3uA

5.Operation Temp: -10C~50C;Humidity:<90%

6.Installation: less than 15mm between 2 parts.

Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

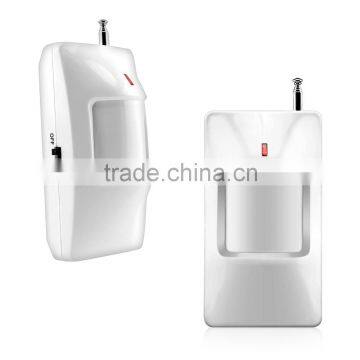

 PIR Motion Sensor

1.Power Supply : 9V battery x 1 pcs (battery included)

2.Alarm Current:less than 15mA

3.Operation Temp: -10C~50C((approx 14F ~ 104F));Humidity:<90%

4.Installation Height: About 2M. Installation Angel:About 60~110

5.Detecting Distance: 5-8M

6.Transmissons Time>1s

7.Wireless Freq:433Mhz /2262/1.5M

8.Indoor:10~15M

9.Detect angle : Horizontal: 110, Vertical: 60

10.Dimension:105mm*60mm*40mm(about 110g)

Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

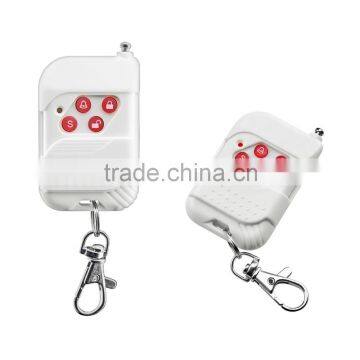

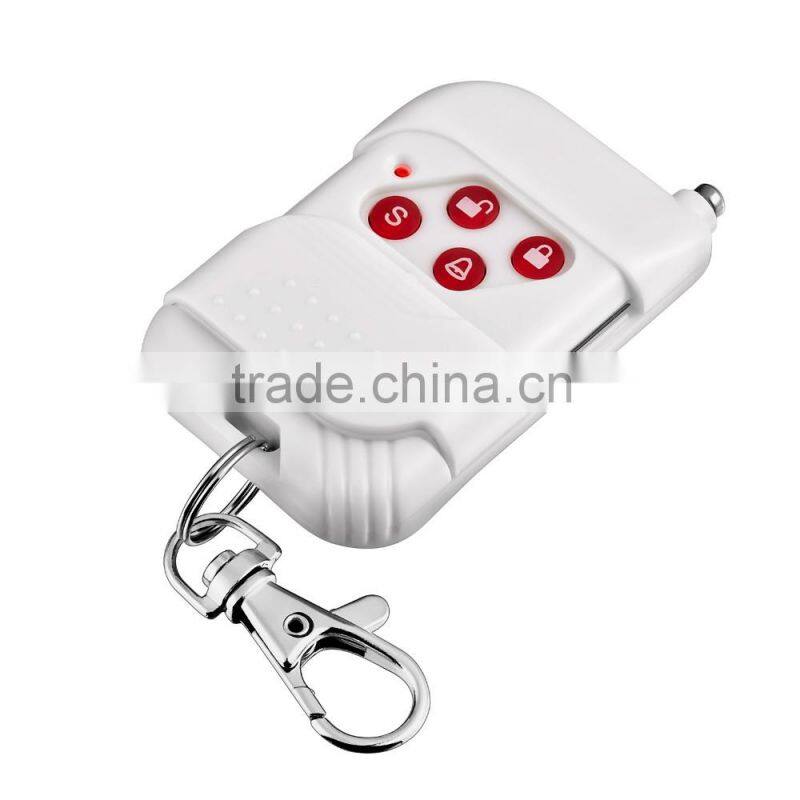

Remote Control

 Operation Current:10MA
2262 Learning Code
4 Button:Arm Away Mode, Arm At home Mode, Emergency Mode and Disarm Mode
Sending Distantce:Outdoor 80m(no obsctale), Indoor:8~10M
Operation Temp: -10C~50C;Humidity:<90%
Dimension:58mm*37mm*14mm(about 35g)
Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

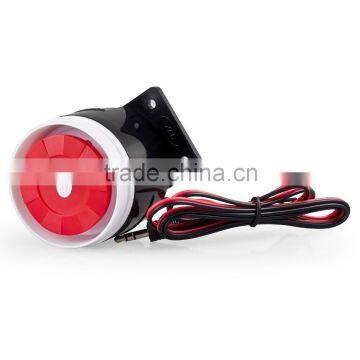

Wired Siren

loud with 110 dB while the alarm system is triggered.

Sound : 110 dB/m

Working current : 150~200mA

Operational temperature:- 25~+55

Humidity: <90%

Fire and Smoke Detector for Auto-Dial Wireless PSTN Home Security Alarm System

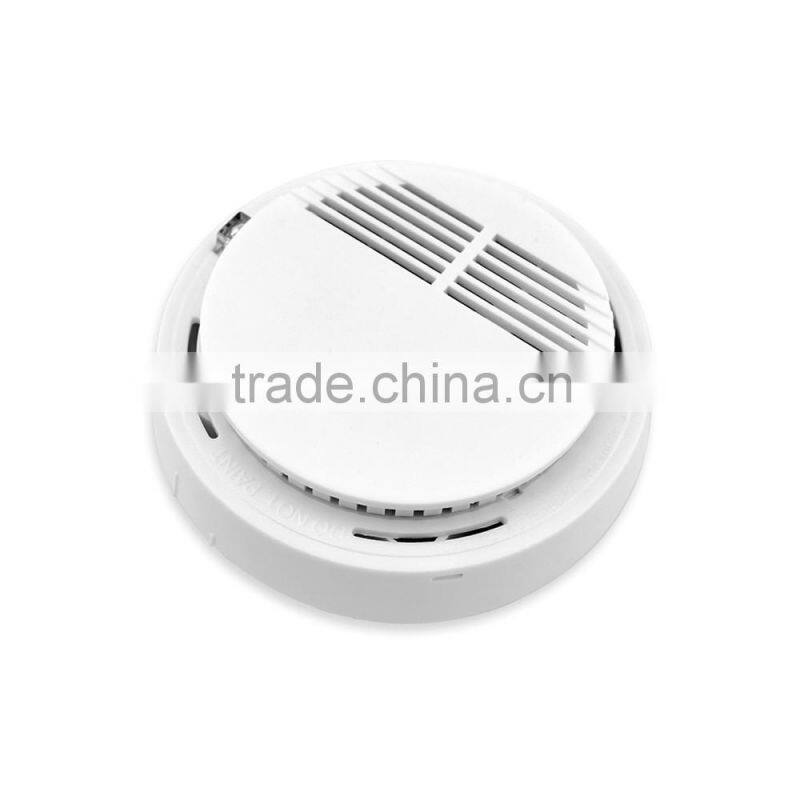

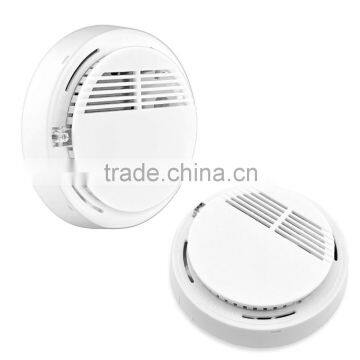

Wireless Smoke Detector

1, 9V battery (Included)
2, Alarm Current: 10-30mA
3, Standby Current: 10μA 4, Frequency: 433/315Mhz
5, Operating Temperature: -5°C ~ +50°C
6, Operating Humidity: 95%RH
7, Detecting Area:20 square meter
8, Smoke Sensitivity: 0.65%/FT +/-15.5%/FT
