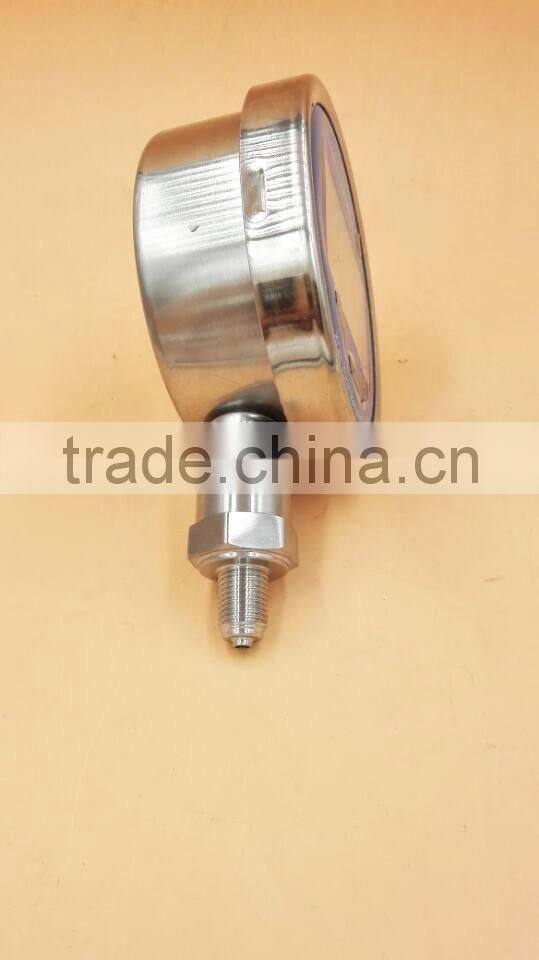

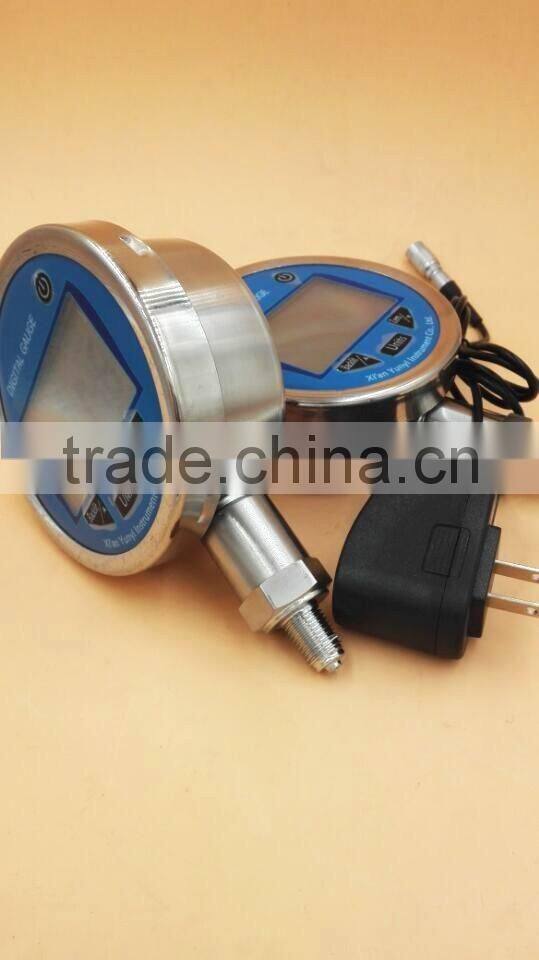

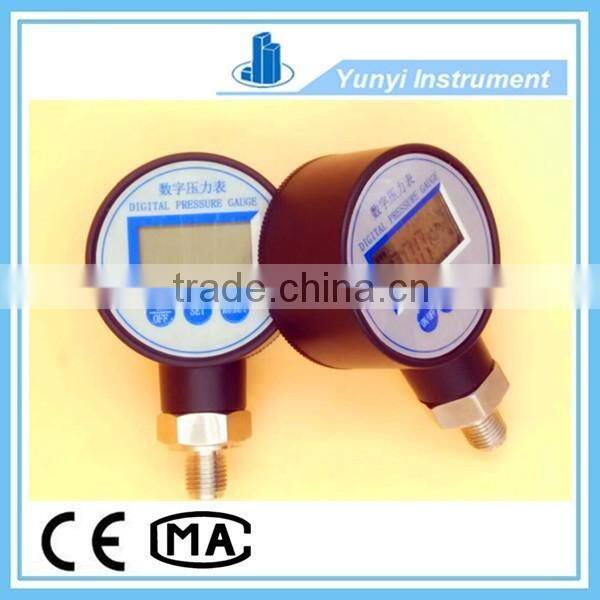

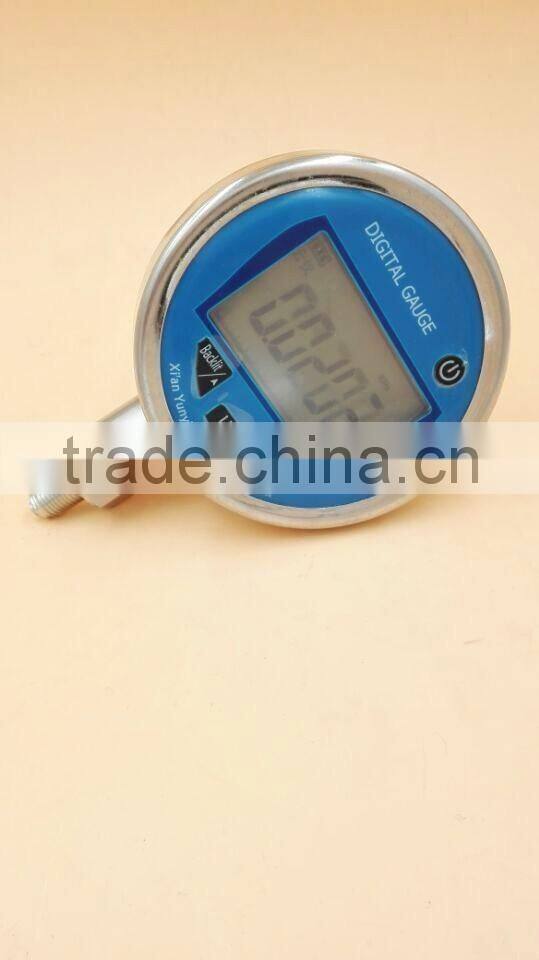

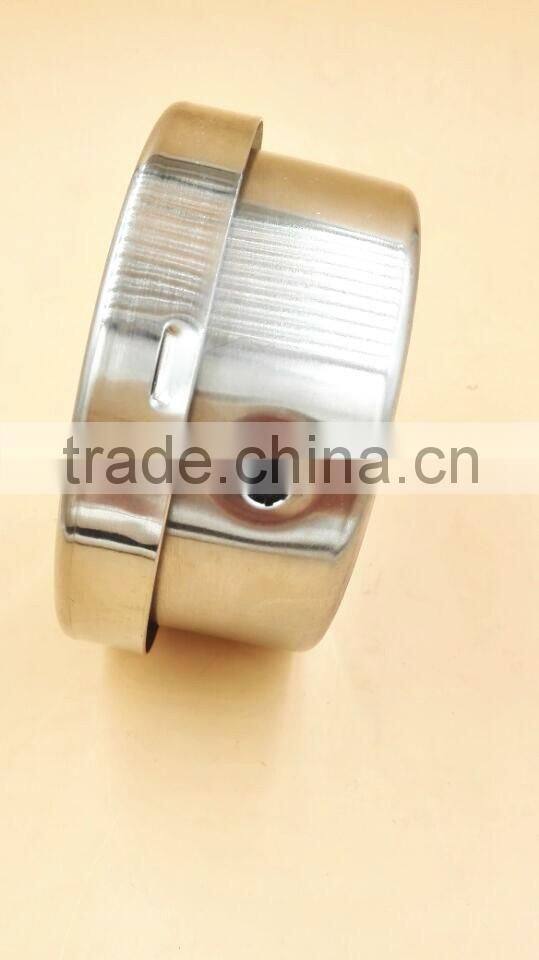

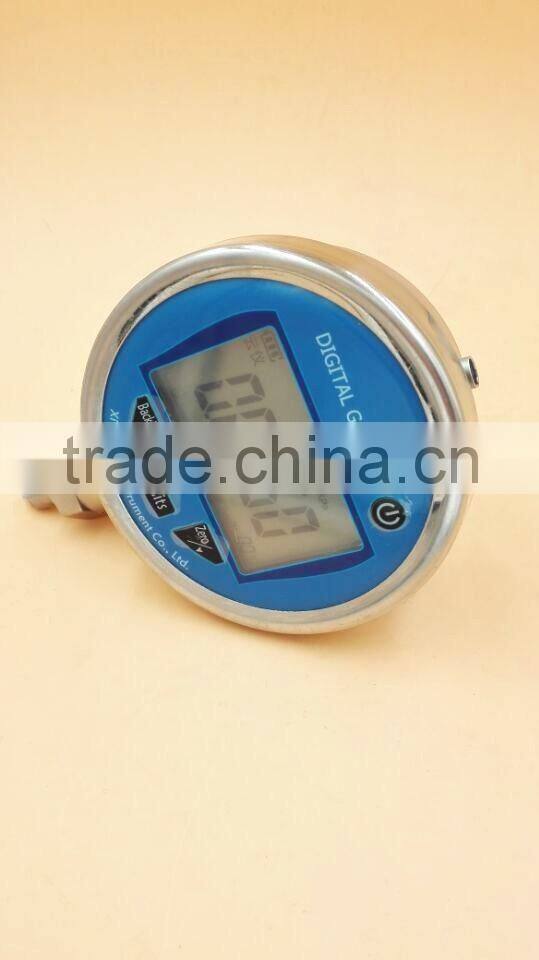

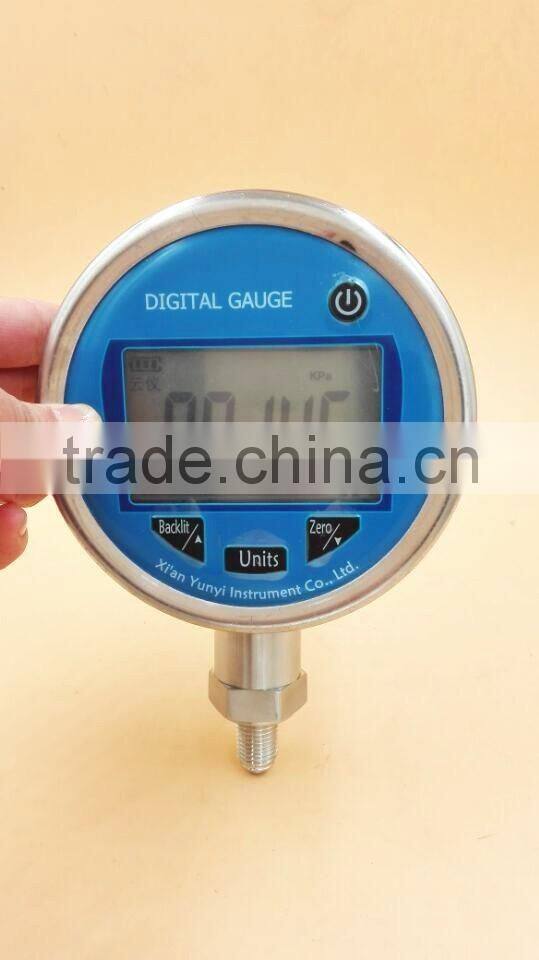

Digital Vacuum Pressure Gauge

Digital vacuum pressure gauge
standard export packing.

Digital pressure gauge  Description
YK-100 digital pressure gauge imported sensor, superior performance, high accuracy, corrosion resistance, impact resistance, anti-vibration, high stability, etc.; signal processing circuitry using the latest ultra-low-power processors,signal processing and power management chip chips, using a large capacity,high performance lithium battery-powered, no external power supply. percentage using the digital display and analog display, intuitive readings, the product precision can reach 0.05 for ordinary pressure gauge, precision pressure gauge and pressure transmitter calibration and test, instead of themore traditional mechanical pointer pressure table-site measuring pressure.

Digital pressure gauge Features
1 Micro-power, high accuracy, high-definition digital LCD six;
2 Small size, simple operation, easy field calibration pressure gauges and precision pressure measurement using;
3 Intelligent calibration, linear repair, two seconds and zero magnetic induction pen
4 LCD display with dynamic pressure, visual display percentages pressure
5 Pressure unit: mmH2O mmHg psi kPa MPa Pa mbar bar pressure up to ten units (optional)
6 Dynamic pressure measurement can be displayed online curve, the peak record function (optional);
7 A variety of additional features. If RS485 interface output, 4-20mA output, data output USB interface instant messaging, storage function (optional)

Digital pressure gauge Specifications
1 Measuring range: -100KPa1KPa ~; 260MP
2 Output signals: RS485, RS232, ACI wireless communications,4 ~ 20mA,etc.
3 Accuracy class: 0.05, 0.1, 0.2, 0.4
4 Display: 5 digit dynamic display + Analog bargraph
5 Overload pressure range 1.5-3-fold, depending on the measurement range
6 Close current: less than 10 microamps
7 Power supply: 3.6V high-energy lithium battery life 2-3 years or rechargeable batteries
8 Medium temperature: -40 °C ~ 90 °C
9 Process connection: M20 × 1.5 (external thread)

Digital Vacuum meter  Product selection table:

If you need this digital pressure gauge, please contact
