" China ergonomics electric sit stand desk "
Specification:
1. ergonomics electric sit stand desk for 600mm to 1200mm.
2.Ergonomic furniture for your healthy protection.
3.Sit and stand workstation.
4,CE approved,two years warranty .
Technical Parameters:
PRODUCT FEATURE:
Description |
Mode |
Picture |
Main Data |
|

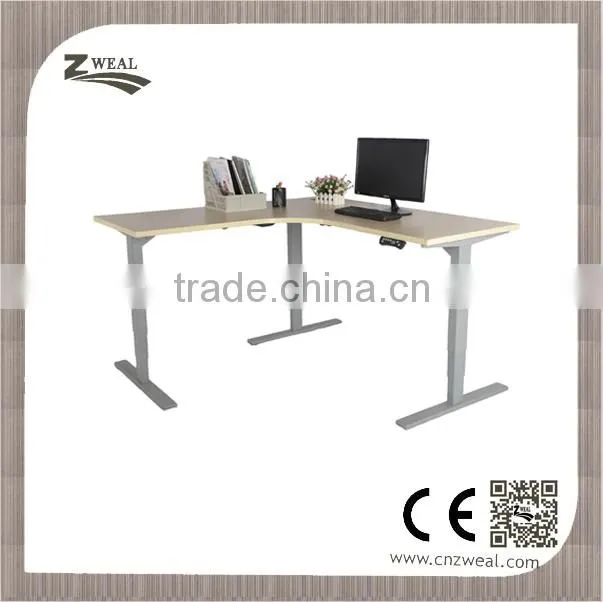

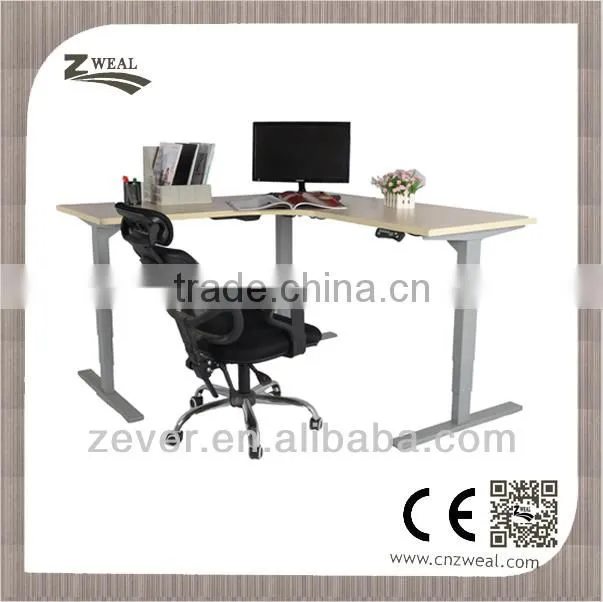

L-shape electric lifting office table
Electric height adjustable office desk
|
ZWE0333-R |
|
Height Range (cm): |
Lifting Speed (mm/s): 38 | |||
Lifting Speed (in./s): 1.5 | |||
Max. Load of Frame Only: 150Kg (528LBS) (Desktop excluded) | |||
Input Voltage: | |||
| |
Output Voltage: 24V DC |
||
Duty Cycle: 10%,ntinuous use | |||
Desk frame material: steel coated with spay paint | |||
Desktop material: Density board or bamboo board |
The whole set includes desktop, table frame, table feet, lifting column, control box and control panel.
Attention:
- 2 year warranty on motor
- 5 year warranty on frame
- Desktop needed should be informed
- Other frame sizes can be customized
- Color available: silver, black, white and customized,
Product Parameter
1. Ergonomic design & posture variation allowed: Desk height range from 60cm to 120cm. Apply to each individual perfectly!
2. Intelligent handset panel with one reset button "S", four height memories "1,2,3,4", up and down button “↑ ↓”,digital display, effortless operation.
3. Solid desk frame made of steel, coated with spray paint in black, silver or customized.
4. Table frame can scalable from 1000mm-1600mm according to your requirement.

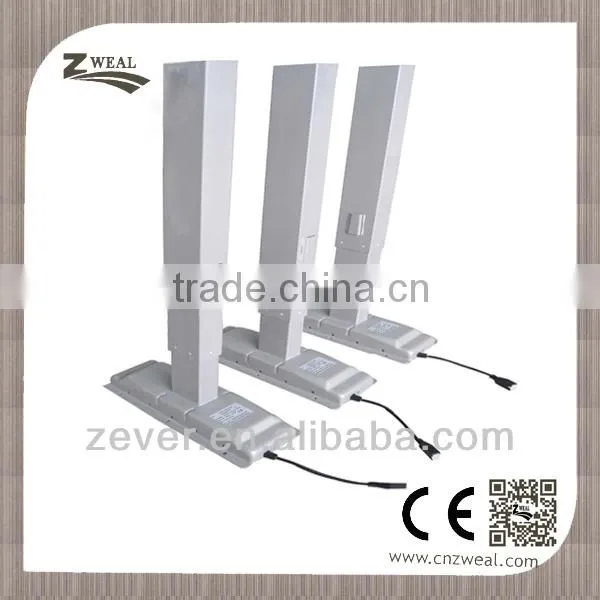

5. Lifting colums with safe and stable motor.
When the operating temperature is higher than 75 degree, the motor will stop working automatically.
Motor operate normally when the temperature decrease to 45 degree.
6. Connect the Cables as per the diagram below. Use the adhesive-backed Cable Clips to secure the Cables and Handset cable, so they don’t sag .
7.Packing Details
|
Packing |
Details |

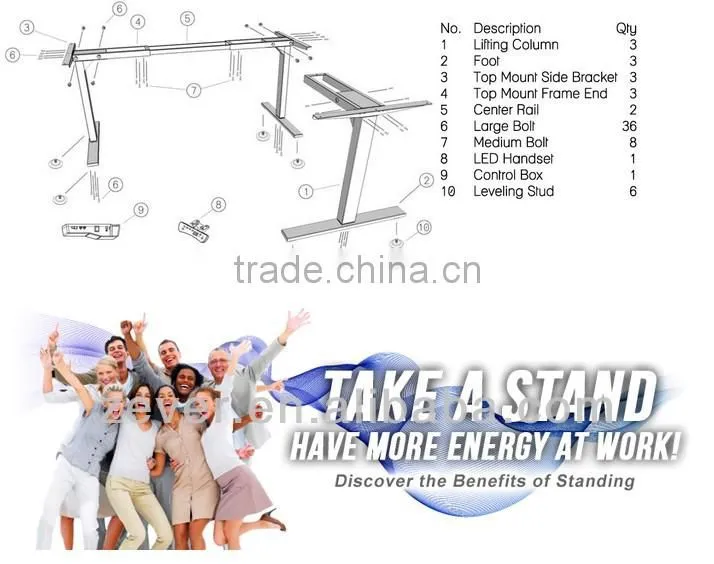

The whole set includes: Lifting column:3 PCS Top Mounting Frame Ends:3pc Center Rails:2 PCS Top Mounting Brackets: 3 pc Table Feet: 3 PCS Leveling stud:6 PCS Control box: 1pc LED Handset: 1pc Wares:4PCS(1 power cord; 2 -43” cables;1-59” cables) Screws and washers 44pcs total |
Carton size |
Table frame (+3 lift columns) :1050mm*500mm*185mm |
|
N.W |
Table frame (+3 lift columns):43kg |
|
G.W |
Table frame (+3 lift columns):44kg |
|
Remark |
Welcome personalized pack |
|
|
Packing Picture
|
|
THE DELIVERY PROCESS
COMPANY INTRODUCE
Changzhou Zweal Office Equipment Co., Ltd. is one OEM manufacture specialized in " office table " electric height adjustable desks and lifting columns.
Our products are mainly applied in working, studying, reception and so on . Office table include Synchronized electric height adjustable desk , Single column electric height adjustable desk ,Three feet electric height adjustable desk and single motor electric table.
