Specifications
0~100Mpa Piezoresistive Silicon Pressure SensorExperienced manufacturer
CE approved

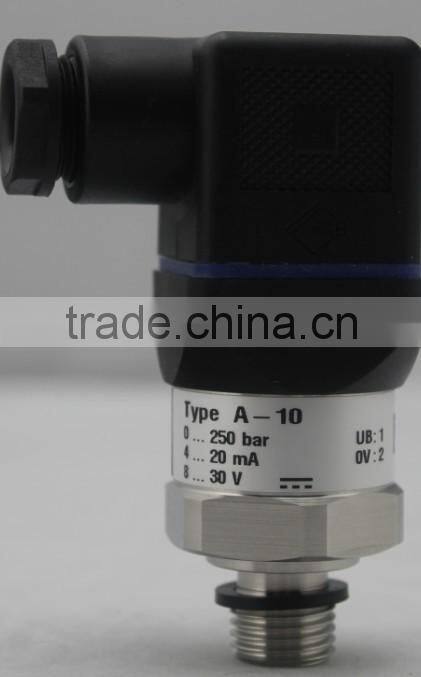

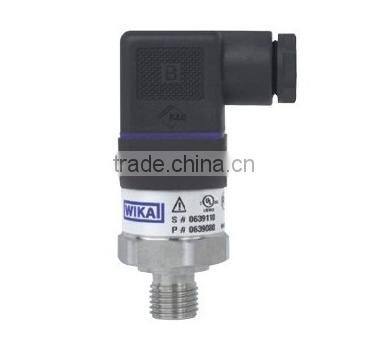

0~100Mpa Piezoresistive Silicon Pressure Sensor r
Application of 0~100Mpa Piezoresistive Silicon Pressure Sensor:
Machine building
Machine tools
Measurement and control technology
Hydraulics and pneumatics
Pumps and compressors
Special Features of 0~100Mpa Piezoresistive Silicon Pressure Sensor:
Measuring ranges from 0 … 1 to 0 … 600 bar
Non-linearity 0.25 % or 0.5 %
Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others
Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2m
Process connection G ¼ A DIN 3852-E, ¼ NPT and others
Parameters of 0~100Mpa Piezoresistive Silicon Pressure Sensor:
Model |
A-10 |
Output signal |
4-20mA, 0-10V, 0-5V and others |
Pressure Range |
0-0.1bar to 0-600bar |
Pressure Interface |
G1/4, 1/4NPT, M20*1.5 and others |
Electric Interface |
L plug interface, M12*1, 4-needle type, With cable |
Auxiliary power supply |
8-30VDC(14-30VDC when 0-10V) (can select 8-36 and 14-36 when 0-10V) |
Nonlinear(3% of the Range) |
<=±0.3% (according to IEC 61298-2) <=±0.6% Keep vertical installation and bottom connection |
Accuracy(3% of the Range) |
<=±0.5 (Nonlinear 0.3%) <=±0.6 (Nonlinear 0.3% and signal output 0-5V ) <=±1.0 (Nonlinear 0.6%) |
Material |
Wetted material: process connection 316L; pressure sensor 316L(0-10 bar rel XM-13) Wetted parts material: Silicone oil(suitable for the absolute range of 0-6bar and 0-25) Case: 316L |
Allowable temperature |
Measure Medium: 0-80°C Environmental temperature: 0-80°C Storage temperature: -20-80°C |
Fatigue life |
Ten million times cycle with maximum load |
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
