SS316 Single action spring return angle seat valve
Choose model :
BJZF — 15 B
| | |
Series Pipe Size Type of Gateway
15: G1/2 B: Normal Closed
20: G3/4 T: Normal Open
25: G1
32: G1 1/4
40: G1 1/2
50: G2
65: G2 1/2
Specification:
2/2 WAY ANGLE SEAT VALVE
spring return angle seat valve
OPERATED WAY:DIRECT OPERATED
CONTROL WAY:DOUBLE OR SINGLE ACTING
PIPE SIZE:G3/8~G2(STANDARD)
DN:DN13~45mm
PN:THE HIGHEST PN:1.6MPA
MEDIUM:neutral gas and liquid
VISCOSITY:≤600mm2/s
MEDIUM TEMPERATURE:-10~+180°C
CIRCUMSTANCE TEMPERATURE:-10~+60°C
MATERIAL:STAINLESS STEEL
SEALING MATERIAL:PTFE
INSTALLATION:HEAD IS UP STRAIGHT
SPECIALITY:FREE OF MAINTENANCE,EASY INSTALLATION,ULTRALONG LIFE SPAN ,QUICK PRESPONSE AND RELIABL
|
Item |
Normal Closed |
ZF-15B |
ZF-20B |
ZF-25B |
ZF-32B |
ZF-40B |
ZF-50B |
ZF-65B |
Normal open |
ZF-15T |
ZF-20T |
ZF-25T |
ZF-32T |
ZF-40T |
ZF-50T |
ZF-65T |
|
Material of body |
Stainless Steel |
|||||||
Operating method |
Plunger Pilot |
|||||||
Applicable medium |
Air, water, oil, Steam(50CST Bellow) |
|||||||
Pipe size |
ZG1/2 |
ZG3/4 |
ZG1 |
ZG1 1/4 |
ZG1 1/2 |
ZG2 |
ZG2 1/2 |
|
Nominal diameter mm |
13 |
20 |
25 |
32 |
40 |
50 |
65 |
|
Kv (m3/h) |
4.2 |
8 |
19 |
27.5 |
42 |
55 |
90 |
|
Pressure range Mpa |
0~1.6 |
0~1.1 |
0~1.1 |
0~1.5 |
0~1.25 |
0~1.1 |
0~0.52 |
|
Min. control pressure mpa |
0.39 |
0.39 |
0.42 |
0.5 |
0.44 |
0.32 |
0.32 |
|
|
Executor dimension φmm |
50 |
50 |
63 |
80 |
100 |
125 |
125 |
|

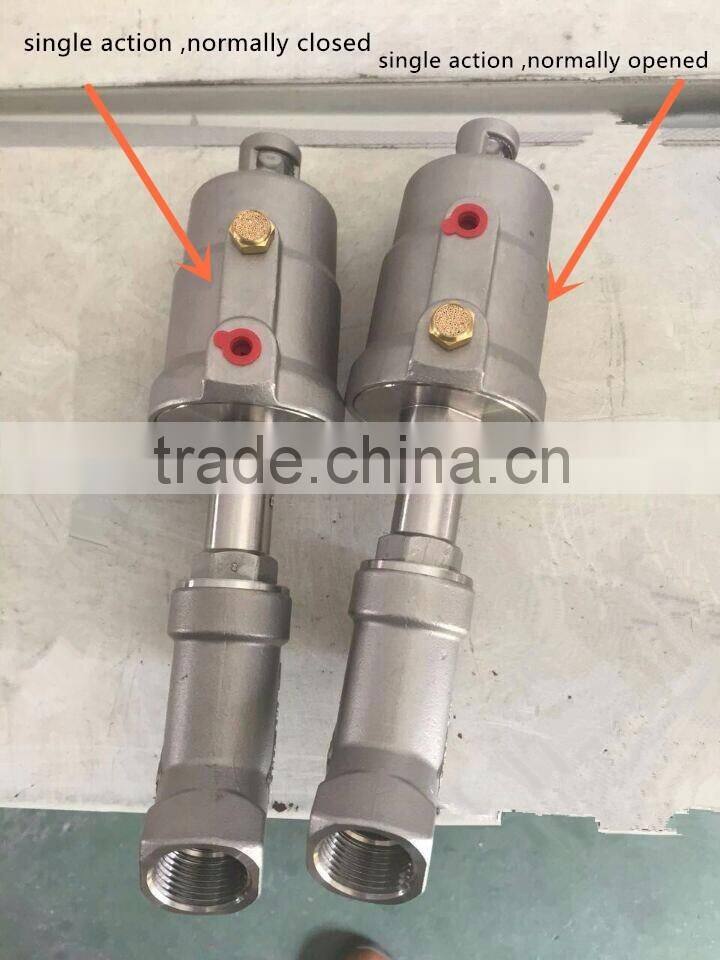

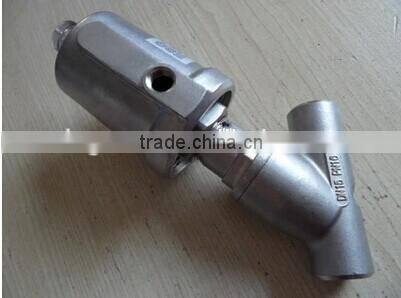

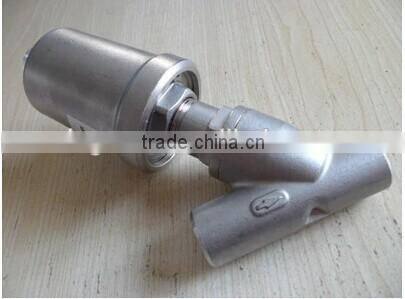

Images for spring return angle seat valve
Other two-way angle valve :
Q: How many days the products can be sent out?
A: To the standard products, we have enough stock.
Q: How to make the payment?
A: Bank T/T, Western Union, Paypal, L/C.
Q: How to make the delivery?
A:To the order with smaller weight, they will be sent by TNT/FEDEX/DHL. Others will be sent by air or sea
Warranty one year for single seat control valve valveWe stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in BRAND NMPC condition in OEM or Original Packaging. Orders are packaged with care to make sure your items arrive in perfect condition.
Welcome to contact us anytime , send us enquiry to get an offer .
