Help CenterNew Orinigal IR 808nm 500mw TO56 TO18-5.6mm Infrared Laser Diode
Related Products
-
High Stability IR 808nm 500mw TO18-5.6mm Infrared Laser DiodeUS$ 2.5 - 3.2MOQ: 1 Piece -
New Original 650nm 200mw 3.8mm Package Red Laser Diode ML129F27US$ 1.6 - 2MOQ: 1 Piece
-
Oclaro 635nm 638nm 200mw 180mw TO18-5.6mm Orange Red Laser Diode HL63263DGUS$ 69 - 75MOQ: 1 Piece
-
Mitsubishi 650nm 658mw 80mw 100mw 110mw 120mw TO18-5.6mm Red Laser DiodeUS$ 2.8 - 3MOQ: 1 Piece
-
Mitsubishi 650nm 658nm 10mw 20mw 30mw 40mw 50mw 60mw 100mw TO18-5.6mm Red Laser Diode ML101J25US$ 2.8 - 3MOQ: 1 Piece
Item List:(OSRAM,NICHIA,MITSUBISHI,QSI,ROHM,OCLARO,OPNEXT,SANYO,SHARP And so on)
405nm: 20mw, 30mw, 40mw, 100mw, 120mw, 150mw, 200mw, 250mw, 300mw, 500mw,1000mw
450nm: 80mw, 100mw, 1w, 1.4w, 1.6w, 3.5w
520nm: 30mw, 50mw, 90mw, 100mw, 120mw, 500mw, 1w, 1.2w
532nm: 15mw, 25mw, 30mw, 50mw, 100mw, 300mw, 400mw, 500mw, 1w
635nm: 5mw, 10mw, 15mw, 20mw, 30mw, 120mw, 170mw, 180mw, 250mw, 300mw, 500mw, 700mw
650nm: 5mw, 7mw, 10mw, 60mw, 80mw, 100mw, 200mw. 500mw, 1w
780nm: 100mw, 150mw, 200mw
808nm: 200mw, 300mw, 500mw, 1w, 2w, 3w, 5w
830nm: 30mw, 200mw
850nm: 100mw, 200mw, 300mw, 500mw
980nm: 50mw, 100mw, 200mw, 300mw
Specification:
1.Wavelength:808nm Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
2.Output Power: 500mw Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
3.Can Type: 5.6 mm Floating Mounted with Protection device
Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
New Orinigal IR 808nm 500mw TO56 TO18-5.6mm Infrared Laser Diode
Excellent beam quality High stability Advanced technology Long Lifetime
Absolute Maximum Ratings (Tc = 25℃) High Quality Openxt 0.5watt 405nm 500mw Blue Violet Laser Diode For Machine
| Item | Symbol | Absolute Maximum Ratings |
Unit |
Opetical Output Power (Tc25℃) |
Po | 500 | mW |
| PD Reverse Voltage | Vr(PD) | 2 | V |
| Storage Temperature | Tstg | -40~+80 | ℃ |
| Oprating Case Temperature | Tc | -10~+40 | ℃ |

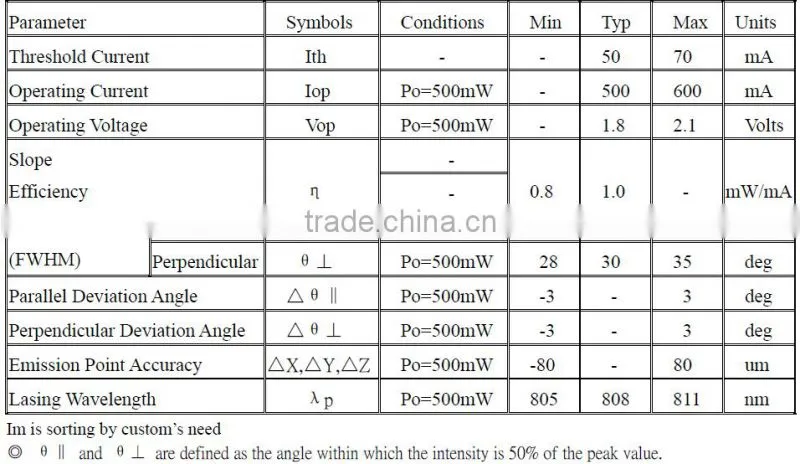

Electrical and Optical Characteristics (Tc=25℃)

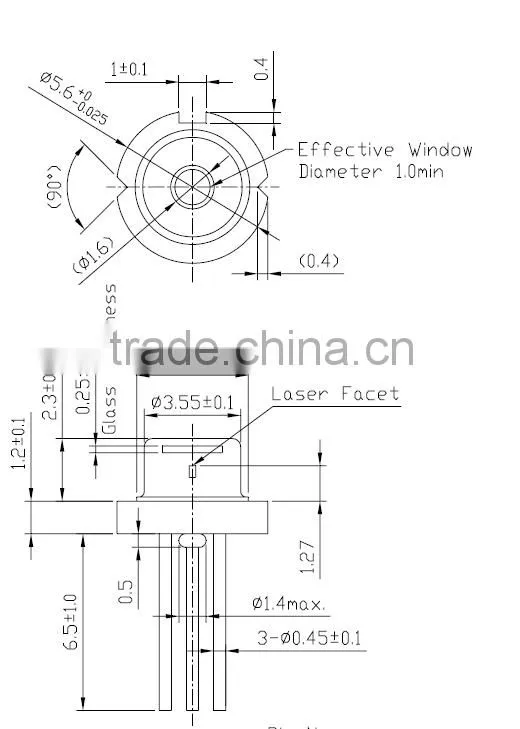

1.TO18-5.6mm packing. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
2. 100pieces/box, 10boxes/ctn. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
3. Original packaging brand new 808nm 500mw infrared laser diode.
4. This is a high-efficient semiconductor laser diode which provides emission wavelength of 808nm and stabdard light output of 500mw. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode

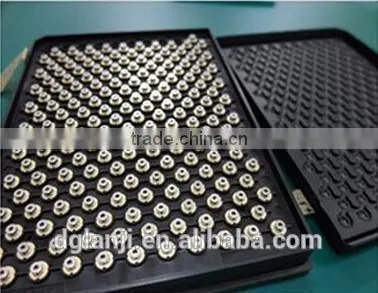

5. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
Contact Information:
Name: Tracy Ding
Skype: tracyding13
Whatsapp:+86 13532504883
High Quality Openxt 0.5watt 405nm 500mw Blue Violet Laser Diode For Machine
Shipping:
*1-3 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
*And it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
1.Following up the case, recording the entire process and all the voice from each customer. Solution will be provided within 48 hours.
2.Before or after purchasing galvoscanner from us, if you have any technical questions,please send e-mail to our service mailbox, we will give you professional reply in time. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
3.Online services: SKYPE, mail, voice phone, message. You could contact us at any time. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
4.All products have 1-year warranty. If there is no man-made problem,we will replace or repair for your freely. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
5.We would appreciate any of your suggestions for helping us to keep improving our service and product. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
6.OEM accepted. Favorable Price 808nm 500mw TO56 5.6mm Infrared Laser Diode
