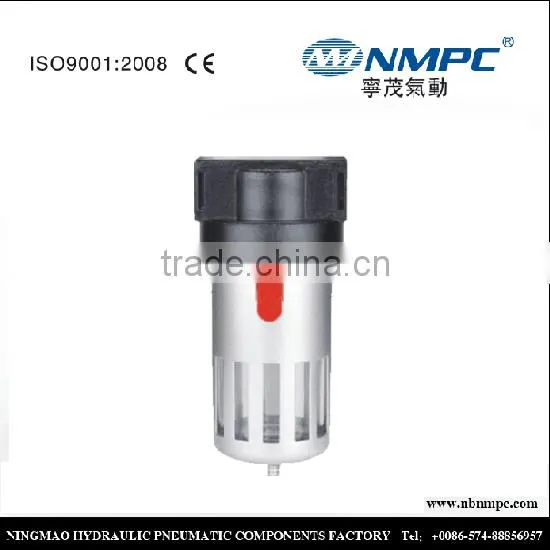

AF,BF series protective cup cover iron Filter valve
Specifications
Air Filter
Filtering grade: 40aa
Proof pressure: 1.5MPa
Operating temperature: 5-60degree
Body Material: Die-cast Aluminum
| Guarded | ||||
| Model | AF2000 | BF2000 | BF3000 | BF4000 |
| Fluid | Compressed Air | |||
| Proof Pressure(MPa) | 1.5MPa=15kgf/cm2 | |||
| Max.Working Pressure(MPa) | 0.95MPa=9.5kgf/cm2 | |||
| Pres. Regu.(MPa) | 0.05~0.85MPa=0.5~8.5kgf/cm2 | |||
| Ambient Media Temperature(°C) | 5~60 | |||
| Filter Precision | 40 micron=40μm | |||
| Thread Size | 1/4" | 1/4" | 3/8" | 1/2" |
| Bowl Capacity(CM3) | 15cc | 60cc | ||
| Filtration Material | Fibre or Copper | |||
| Draining Type | Manual DrainAir shut-off drain | |||
| Body Material | Aluminum Die-casting Forming | |||
| Container cup Material | PE | |||
| Protective Cup Cover | iron |
|||
Our campany has high technical ability in production, inspection and equipment testing .special lines in pneumatic producting,researching ,such as solenoid valve .adopting advanced and efficient management model .using the basic principles of " market is the first ,customer is the first , the quality is the first " we are positive,pr-agmatic innovative and enterprising now we own the sales and serive networks system all over the country at the same time our products aare saled in so many countries and areas ,such as middle east ,europe united states , southeast asia and other countries and regions,and have received high reputation from all customers
we wholeheartedtly welcome the old and new customers at home or abroad to cooperate with us together to create refulgence future by CSV as a bridge between us.
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Payment Terms
Pay by Paypal , T/T, L/C ,West Union. Alibaba Escrow, Ali- express store .
Customers can choose which payment ways that you accept, paypal is most useful and safe, please don’t refuse
paypal fee when you choose it.
Warranty: Great Quality Products
We stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in BRAND NMPC condition in OEM or Original Packaging. Orders are packaged with care to make sure your items arrive in perfect condition
