high speed plane uv drying oven with unloading system for pvc, paper,uv glue machines for sale
high speed plane uv drying oven with unloading system for pvc, paper,uv glue machines for sale

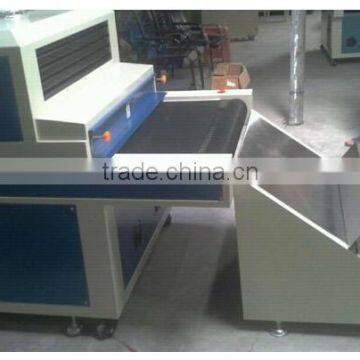

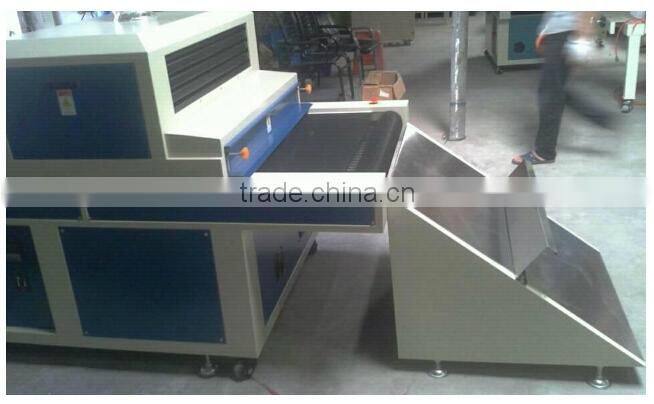

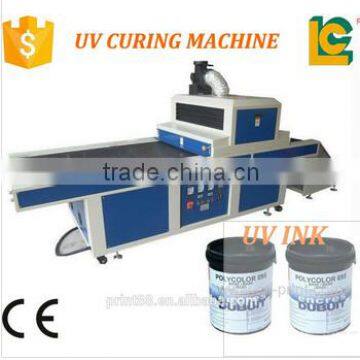

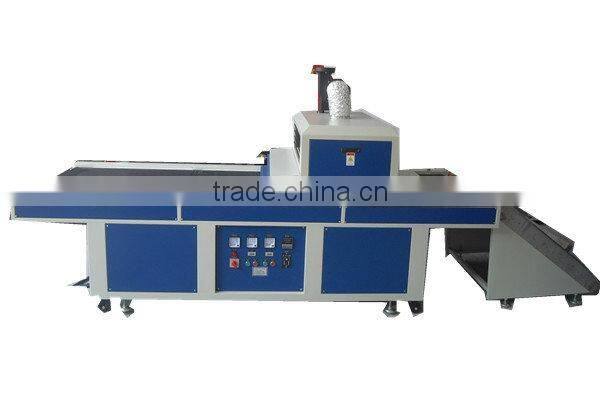

The description of the uv drying oven:
Our LAST NEW UV CURING MACHINE TM-800UVF-L be fit to UV drying PVC ,PAPER OFFEST UV coating ,UV polishing,UV glue, soft PCB after printing UV ink , plastic UV printing. electronic product UV spary, packing products UV drying .

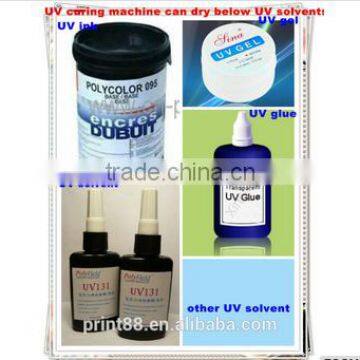

Our UV LAMP is high UV frequency.( 360-720NM). It to fit amost UV INK ,UV glue. Our UV Lamp useful time can sure 1000-1200 hour. TM speed change.Belt runing speed is 0-10M/min.
The parameters of the uv drying oven:
| Model NO | TM-800UVF-L |
| UV Drying product | 800*100*3000mm |
| Conveyor belt size | L3000* W800MM |
| UV Lamp power | 2PCS*3KW /380V |
| Total wattage | 7.5KW |
| Wind fan wattage | 500W/380V |
| motor wattage | 1000W/1P/380V |
| Conveyor speed | 0~10m/min |
| Speed change ways | Continue |
| UV Machine Dimension | 3020*850*1450 |
| Weight | 320kg |
| Free fitting | 3KW UV lamp for TM-800UVF-L |
| Price Term | FOB Shenzhen |
| Packing | plywood case |
16 hours online services
8:00 am--12:00pm (Monday- Saturday)
24 hours phone call services (Monday- Sunday)
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
Our company:
Luen Cheong Printing Equipment Group Ltd. established in 1991,which is professional in develop, manufacture and sales the Screen printer, Pad printer, Hot stamping machine, Heat transfer machine, Peripheral Equipment &Accessory. With the long time experience in manufacture special printing equipment, we are focus on making the good quality printing equipment and whole solution service for domestic and aboard.
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
The packaging and shipping of the uv drying oven
1.Keep the machine cleaning
2. Refence the outside drawing of work piece to make holder and model.
3. Washing the part of slide weekly, and feeding the lubricating oil.
4. Deal with the water in the filter regual, for protect the pneumatic system transfer.
5.the size of Pad Plate must fit for the size of Inkwell
6. Pay attention to the choice of pad:
The hardness of pad includes the “soft”, “medium” and “hard”. If prints fine design, you should choose the hard pad, while prints on accidented surface, use the soft pad, furthermore, the volume and shape of pad should be similar with size of the design and surface shape of the work piece.
7. Usage of ink:
According to different kinds of work pieces, such as plastic, glass or metal, etc. you should choose different inks, and the ink should be stirred before pouring into the ink cup.
8. When operation of the machine is paused, you should let the ink scraping system go on working in order to prevent the ink from air-drying.
9. During printing, you should infuse thinner into the inkwell according to different air-dry speed of the inks in order to keep the proper viscosity of the ink. After infusing the thinner, stir the ink immediately. If the pad is stained, clean it with the cleanser.
10. When the printing finished, need to wash
Certification:
