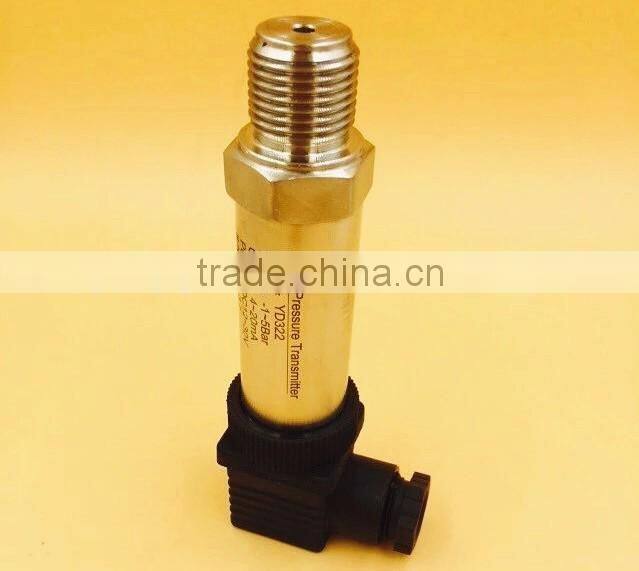

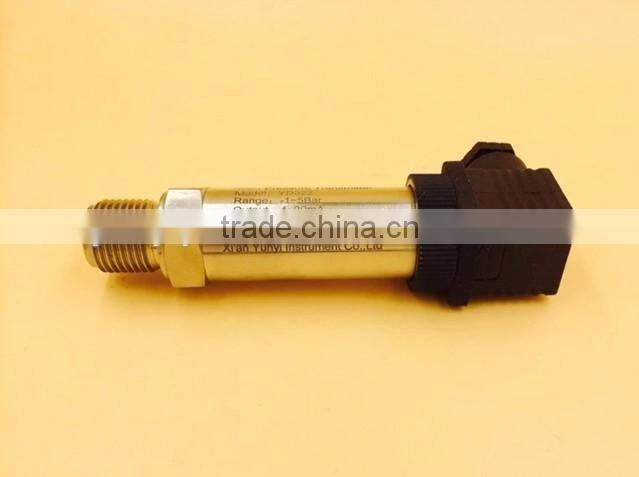

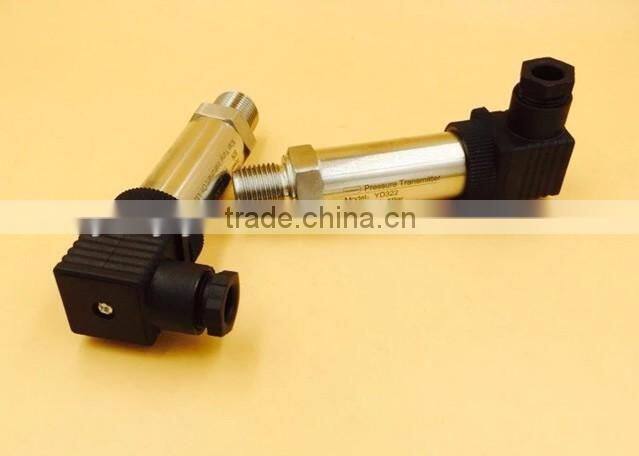

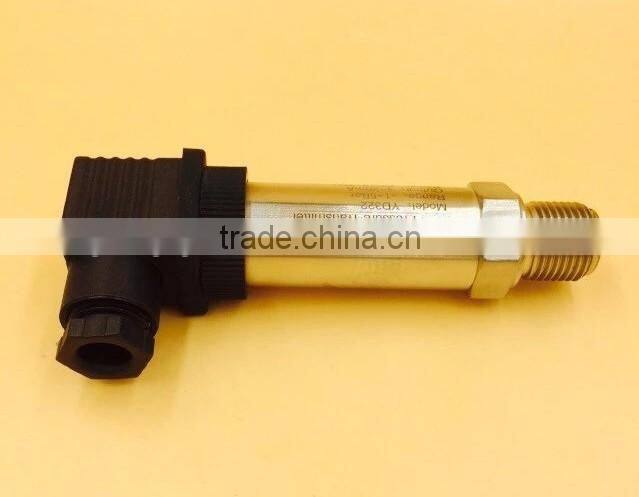

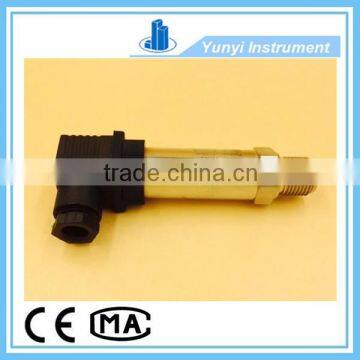

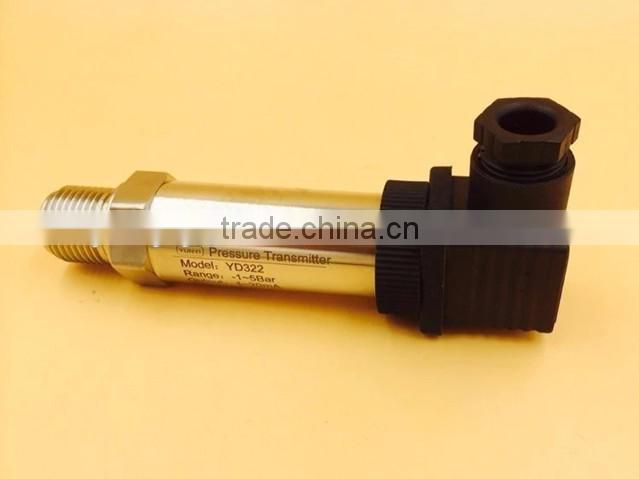

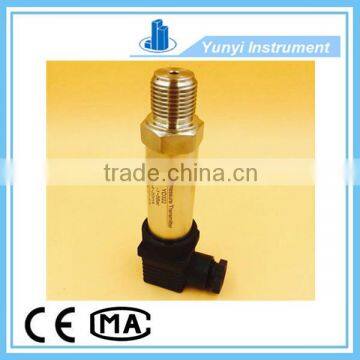

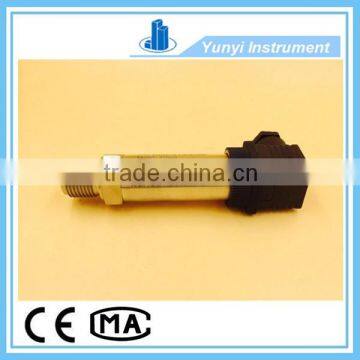

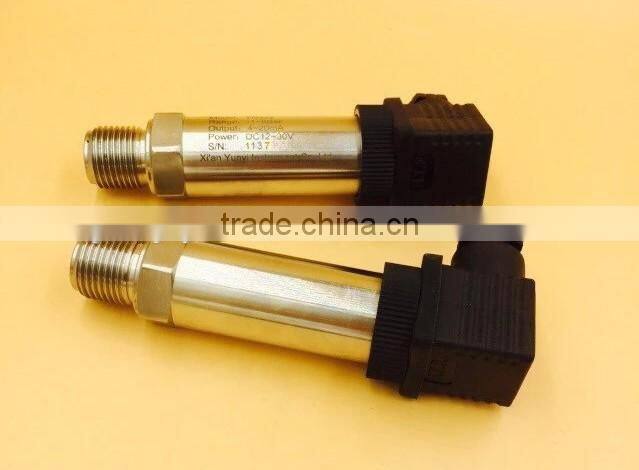

G12 male thread pressure transducer
Description of G12 male thread pressure transducer:
G12 male thread pressure transducer is produced with proprietary technology, adopting imported silicon sensitive elements as well as normalized designed circuits and assembling technology to ensure product progressiveness, practical use, and quality stability. This standard product may widely be used for all kinds of application. Our design team, under the precondition ensuring quantity and application, may re-design or improve to meet special requirements of application at the user’s specific requests.
Details of G12 male thread pressure transducer:
Technical Data | |||
Measuring range |
-100kPa ~ 0 ~ 5KPa … 100MPa |
||
Overloading capacity |
Two times of FS pressure (where over pressure for 100MPa is designed with 1.1 times of FS pressure) |
||
Pressure type |
Gauge pressure or absolute pressure |
||
Medium to be measured |
The gas or liquid compatible with 316 stainless steel |
||
Overall accuracy |
± 0.25% FS |
± 0.4% FS |
|
Long-term stability |
Typical: ± 0.1% FS |
Maximum: ± 0.2% FS |
|
Zero point temperature drifting |
Typical: ± 0.2% FS |
Maximum: ± 0.05% FS / ℃ |
|
Sensitivity temperature drifting |
Typical: ± 0.2% FS |
Maximum: ± 0.05% FS / ℃ |
|
Operating temperature |
-40 ~ +85 ℃ |
||
Compensating temperature |
-10 ~ +60 ℃ |
||
Range of power supplying |
12 ~ 36V DC (24V DC generally) |
||
Signal output |
4 ~ 20mA / 1 ~ 5V DC / 0 ~ 5V DC / 0.5 ~ 4.5V DC |
||
Load resistance |
≤ (U-12) / 0.02Ω |
||
Enclosure protection degree |
IP 67 (Cable Type) IP 65 (Socket Type) |
||
Safe explosion - proof |
Ex ia II CT5 |
||
Weight |
Approx. 0.5kg |
||
Vibrating tolerance |
≤ ± 0.01% FS ( Axles X, Y , Z, 200Hz / g ) |
||
Response time |
≤2 ms |
||
Dielectric strength / RF degree |
EN 50081–1; EN 50082–1; IEC 61000–4–3 |
||
Pressure connection |
See product selection table and process connecting drawing (may be defined by the customer). |
||
Electrical wiring connection |
See product selection table and process connecting drawing (may be defined by the customer). |
||
Port and Enclosure |
Stainless steel 1Cr18Ni9Ti |
||
O-ring |
Fluorubber |
||
Sensor Membrane |
Stainless steel 316L |
||
Resolution |
Infinite small (theoretical) 1 / 100000 (general) |
||
|
|
|
|
|
|
|
|
